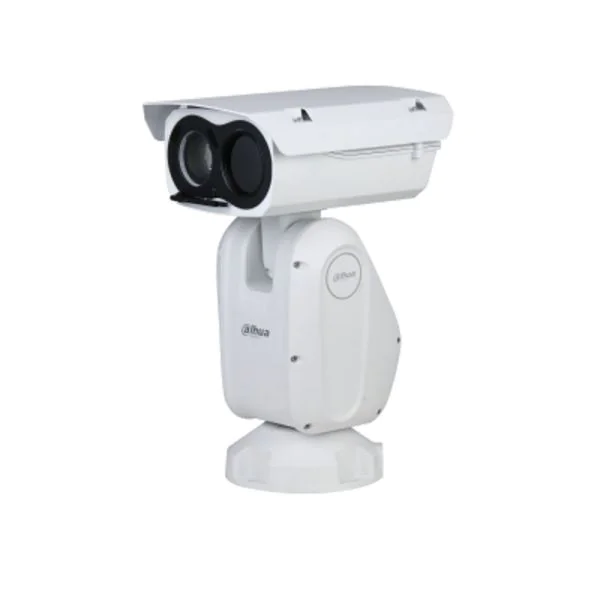

The Dahua TPC-PT8421A is a cutting-edge Thermal Network Hybrid Pan & Tilt Camera designed to deliver exceptional surveillance capabilities in varied environments. Combining thermal imaging with high-definition video, this sophisticated camera ensures reliable and advanced monitoring solutions for security-conscious organizations.
Quick Spec
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Detector |
| Resolution | 640 �� 512 Thermal; 2MP HD Optical |
| Lens | 35mm Thermal; 4.5C135mm Optical Zoom |
| Pan & Tilt | Pan 360�� Continuous; Tilt 90�� |
| Ingress Protection | IP66 |
Product Features
- Dual thermal and optical channels for comprehensive surveillance
- Advanced thermal imaging technology for detection in total darkness
- High-resolution 2MP optical camera with 30x zoom
- Intelligent video analytics including tripwire, intrusion, and heat map
- Robust design with IP66 rating, ideal for harsh environments
Product Applications
- Perimeter security for large industrial sites
- Border and coastal surveillance to monitor unauthorized activities
- Fire detection in critical infrastructure environments
Supported Options
| Wall Mount | DS-1292ZJ |
| Ceiling Mount | DS-1296ZJ |
| Power Supply | PFB123-E |
Compare to Similar Items
| Model | Differences |
| Dahua TPC-SD8420 | Fixed focus thermal lens, lower resolution |
| Dahua TPC-PT8621A | Enhanced resolution, greater optical zoom |
| Dahua TPC-BF5400 | Bolt style, no pan & tilt function |
Get more information
For further details about the Dahua TPC-PT8421A, its price, and to access the TPC-PT8421A datasheet, please contact us via Live Chat or email at sales@router-switch.com. Check Dahua TPC-PT8421A price and TPC-PT8421A datasheet, buy Dahua TPC-PT8421A with best price and fast shipping. Free Live Chat is supported.
Dahua TPC-PT8421A Specification
TPC-PT8421A Specifications |
|
| Brand | Dahua |
| Product Name | TPC-PT8421A |
| Type | Thermal Network Hybrid Pan & Tilt Camera |
| Sensor Type | Uncooled VOx (Vanadium Oxide) |
| Lens | 35mm, F1.0 |
| Resolution | 400 x 300 Thermal, 1080p Optical |
| Frame Rate | 30 fps |
| Sensitivity | 40mK |
| Zoom | 16x Digital Zoom |
| Pan Range | 360° endless |
| Tilt Range | -90° to +90° |
| Video Compression | H.265, H.264, MJPEG |
| Ingress Protection | IP66 |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Power Supply | 24V AC / PoE+ |
| Power Consumption | Max 48W |
| Network Protocols | HTTP, HTTPS, TCP, UDP, RTP, RTSP, DHCP, DNS, DDNS, NTP, SMTP, SNMP, FTP, IP Filter, QoS, UPnP, ICMP, IGMP, 802.1x, IPv6 |
| Audio Input | 1-channel, 3.5mm Jack |
| Audio Output | 1-channel, 3.5mm Jack |
| Storage | MicroSD up to 256GB |
| Alarm Input | 2 channels |
| Alarm Output | 1 channel |
