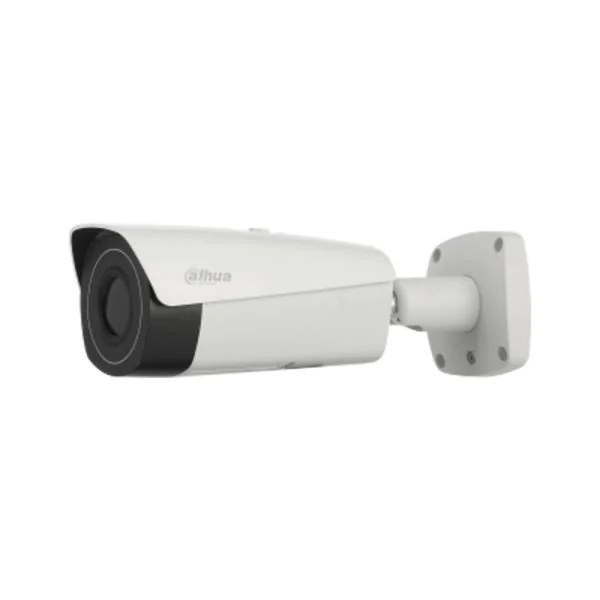

The Dahua TPC-BF5401 Thermal Network Bullet Camera is a state-of-the-art security device designed to deliver unrivaled thermal imagery in various environments. This advanced camera ensures exceptional performance and accuracy, making it an ideal choice for critical surveillance applications. The TPC-BF5401 is equipped with cutting-edge technology to provide precise thermal imaging and reliable monitoring solutions.
Quick Spec
| Brand | Dahua |
| Model | TPC-BF5401 |
| Resolution | 400 x 300 |
| Lens | 13mm/25mm |
| Detection Range | Up to 1,200 meters |
Product Features
- High-resolution thermal imaging for clear and accurate surveillance.
- Advanced image processing technology to enhance detection reliability.
- Flexible lens options: 13mm or 25mm for different monitoring needs.
- Wide detection range of up to 1,200 meters.
- Robust and weather-resistant design for outdoor applications.
Product Applications
- Perimeter security for critical infrastructure such as airports and power plants.
- Intrusion detection for industrial and commercial properties.
- Fire prevention and detection in high-risk areas.
Supported Options
| Mounting Bracket | PFA153 |
| Junction Box | PFA137 |
| SD Card | MicroSD32 |
Compare to Similar Items
| Model | Difference |
| Dahua TPC-BF5301 | Lower resolution, shorter detection range. |
| Dahua TPC-BF5601 | Higher resolution, advanced AI capabilities. |
| Dahua IPC-HFW5231E-Z12 | Optical camera only, no thermal imaging. |
Get more information
Contact us through Live Chat or email us at sales@router-switch.com for further information about the Dahua TPC-BF5401 and its price. Check ‘Dahua TPC-BF5401’ price and ‘TPC-BF5401 datasheet’, buy ‘Dahua TPC-BF5401 series’ with best price and fast shipping. Free Live Chat is supported.
Dahua TPC-BF5401 Specification
TPC-BF5401 Specifications |
|
| Brand | Dahua |
| Product Name | TPC-BF5401 |
| Type | Thermal Network Bullet Camera |
| Thermal Sensor | Uncooled VOx Microbolometer |
| Resolution | 400 x 300 |
| Lens | 7.5 mm/F1.0; 13 mm/F1.0 |
| Spectral Range | 8°m to 14°m |
| NETD | ° 40mK |
| Focus Control | Fixed |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 30fps@4MP/1080P |
| Day/Night | Auto(ICR) / Color / B/W |
| Angle of View | 37.4° ° 28.0° / 20.4° ° 15.3° |
| Min. Illumination | 0.01 Lux@F1.0 (Color), 0.001 Lux@F1.0 (B/W) |
| Ingress Protection | IP67 |
| Power Supply | DC 12V, PoE (802.3af) |
| Power Consumption | Max 12W |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | °95% RH |
| Dimensions | 273.1mm ° 104mm ° 95.7mm |
