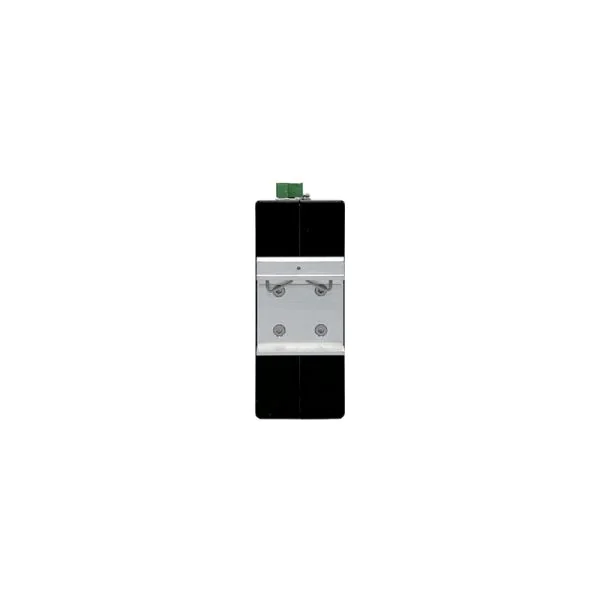

10-Port Layer 2 Industrial Switch made from aluminum alloy, support 2 100/1000BaseX SFP ports (SFP module not included) + 8 PoE 10/100/1000BaseT ports, DIN-Rail mounted. IP40 Protection Class. Oper- ating temperature -40°C ~ +75°C. Dual 48~54VDC redundant power inputs.
Quick Spec
Table 1 shows the quick spec of the TOM1000-BHTB10P2080P.
| Model | TOM1000-BHTB10P2080P |
| Interface Configuration | 2 x 100/1000BaseX SFP 8 x 10/100/1000BaseT |
| Input Voltage | 48 ~ 54VDC, dual inputs |
| Fansless | Yes |
| Backplane Bandwidth | 20 Gbps |
| Installasion | DIN-rail mounting |
| IP Rating | IP40; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 52mm x 140mm x 110mm |
| 2.05 inch x 5.51 inch x 4.33 inch | |
| Weight | 0.4 kg |
| 0.89 lb | |
| MTBF | ??00,000H |
| Operating Temperature | -40 °C~ 75 °C |
| -40°F ~ 167°F | |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
Product Features
Up to 56Gbps backplane bandwidth
Wide and varied power supply range
Non-rust aluminum alloy and torx screws
Support network management
All ports support line speed forwarding and automatic turnover, supporting long distance transmission
Support uploading and downloading configuring files
PoE models support IEEE 802.3af/at compliant PoE
Each PoE port support IEEE 802.1af and 802.1at
Lightning protection: power supply port ±4KV, RJ45 port ±4KV
Small and easy to install, plug and play without configuration
Fanless design, wide working temperature and quiet operation
MTBF ??300,000 hours
Supported Options
Table 2 shows the supported options of the TOM1000-BHTB10P2080P.
| MDP-IE150P-54 | 150W Industrial DIN-Rail Power Supply for PoE/PoE+ (2250V Isolation) Input: 110/220 VAC/VDC (90~264VAC/88~300VDC) Output: 54VDC/2.78A Operating Temperature from -40°C to +75°C with conventional cooling |
| HKShanhai Group Limited-MGIGA-GLX | Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM |
| HKShanhai Group Limited-MGIGA-GEX | Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM |
| HKShanhai Group Limited-MGIGA-GZX | Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM |
| HKShanhai Group Limited-MGIGA-GSX-850 | Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M |
| HKShanhai Group Limited-MGIGA-GSX | Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM |
Get More Information
Do you have any questions about the TOM1000-BHTB10P2080P price?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited TOM1000-BHTB10P2080P Specification
| TOM1000-BHTB10P2080P Specification | |
| Backplane Bandwidth | 20 Gbps |
| Processing Type | Store-and-Forward |
| MAC Table Size | 8K |
| Packet Buffer Size | 4.1Mbti |
| Exchange Rate | 148,800 pps/100M ports; 1,488,000 pps/1000M ports |
| Management Mode | Browser, Console, Telnet, SSH 2.0, Syslog, NTP/SNTP, STD-62 SNMPv3, SNMPv1, SNMPv2, FTP/TFTPÂ |
| Diagnosis Mode | |
| Redundancy | RSTP, STP, MSTP, Port Trunking, HKShanhai Group Limited-Ring |
| Time Synchronization | NTP |
| Others | 4K VLANS, IPv4/IPv6 Multicast, storm control, support Jumbo Frame |

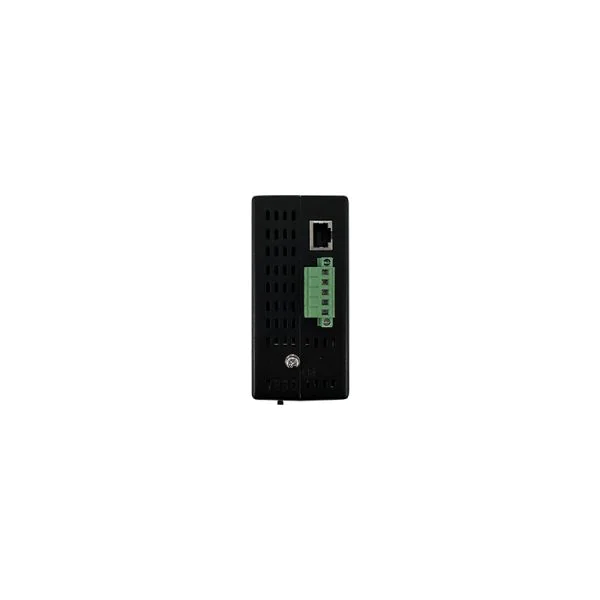

| Connection | 1 removable 5-contact terminal block |
| Input Voltage | 9.6 ~ 60VDC & 18 ~ 30VAC, dual inputs |
| Power Consumption | 10W（without POE??/td> |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Installasion | DIN-rail mounting |
| Housing | Aluminum Alloy Housing |
| IP Rating | IP40; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 52mm x 140mm x 110mm |
| 2.05 inch x 5.51 inch x 4.33 inch | |
| Weight | 0.4 kg |
| 0.89 lb | |
| MTBF | ??00,000H |
| Storage Temperature | -40 ??~ 85 ??/td> |
| -40??~ 185??/td> | |
| Operating Temperature | -40 ℃~ 75 ??/td> |
| -40??~ 167??/td> | |
| Ambient Relative Humidity | 5 % ~ 95% (non-condensing) |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-31 |
| Circuit Board | Approved by IPC |
| EMI | FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A |
| EMS | IEC(EN)61000-4-2, Class 4 IEC(EN)61000-4-3, Class 3 IEC(EN)61000-4-4, Class 4 IEC(EN)61000-4-5, Class 4 IEC(EN)61000-4-6, Class 3 IEC(EN)61000-4-8, Class 5Â |
| Product Safety | EN/IEC62368-1 |
| EMC | EN 55032 EN 55035 EN IEC61000-3-2 EN61000-3-3 FCC Part 15 Subpart B Class A |
| Others | Test Report from Ministry of Public Security, Network Access License, RoHS |
