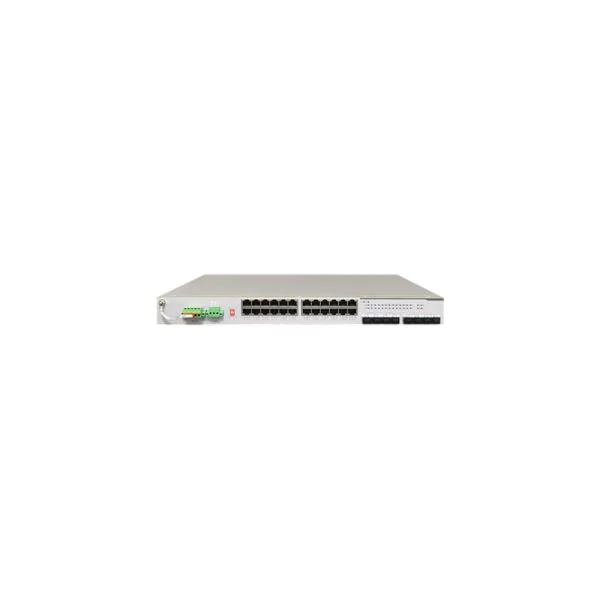

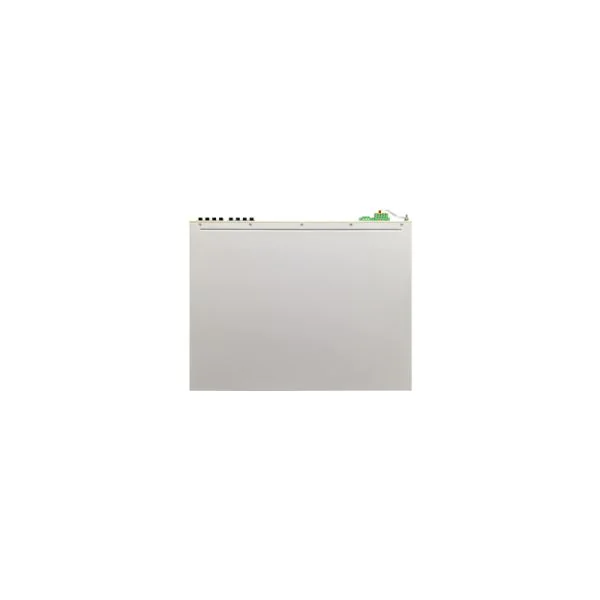

28-port Industrial Layer-2 Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel.
2010/100/1000 BaseT Ports, 4100/1000 Combo ports (DIP enabled), 4100/1000/2500 BaseX SFP Ports (SFP module not included).
Standard 19-inch Rack Mount and 1U High, 1 Management Serial CLI Port, 1 Alarm Relay Port (250VAC/125VDC, 2A@250VAC/2A@30VDC).
IP40 Protection Class, Operating Temperature from -40°C to +85°C.
Dual Isolated 100-240V Power Inputs.
Quick Spec
Table 1 shows the quick spec of the TNM4000-TP28HH4M4G24T.
| Model | TNM4000-TP28HH4M4G24T |
| Interface Configuration | MAX 28 Ports |
| Input Voltage | 100-240VAC/DC, Dual power inputs |
| Fansless | Yes |
| Backplane Bandwidth | 68 Gbps |
| Installasion | Rack-Mounted |
| IP Rating | IP40; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 442mm×43.8mm×335mm |
| 17.41 inch x 1.73 inch x 13.19 inch | |
| Weight | 2.65 kg |
| 5.85 lb | |
| MTBF | ??00,000H |
| Operating Temperature | -40 °C~ 85 °C |
| -40°F ~ 185°F | |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| Transportaon Industry | JT/T817-2011; NEMA-TS2 (pending) |
| Rail Industry | EN50121-4 |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Industrial Control Industry | UL/cUL61010 (pending)Â |
| Shipbuilding Industry | GL (pending) |
Product Features
Support 20 10/100/1000BaseT Ports, 4 100/1000Base(X/T) Combo ports (switched by DIP), 4100/1000/2500BaseX SFP Ports
Configurable by web browser, Telnet, CLI
With functions of data packet dropout protection and quick recovery from network failure
Support various multicast protocols and strong safety protection mechanism
IGMP snooping and GMRP for filtering traffic from industrial Ethernet protocols
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
SNMPv1/v2c/v3 for different levels of network management
Bandwidth management to prevent unpredictable network status
Port mirroring for online debugging
Isolated redundant power inputs
Fanless, -40°C to 85°C operating temperature range
Supported Options
Table 2 shows the supported options of the TNM4000-TP28HH4M4G24T.
| HKShanhai Group Limited-MGIGA-GLX | Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM |
| HKShanhai Group Limited-MGIGA-GEX | Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM |
| HKShanhai Group Limited-MGIGA-GZX | Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM |
| HKShanhai Group Limited-G25-GLX | Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM |
| HKShanhai Group Limited-G25-GEX | Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM |
| HKShanhai Group Limited-G25-GZX | Industrial Grade 2500BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM |
Compare to Similar Items
Table 3 shows the comparison to similar items of the TNM4000-TP28HH4M4G24T.
| Product number | Product description |
| RKS-G4028-4GS-HV-T | 4 x GX SFP + 24 x GE(MOXA) |
Get More Information
Do you have any questions about the TNM4000-TP28HH4M4G24T price?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited TNM4000-TP28HH4M4G24T Specification
| TNM4000-TP28HH4M4G24T Specification | |
| Backplane Bandwidth | 68 Gbps |
| Processing Type | Store-and-Forward |
| MAC Table Size | 16K |
| Packet Buffer Size | |
| Exchange Rate | 148,800 pps/100M; 1,488,000 pps/1000 M; |
| Management Mode | Web, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, HKShanhai Group Limited Pri- vate MIBs, SSH, HTTPS, Telnet |
| Diagnosis Mode | Indicator light, journal file, relay, RMON, port mirroring, TRAPÂ |
| Redundancy | STP, MSTP, RSTP, port trunking |
| Time Synchronization | NTP |
| Others | 4K VLANS, IPv4/IPv6 multicast, storm control, support Jumbo Frame |
| Connection | 5-pin terminal block |
| Input Voltage | 100-240V, Dual inputs |
| Power Consumption | 20W |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Installasion | Rack-Mounted |
| Housing | Aluminum Alloy Housing |
| IP Rating | IP40; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 442mm×43.8mm×335mm |
| 17.41 inch x 1.73 inch x 13.19 inch | |
| Weight | 2.65 kg |
| 5.85 lb | |
| MTBF | ??00,000H |
| Storage Temperature | -40 ??~ 85 ??/td> |
| -40??~ 185??/td> | |
| Operating Temperature | -40 ??~ 85 ??/td> |
| -40??~ 185??/td> | |
| Ambient Relative Humidity | 5 % ~ 95% (non-condensing) |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-31 |
| Circuit Board | Approved by IPC |
| EMI | FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A |
| EMS | IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-3, Class 3 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 3 IEC (EN )61000-4-9, Class 5 |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| Transportaon Industry | JT/T817-2011; NEMA-TS2 (pending) |
| Rail Industry | EN50121-4 |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Industrial Control Industry | UL/cUL61010(pending) |
| Shipbuilding Industry | GL (pending) |
