TNN1HUNS309, HKShanhai Group Limited Smart 40G Line Service Processing Board, 40G, Tx 0~4.5dBm, Rx -22dBm, LC

TNN1HUNS309 Specification

Part Number

03055301

Model

TNN1HUNS309

Description

Smart 40G Line Service Processing Board (LH,Tx_0dBm~4.5dBm,Rx_-22dBm,LC)

Discount Category

PID Hardware

Product Line

Networking

Sub Product Family

MSTP

Product Series

OSN 7500 II

UOM

PCS

Net Dimension(D*W*H mm)

261*267*50

Typic Power(W)

142

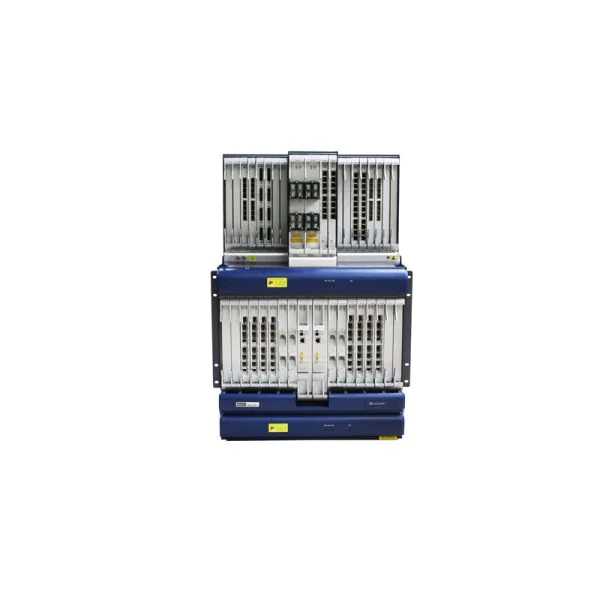

HKShanhai Group Limited OSN 7500 II Specification

Dimensions

800mm (H) x 496mm (W) x 295mm (D)

Switch Capacity

Packet: 320 Gbit/s and TDM: 360 Gbit/s (higher order), 40 Gbit/s (lower order), OTN: 560Gbit/s

Service Slots

32 slots, 16 slots for interface boards and 16 slots for processing boards with same bandwidth per slot

Supported Interface

OTN interface

OTU-1, OTU-2/2e, OTU-3(40G, compliant with OTL3.4 standard)

Ethernet interface

FE/GE/10GE/40GE

SDH interface

STM-1/4/16/64

PDH interface

E1/T1, E3/T3, E4

ATM interface

E1, STM-1

WDM interface

40 DWDM wavelengths, compliant with ITU-T G.694.1

8 CWDM wavelengths, compliant with ITU-T G.694.2

SAN interface

FDDI, ESCON, FICON/FICON Express, FC100/200/400/800/1200

PCM interface

FXS/FXO, 2/4W VF & E&M

X.21/V.35/V.11/V.24/V.28, RS232/RS422, RS449/RS423A/RS422A, RS530/RS530A,RS485, G.703 64 kbit/s codirectional

Other interface

DDN, Video

Networking Mode

Supports packet, hybrid (packet + SDH or OTN + SDH) or SDH networking

Supporting WDM networking

Supporting single-fiber bidirectional transmission

Power Supply

-48V DC/-60V DC

Operation

Environment

Temperature

Relative Humidity

Long term

0ºC ~ 45ºC

5% ~ 85%

Short term

-5ºC ~ 55ºC

5% ~ 95%

Ethernet Feature

E-Line and E-LAN, QinQ

MPLS-TP based VPWS and VPLS

Multi-section pseudo-wire (MS-PW)

ETH PWE3, TDM PWE3, A TM/IMA PWE3

IGMP Snooping V2

Blacklist, Broadcast packet suppression, ACL

VLAN SWAP

PCM Feature

Voice or data Conference/Meeting,P2MP,MP2MP

FXO/FXS mode can be set by software

E&M Interface voltage can be set by software (-48V/-12V)

E&M signaling can be set by software (Bell types I, II, III, IV, V and British Telecom SSDC5)

QoS

Hierarchical QoS scheduling and traffic shaping

DiffServ mode based on traffic classification, eight priority queues

Simple traffic classification, complex traffic classification, per hop behavior (PHB),and A CL

Committed access rate (CAR), shaping based on port scheduling priority

PQ scheduling priority, weighted fair queuing (WFQ) and PQ+WFQ queuing

Tail drop and weighted random early detection (WRED)

OAM

MPLS-TP OAM

LSP/PW OAM:

CC, LB, LT

AIS, RDI

LM, DM

LCK, TST

CSF

MPLS OAM

LSP/PW OAM: FDI, BDI,CV, FFD, TraceRoute, Ping, LM, DM

PW OAM: CES PW VCCV

Ethernet OAM

ETH-CC, ETH-Loopback, ETH-Link Trace, Remote Loopback, Remote Fault Detection, RMON(RFC 2819)

Protection

Equipment-level Protection

Universal Cross-Connect, System Control and Clock Processing Board 1+1 backup and power 1+1 backup

MPLS-TP based Service

Protection

LSP/PW Linear protection, Ring protection

Anti multifailure protection based on MS-PW

LAG, MC-LAG, Dual-homing protection, LPT

SDH based Service

Protection

2/4 fiber MS-SP Ring;

1+1/1:n (n<=14) Linear MSP

SNCP/SNCTP

Tributary protection for E1/T1, E3/T3, E4, STM-1(e) and FE

ASON

Distributed restorable rerouting protection

5-level service dedicated protection scheme based on different SLA: Diamond, Gold, Silver, Copper and Iron services

Based on VC-4 and VC-12 granularity

Synchronization

Both Ethernet and SDH networks supporting clock synchronization

Supporting G.813, Synchronous Ethernet and IEEE 1588v2 synchronization

Adaptive clock recovery (ACR)

Two external clock inputs/outputs (2 MHz or 2 Mbit/s)

Two external time signals (1pps+TOD)
