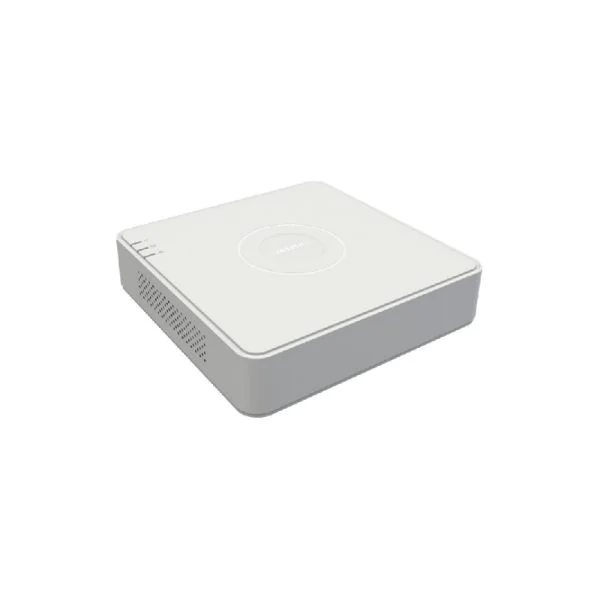

The Hikvision DS-7104HUHI-K1 is a versatile 4-channel 5 MP Mini 1U H.265 DVR, designed to offer advanced surveillance capabilities for both residential and commercial applications. Its compact size and powerful features make it an ideal choice for those seeking reliable and high-quality video recording and management solutions.
Quick Spec
| Brand | Hikvision |
| Model | DS-7104HUHI-K1 |
| Channels | 4 |
| Video Compression | H.265 |
| Resolution | 5 MP |
Product Features
- Support for H.265+/H.265/H.264+/H.264 video formats
- Connectable to HDTVI, AHD, CVI, and analog cameras
- 5 MP resolution recording
- HDMI and VGA output at up to 1920 1080 resolution
- Remote management through Hik-Connect
Product Applications
- Residential security monitoring
- Retail store surveillance
- Office building video recording
Supported Options
| Accessory | Model |
| External Hard Drive | Hikvision DS-HDD15T |
| Power Adapter | Hikvision DS-PA1202 |
| IR Remote Control | Hikvision DS-IR802 |
Compare to Similar Items
| Model | Difference |
| DS-7108HUHI-K1 | Supports 8 channels |
| DS-7204HUHI-K1 | Higher storage capacity, supports more HDDs |
| DS-7604NI-K1/4P | Network video recorder, supports PoE |
Get more information
For further information about the Hikvision DS-7104HUHI-K1, including pricing and datasheet details, please contact us via Live Chat or at sales@router-switch.com. Check “Hikvision DS-7104HUHI-K1 price” and “DS-7104HUHI-K1 datasheet,” and buy “Hikvision DS-7104HUHI-K1 4-ch 5 MP Mini 1U H.265 DVR” with the best price and fast shipping. Free Live Chat support is available.
Hikvision DS-7104HUHI-K1 Specification
DS-7104HUHI-K1 Specifications |
|
| Brand | Hikvision |
| Product Name | DS-7104HUHI-K1 |
| Channels | 4-channel |
| Video Compression | H.265 |
| Maximum Resolution | 5 MP |
| Form Factor | Mini 1U |
| Video Input Interface | BNC Interface (1.0Vp-p, 75 ohms) |
| Video Output | HDMI/VGA Output |
| Audio Input | 1-ch RCA |
| Audio Output | 1-ch RCA |
| Two-way Audio | 1-ch, RCA (uses audio input) |
| Synchronous Playback | 4-ch |
| Storage Interface | 1 SATA interface |
| HDD Capacity | Up to 6 TB capacity |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet interface |
| USB Interface | 2 USB 2.0 interfaces |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | 8 W (without HDD) |
| Operating Temperature | -10 C to 55 C (14 F to 131 F) |
| Operating Humidity | 10% to 90% |
| Dimensions (W x D x H) | 200 x 200 x 45 mm (7.87 x 7.87 x 1.77 inches) |
