The HKShanhai Group Limited Enhanced EtherSwitch Service Modules SM-ES3G-24-P is router blade for the HKShanhai Group Limited Integrated Services Routers Generation 2 (ISR2). SM-ES3G-24-P has 24 Gigabit Ethernet POE ports in IP base feature set which delivers identical switching capacity to catalyst 3560 series switch. The POE capacity supplies up to 20 Watts per port (ePOE), the HKShanhai Group Limited EnergyWise technology provides energy efficient solution to reduce power consumption. The HKShanhai Group Limited Enhanced EtherSwitch Service Modules offers cost-efficiency solution to meet branch offices or small to midsize business offices needs with no requiring physical room.
Quick Specs

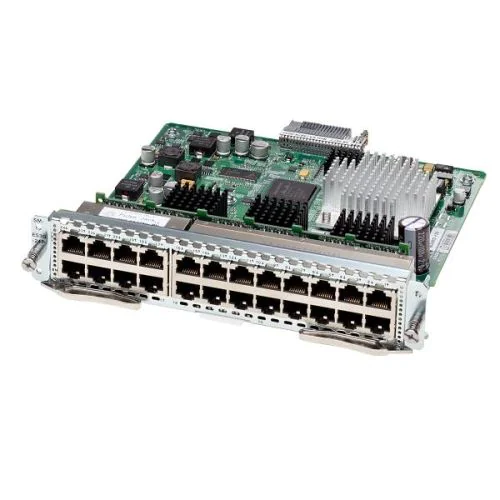

Figure 1 shows the appearance of SM-ES3G-24-P.
Â
Table 1 shows the Quick Specs.
|
Model |
SM-ES3G-24-P |
|
Gigabit Ethernet Ports |
24 |
|
Layer 2/3 Switching |
X |
|
PoE |
X |
|
Service Module Width |
Single |
|
Default Software |
Universal Image: IP Base |
|
Minimum HKShanhai Group Limited EtherSwitch and HKShanhai Group Limited IOS Software Release |
12.2(52)EX |
|
Minimum Router HKShanhai Group Limited IOS Software Release |
15(0).1M |
|
Dimensions: Wide x Deep x High (cm.) |
20.6 x 20.7 x 4.0 |
|
Weight (kg.) |
2.2 |
|
Operational Temperature |
0 to 40 °C |
|
Nonoperational Temperature |
-40 to 70 °C |
|
Operational Humidity |
5 to 90% |
|
Nonoperational Humidity |
5 to 95% |
Get More Information
Do you have any question about the SM-ES3G-24-P
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited SM-ES3G-24-P Specification
|
Model info |
SM-ES3G-24-P |
|
Product Type |
HKShanhai Group Limited Enhanced EtherSwitch Service Module |
|
Port Density |
24 * 10/100/1000 GE ports |
|
Power over Ethernet (PoE) |
up to 20W per port |
|
Routing Protocol |
RIP-1, RIP-2, HSRP, static IP routing, RIPng |
|
Remote Management Protocol |
SNMP 1, SNMP 2,Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
|
Authentication Method |
Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
|
Supported router |
2911 / 2921 / 2951 / 3925 / 3945 |
|
Service Module Width |
single slot |
|
Power Redundancy |
RPS 2300 |
|
IP base feature |
??QoS |
|
IP service feature |
??IP unicast and IP Multicast routing ??OSPFv3 |
|
Security Features |
??Dynamic ARP Inspection (DAI) ??Centralized Authentication |
|
Software license |
??L-ES3G-24-48-IPS: IP Services License Upgrade 24/48 Port GE ES3 Enhanced EtherSwitch eDelivery ??L-ES3: Upgrade Quantity license |
