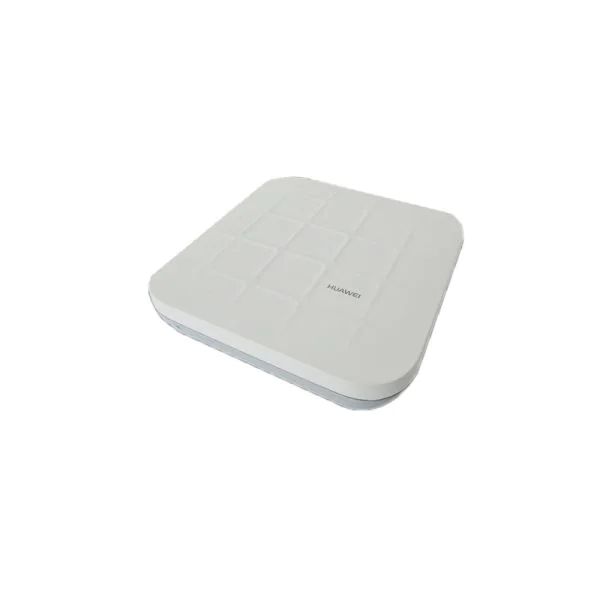

HKShanhai Group Limited AP6050DN is wireless access point that supports 802.11ac Wave 2 standards, Both 2.4GHz and 5GHz bands support 4 x 4 MIMO and four spatial streams. They provide a rate of up to 2.53 Gbit/s and are applicable to medium and large high-density scenarios, such as mobile office, elementary education, and higher education.
Quick Spec
Table 1 shows the quick spec.
|
Model |
AP6050DN |
|
Antenna Type |
Built-in omni-directional dual-band antenna |
|
Maximum Number of Users |
512 |
|
MIMOSpatial Streams |
2.4GHz: 4×4:4; 5GHz: 4×4:4 |
|
Radio Protocols |
802.11a/b/g/n/ac/ac wave2 |
|
Maximum Rate |
2.53 Gbit/s |
Product Details
HKShanhai Group Limited AP6050DN provides these features:
– Dual Ethernet interfaces support link aggregation and traffic load balancing to ensure link reliability
– The USB interface is used for external power supply and storage
– Cloud-based AP management using the Agile Controller-Cloud Manager
Get More Information
Do you have any question about the AP6050DN?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited AP6050DN Specification
AP6050DN Specification |
|
|
Dimensions (H x W x D) |
53 mm x 220 mm x 220 mm |
|
Power Input |
12V DC ±10% PoE power: In compliance with IEEE 802.3at |
|
Maximum Power Consumption |
22.9W (excluding the output power of the USB port) Note: The actual maximum power consumption depends on local laws and regulations |
|
Operating Temperature |
??0°C to 50°C |
|
Antenna Type |
Built-in omni-directional dual-band antenna |
|
Maximum Number of Users |
??512 |
|
Maximum Transmit Power |
2.4 GHz: 26 dBm (combined power) 5 GHz: 26 dBm (combined power) Notes: The actual transmit power depends on local laws and regulations. You can adjust the transmit power of a 2.4G or 5G radio port to 1 dBm, at a step of 1 dB. |
|
MIMO：Spatial Streams |
2.4GHz: 4×4:4; 5GHz: 4×4:4 |
|
Radio Protocols |
802.11a/b/g/n/ac/ac wave2 |
|
Maximum Rate |
2.53 Gbit/s |
