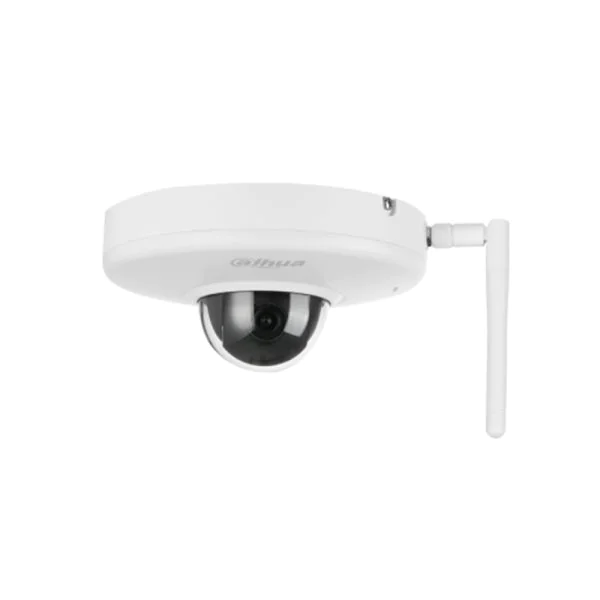

The Dahua SD12203T-GN-W is a state-of-the-art 2MP 3x Starlight PTZ Wi-Fi Network Camera designed to deliver superior image quality and advanced surveillance features. This compact and versatile PTZ camera offers exceptional low-light performance, wireless connectivity, and powerful zoom capabilities, making it an ideal solution for various monitoring applications.
Quick Spec
| Resolution | 2 Megapixels |
| Optical Zoom | 3x |
| Connectivity | Wi-Fi |
| Low-light Performance | Starlight Technology |
| Pan/Tilt Range | Pan: 0 ~ 355, Tilt: -10 ~ 90 |
Product Features
- 2-megapixel high-resolution imaging
- 3x optical zoom for detailed close-ups
- Starlight technology for excellent low-light performance
- Wireless connectivity for flexible installation
- Enhanced pan/tilt functionality for wide coverage
Product Applications
- Residential security – monitor entrances and surroundings with ease.
- Retail surveillance – keep an eye on store activity and deter theft.
- Office monitoring – ensure the security of your workplace during and after business hours.
Supported Options
| Wall Mount Bracket | PFB203W |
| Ceiling Mount Bracket | PFB204W |
| Junction Box | PFA137 |
Compare to Similar Items
| Model | Differences |
| Dahua SD12200T-GN | No Wi-Fi connectivity |
| Dahua SD22403T-GN-W | 4MP resolution, 4x zoom |
| Dahua SD1A203T-GN-W | Mini PTZ, less powerful zoom |
Get more information
For more details about the Dahua SD12203T-GN-W, contact us via Live Chat or at sales@router-switch.com. Check “Dahua SD12203T-GN-W price and SD12203T-GN-W datasheet, buy Dahua SD12203T-GN-W Network Camera with the best price and fast shipping. Free Live Chat is supported.
Dahua SD12203T-GN-W Specification
SD12203T-GN-W Specifications |
|
| Brand | Dahua |
| Model | SD12203T-GN-W |
| Image Sensor | 1/2.8�� 2 Megapixel progressive scan CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Day/Night | Auto (ICR) / Color / B/W |
| Lens | 2.7mm ~ 8.1mm, 3x optical zoom |
| Field of View | H: 112.5�� ~ 46.2�� |
| Min. Illumination | 0.005Lux/F1.6 (Color), 0.0005Lux/F1.6 (B/W), 0Lux/F1.6 (IR on) |
| IR Distance | Up to 15m (49ft) |
| Pan/Tilt Range | Pan: 0�� ~ 355��; Tilt: 0�� ~ 90�� |
| Pan Speed | Configurable, from 0.1��/s to 100��/s |
| Tilt Speed | Configurable, from 0.1��/s to 60��/s |
| Compression | H.265, H.264, MJPEG |
| Resolution | 1080P (1920×1080), 720P (1280×720), D1 (704×576/704×480), CIF (352×288/352×240) |
| Frame Rate | Main stream: 1080P/720P (1 ~ 25/30fps), sub stream: D1/CIF (1 ~ 25/30fps) |
| Audio Compression | G.711a/G.711u (32kbps) |
| Wi-Fi | IEEE 802.11b/g/n |
| Storage | Micro SD card slot (up to 128GB) |
| Power Supply | DC12V/PoE (802.3af) |
| Power Consumption | Max 10W |
| Operating Temperature | -30��C ~ +60��C (-22��F ~ +140��F) |
| Weather Resistance | IP66 |
