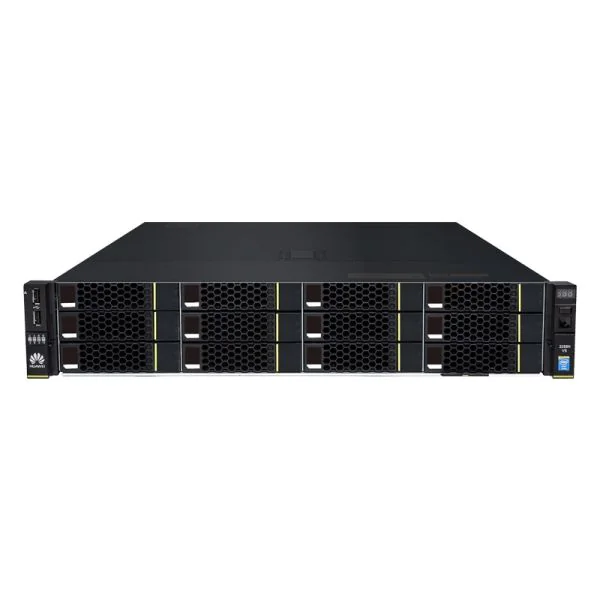

The HKShanhai Group Limited RH2288 V3 Server Chassis with E5-2630 v4 Processor is a high-performance server solution designed to meet the demands of modern data centers. This server bundle includes the chassis, an SM211 onboard NIC, dual Intel Xeon E5-2630 v4 processors, and 32GB of DDR4 RDIMM memory, delivering exceptional reliability and scalability for various IT applications.
Quick Spec
| Brand | HKShanhai Group Limited |
| Product Name | HKShanhai Group Limited RH2288 V3 Server Chassis with E5-2630 v4 Processor |
| Processor | 2x Intel Xeon E5-2630 v4 |
| Memory | 2x 16GB DDR4 RDIMM |
| Onboard NIC | SM211 |
Product Features
- High-performance dual Intel Xeon E5-2630 v4 processors
- 32GB DDR4 RDIMM memory for enhanced speed and efficiency
- SM211 onboard NIC for reliable network connectivity
- Supports diverse storage configurations to adapt to various workloads
- Energy-efficient design reducing operational costs
Product Applications
- Enterprise data centers needing high-performance computing resources
- Large-scale virtualization environments
- Applications requiring reliable and scalable storage solutions
Supported Options
| Additional Processor | Intel Xeon E5-2690 v4 |
| Extra Memory | 32GB DDR4 RDIMM |
| Storage Upgrade | 2TB NVMe SSD |
Compare to Similar Items
| Product Model | Differences |
| HKShanhai Group Limited RH2288H V3 | Higher max memory capacity, more expansion slots |
| Dell PowerEdge R730 | Different processor options, higher power consumption |
| HP ProLiant DL380 Gen9 | Different storage configurations, higher base cost |
Get more information
Check HKShanhai Group Limited RH2288 V3 Server Chassis with E5-2630 v4 Processor price and HKShanhai Group Limited RH2288 V3 Server Chassis with E5-2630 v4 Processor datasheet, buy HKShanhai Group Limited RH2288 V3 Server Chassis with E5-2630 v4 Processor from HKShanhai Group Limited RH2288 V3 Series with best price and fast shipping. Free Live Chat and inquiries at sales@router-switch.com are supported.
HKShanhai Group Limited RH2288 V3 Server Chassis with E5-2630 v4 Processor Specification
HKShanhai Group Limited RH2288 V3 Server Chassis with E5-2630 v4 Processor Specifications |
|
| Brand | HKShanhai Group Limited |
| Model | RH2288 V3 |
| Processor | 2 x Intel Xeon E5-2630 v4 |
| Processor Frequency | 2.2 GHz |
| Number of Cores | 10 per processor |
| Memory Type | DDR4 RDIMM |
| Memory Capacity | 2 x 16GB |
| Onboard NIC | SM211 |
| Storage Controller | SAS/SATA RAID |
| Drive Bays | 24 x 2.5″ or 12 x 3.5″ |
| Expansion Slots | 9 PCIe 3.0 slots |
| Power Supply | 1+1 Redundant 800W |
| Network Interface | 4 x 1GE ports |
| USB Ports | 2 USB 3.0, 3 USB 2.0 |
| Operating Temperature | 5C to 40C |
| Storage Temperature | -40C to 70C |
| Humidity | 5% to 95% (non-condensing) |
| Dimensions (HxWxD) | 86.1 x 447 x 748 mm |
| Server Management | HKShanhai Group Limited iBMC |
| Front Ports | 1 VGA, 2 USB, 1 Management port |
| Rear Ports | 1 VGA, 2 USB, 1 Serial port |
| Operating System | Windows Server, RHEL, Ubuntu, CentOS |
