HKShanhai Group Limited new-generation FusionServer RH8100 V3 flagship rack server delivers industry-leading architecture to provide robust computing performance and extensibility, it is ideal for mission-critical application with superb performance. This 8U rack server supports up to 8 Intel Xeon E7-8800 series processors, 192 DIMMs, 24*2.5??SAS/SATA disks, 18 PCIe 3.0 slots, and 2 LOM mezzanine cards, 8 hot-swappable fan modules in N+ 1 redundancy and 4 hot-swappable power modules, the modularity design and fault diagnosis LCD touch panel provide simple and tool-free maintenance. HKShanhai Group Limited Hi11710 BMC chip build-in provides comprehensive remote device management, monitoring, configuration, and fault locating and analysis.
Quick Specs
Table 1 shows the Quick Specs.
|
Product |
HKShanhai Group Limited FusionServer RH8100 V3 Rack Server |
|
Form factor |
8U rack server |
|
Number of processors |
8 or 4 |
|
Processor model |
Intel® Xeon® E7-8800 v3/v4 series processors |
|
Memory |
192 DIMMs with up to 12 TB memory capacity |
|
Internal Storage |
Hard disk configurations: 8 x 2.5-inch SAS/SATA HDDs, SSDs or NVMes 12 x 2.5-inch SAS/SATA HDDs or SSDs 24 x 2.5-inch SAS/SATA HDDs or SSDs |
|
RAID |
RAID 0, 1, 10, 5, 50, 6, or 60 |
|
LOM Network Ports |
2 LOM mezzanine cards, with up to 8 GE ports or 4 x 10 GE ports |
|
PCIe Expansion |
Up to 18 PCIe 3.0 slots (2 for RAID) |
|
Fan Modules |
8 hot-swappable fan modules in N+1 redundancy mode |
|
Power Supply Units |
4 hot-swappable PSUs in 2+2 redundancy mode 2,000W or 3,000W AC PSUs 2,500W DC PSUs |
|
Management |
Provides independent ports; supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring; integrates a touchscreen LCD diagnosis panel Supports HKShanhai Group Limited eSight management software and integration with third-party management systems, such as VMware vCenter and Microsoft System Center |
|
Operating Temperature |
5ºC to 40ºC (41ºF to 104ºF), ASHRAE Class A3 compliant |
Product Details

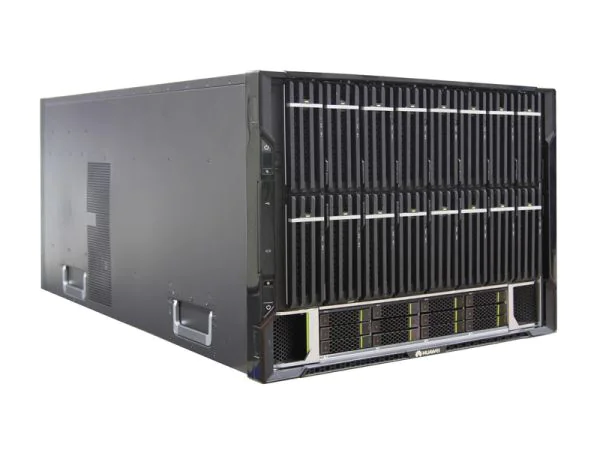

Figure 1 shows the appearance of HKShanhai Group Limited FusionServer RH8100 V3 Rack Server. The RH8100 V3 provides three front I/O modules:
Figure 1-1  shows the RH8100 V3 with the FM-A.
The front I/O module of model A (FM-A) provides performance-balanced configuration. The FM-A supports a maximum of 12 SAS HDDs, SATA HDDs, or SSDs, two RAID controller cards, and six standard PCIe slots on PCIe riser cards. The PCIe slots do not support standard cards that need to connect to external cables, such as, NICs, HBAs, IBs. You can install PCIe SSDs and GPUs in the slots.
Figure 1-2 shows the RH8100 V3 with the FM-B.
The front I/O module of model B (FM-B) provides storage-enhanced configuration. The FM-B supports a maximum of 24 SAS HDDs, SATA HDDs, or SSDs and two RAID controller cards. It does not support standard PCIe slots.
Figure 1-3 shows the RH8100 V3 with the FM-C.
The front I/O module of model C (FM-C) provides low-level configuration. The FM-C supports a maximum of eight SAS HDDs, SATA HDDs, or SSDs and two RAID controller cards. It does not support standard PCIe slots.
Figure 1-4 shows the RH8100 V3 with the FM-D.
The front I/O module of model D (FM-D) supports NVMe PCIe SSDs. The FM-D supports a maximum of eight SAS HDDs, SATA HDDs, SSDs, or NVMe PCIe SSDs and two RAID controller cards, but does not support standard PCIe slots. NVMe PCIe SSDs do not support RAID. If NVMe PCIe SSDs are installed in all disk slots, no RAID controller cards need to be configured on the server.
Figure 2 shows the front panel of HKShanhai Group Limited FusionServer RH8100 V3 Rack Server.
Figure 2-1 RH8100 V3Â front panel with the FM-A.
Note:
|
1 |
Compute modules 1 to 8 from left to right |
2 |
Memory board button/status indicator |
|
3 |
Memory board ATTN indicator |
4 |
Compute module status indicator |
|
5 |
Label (including the ESN label) |
6 |
Hard disk fault indicator |
|
7 |
Hard disk active indicator |
8 |
Hard disk |
|
9 |
FM-A |
10 |
Secondary power button/indicator |
|
11 |
Secondary VGA indicator |
12 |
VGA port |
|
13 |
USB port 2 |
14 |
USB port 1 |
|
15 |
DVD |
16 |
Primary UID button/indicator |
|
17 |
Primary power button/indicator |
18 |
LCD |
Figure 2-2Â Â RH8100 V3Â front panel with the FM-B
|
??/p> |
FM-B |
??/p> |
HDD drawer |
|
??/p> |
HDD LED board (12 hard disk status indicators on the board) |
??/p> |
Label (including the ESN label) |
Figure 2-3Â Â RH8100 V3Â front panel with the FM-C.
|
??/p> |
Label (including the ESN label) |
??/p> |
Hard disk fault indicator |
|
??/p> |
Hard disk active indicator |
??/p> |
Hard disk |
|
??/p> |
FM-C |
– |
– |
Figure 2-4Â Â RH8100 V3Â front panel with the FM-D.
|
??/p> |
Hard disk fault indicator |
??/p> |
Hard disk active indicator |
|
??/p> |
Hard disk |
??/p> |
FM-D |
 Figure 3 shows the back panel of HKShanhai Group Limited FusionServer RH8100 V3 Rack Server.
Note:
|
??/p> |
UID indicator |
??/p> |
Fan status indicator |
|
??/p> |
High-performance Fusion Console-2 (HFC-2) |
??/p> |
Power supply unit (PSU) status indicator |
|
??/p> |
Network interface card (NIC) 2 |
??/p> |
PCIe card 10 (hot-swappable) |
|
??/p> |
PCIe card 9 (hot-swappable) |
??/p> |
PCIe card 8 |
|
??/p> |
PCIe card 7 |
â‘©??/p> |
PCIe card 6 |
|
PCIe card 5 |
PCIe card 4 |
||
|
PCIe card 3 |
PCIe card 2 (hot-swappable) |
||
|
PCIe card 1 (hot-swappable) |
PCIe card status indicator |
||
|
PCIe card power indicator |
PCIe card hot swap button |
||
|
19 |
Network port data transmission status indicator (The 82599 NIC (BC11FXEB) indicator is used as an example.) |
20 |
NIC 1 |
|
21 |
HFC-1 |
22 |
VGA port |
|
23 |
RJ45 serial port |
24 |
iBMC management network port |
|
25 |
USB port |
 |
 |
Compare to Similar Items
Table 3 shows the comparison of HKShanhai Group Limited FusionServer RH8100 V3 Rack Server and HKShanhai Group Limited FusionServer RH5885H V3 Rack Server.
|
Product |
HKShanhai Group Limited FusionServer RH8100 V3 Rack Server |
|
|
Form factor |
8U rack server |
4U rack server |
|
Number of processors |
8 or 4 |
2 or 4 |
|
Processor model |
Intel® Xeon® E7-8800 v3/v4 series processors |
Intel® Xeon® E7-4800 v3/v4 or E7-8800 v3/v4 processors, with an L3 cache capacity of 60 MB maximum |
|
Memory |
192 DIMMs with up to 12 TB memory capacity |
96 DIMMs |
|
Internal Storage |
Hard disk configurations: 8 x 2.5-inch SAS/SATA HDDs, SSDs or NVMes 12 x 2.5-inch SAS/SATA HDDs or SSDs 24 x 2.5-inch SAS/SATA HDDs or SSDs |
8 or 23 x 2.5-inch SAS/SATA HDDs or SSDs, or 8 x 2.5-inch SAS/SATA HDDs + 4 x 2.5-inch NVMes |
Get more information
Do you have any question about the HKShanhai Group Limited FusionServer RH8100 V3 Rack Server
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited RH8100-V3 Specification
HKShanhai Group Limited FusionServer RH8100 V3 Rack Server Specifications |
|
|
Form factor |
8U rack server without holding rails. |
|
Processor |
A maximum of eight Intel® Xeon® E7-8800 v2 (IvyBridge-EX) processors. Each processor supports up to 37.5 MB L3 cache capacity and 15 cores. (Four processors can also be configured.) A maximum of eight Intel® Xeon® E7-8800 v3 (Haswell-EX) processors. Each processor supports up to 45 MB L3 cache capacity and 18 cores. (Four processors can also be configured.) A maximum of eight Intel® Xeon® E7-8800 v4 (Broadwell-EX) processors. Each processor supports up to 60 MB L3 cache capacity and 24 cores. (Four processors can also be configured.) NOTICE: The RH8100 V3 supports memory riser hot swap only when equipped with E7 v2 or E7 v3 processors. |
|
Chipset |
Intel Patsburg PCH-J (C602-J). |
|
Number of DIMM slots |
Up to 192 DIMM slots in 16 memory boards (Each processor supports two memory boards.) E7 v2: supports only DDR3 DIMMs and memory boards. E7 v3/v4: supports only DDR4 DIMMs and memory boards. NOTE: 192 DIMM slots are supported only when you use the 12-DIMM memory boards. |
|
Maximum memory capacity |
12 TB (using 64 GB DIMMs). |
|
Number of hard disks |
FM-A: supports 12 hot-swappable SAS or SATA HDDs or SSDs. FM-B: supports 24 hot-swappable SAS or SATA HDDs or SSDs. FM-C: supports 8 hot-swappable SAS or SATA HDDs or SSDs. FM-D: supports 8 hot-swappable SAS or SATA HDDs, SSDs, or NVMe PCIe SSDs. NVMe PCIe SSDs do not support the hardware RAID function. NOTICE: The RH8100 V3 cannot be equipped with HKShanhai Group Limited ES3000 V3 NVMe PCIe SSDs and Intel NVMe PCIe SSDs at the same time. When HKShanhai Group Limited ES3000 V3 NVMe PCIe SSDs are installed, upgrade the ES3000 V3 driver to the latest version. |
|
RAID support |
A RAID controller card supports either of the following: RAID 0, 1, 10, and 1E. RAID 0, 1, 10, 5, 50, 6, and 60, a maximum cache capacity of 2 GB, and a supercapacitor for power-off protection. One or two RAID controller cards of the same model. |
|
Network port |
The LOM can be flexibly configured to provide either of the following ports: Up to two LOMs. 2-port GE-RJ45/4-port GE-RJ45/2-port 10GE SFP+/2-port 10GE RJ45. |
|
PCIe slot |
Both the FM-A and BIO support standard PCIe slots. Each of the other FM modules supports only two RAID controller card slots, but does not support standard PCIe slots. The server supports 18 PCIe slots when equipped with FM-A. Two PCIe 3.0 x16 and eight PCIe 3.0 x8 slots are on the rear I/O module, used for installing standard cards that need to connect to external cables, for example, NICs, HBAs, and IB cards. Two PCIe 3.0 x16 and four PCIe 3.0 x8 slots are on FM-A by using two PRMs, used for installing standard cards that do not need to connect to external cables, for example: Six HKShanhai Group Limited ES3000 PCIe SSD cards Two HKShanhai Group Limited-certified GPUs Three HKShanhai Group Limited ES3000s and one GPU Two RAID controller card slots are on FM-A. NOTICE: The RH8100 V3 cannot be equipped with HKShanhai Group Limited ES3000 V3 NVMe PCIe SSD cards and Intel NVMe PCIe SSDs at the same time. When HKShanhai Group Limited ES3000 V3 NVMe PCIe SSD cards are installed, upgrade the ES3000 V3 driver to the latest version. |
|
External ports and buttons |
Front panel: two USB 2.0 ports, one Power button, one UID button, one VGA port, and one touchable LCD diagnosis panel Rear panel: Two HFCs. Each provides two USB 2.0 ports, one VGA port, one serial port, one GE management network port, one UID indicator, and one LOM slot. |
|
DVD-ROM drive |
DVD-RW drive with one SATA port. |
|
Graphics card |
The graphics card is integrated into an HFC, and supports 32 MB display memory and a maximum resolution of 1280 x 1024. |
|
PSU |
You can choose 3000 W AC, 2000 W AC, or 2500 W DC PSUs. The PSUs can be configured in 2+2 or 1+1 redundancy mode. |
|
System management |
Supports remote management, WebUIs, virtual KVM, and standard protocols such as IPMI 2.0 and SNMP. |
|
Security |
Power-on password and administrator password. |
|
Technical specifications |
|
|
Chassis dimensions (H x W x D) |
352 mm x 447 mm x 855 mm (13.86 in. x 17.60 in. x 33.66 in.) |
|
Installation space |
The server fits into a universal cabinet complying with the IEC 297 standard. Cabinet width: 19 in. Cabinet depth: > 1000 mm (39.37 in.) Guide rail installation requirements are as follows: L-shaped guide rails: apply only to a HKShanhai Group Limited cabinet. Adjustable guide rails: apply to a cabinet with a distance between the front and rear mounting bars of 543.5 mm (21.40 in.) to 848.5 mm (33.41 in.). Holding rails: apply to a cabinet with a distance between the front and rear mounting bars of 610 mm (24.02 in.) to 914 mm (35.98 in.). |
|
Weight |
Maximum weight: 8-bay server: 152 kg (335.10 lb) 12-bay server: 160 kg (352.74 lb) 24-bay server: 165 kg (363.76 lb) |
|
Packaging material weight: 20 kg (44.10 lb) |
|
|
Temperature |
Operating temperature: 5°C to 40°C (41°F to 104°F) (ASHRAE Class A3 compliant) NOTE: When the 64 GB DIMMs or high-power GPUs are configured, the maximum operating temperature is 35°C (95°F). Storage temperature: -40°C to +65°C (-40°F to +149°F) Temperature change rate: < 20°C/h (36°F/h) Long-term storage temperature: 21°C to 27°C (69.8°F to 80.6°F) |
|
Humidity |
Operating humidity: 10% RH to 90% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing) Humidity change rate: < 20% RH/h Long-term storage humidity: 30% RH to 69% RH (non-condensing) |
|
Altitude |
??3000 m (9842.40 ft) The highest operating temperature decreases by 1°C (1.8°F) with every increase of 300 m (984.24 ft) in an altitude above 900 m (2952.72 ft). At an altitude of over 3000 m (9842.5 ft), only Titanium PSUs can be used. HDDs are not supported at an altitude of over 3000 m (9842.5 ft). |
|
Acoustic noise |
The data listed in the following is the declared A-weighted sound power levels (LWAd) and declared average bystander position A-weighted sound pressure levels (LpAm) when the server is operating in a 23°C (73.4°F) ambient environment. Noise emissions are measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). Idle: LWAd: 6.6 Bels LpAm: 50.0 dBA Operating: LWAd: 6.9 Bels LpAm: 52.7 dBA NOTE: The actual sound levels generated during server operating vary depending on the server configuration, load, and ambient temperature. |
|
Corrosive air pollutant |
Corrosion rate of the copper test piece: < 300 Ă…/month (in compliance with the ANSI/ISA-71.04-2013 gaseous corrosion level G1) Corrosion rate of the silver test piece: < 200 Ă…/month |
|
Particulate pollutant |
The ISO14664-1 Class 8 requirements are met. You are advised to ask a professional organization to monitor particulate pollutants in the equipment room. There is no explosive, conductive, magnetic, or corrosive dust in the equipment room. |
|
Input voltage |
2500 W DC PSU: ??8 V DC to ??0 V DC 2000 W AC PSU: 90 V AC to 264 V AC at 50 Hz or 60 Hz 240 V DC 3000 W AC PSU: 90 V AC to 264 V AC at 50 Hz or 60 Hz 240 V DC NOTE: The recommended current specifications for the external power circuit breaker connected to the RH8100 V3 are as follows: AC: 32 A DC: 63 A 380 V HV DC: 32 A |
|
Input current |
2500 W DC PSU: 63 A 2000 W AC/DC PSU: 10 A 3000 W AC/DC PSU: 16 A NOTE: A 2000 W PSU uses a 25 A internal fuse. |
|
Rated output voltage |
12 V DC |
|
PSU power rating |
The RH8100 V3 supports PSUs in 2+2 or 1+1 redundancy mode. The following lists the power rating for each type of PSU: 2500 W DC PSU: 2500 W (input voltage: ??8 V DC to ??0 V DC) 2000 W AC PSU: 800 W (90-143 V AC input) 1800 W (180-242 V AC input) 2000 W (198-264 V AC input) 2000 W (216-264 V DC input) 3000 W AC PSU: 1200 W (90-143 V AC input) 2500 W (180-242 V AC input) 3000 W (200-264 V AC input) 3000 W (216-264 V DC input) |
|
Power consumption for 4–socket server |
Maximum power consumption: 1313.94 W Typical power consumption: 1041.54 W Minimum power consumption: 769.73 W |
|
Power consumption for 4–socket server |
Maximum power consumption: 2627.88 W Typical power consumption: 2083.07 W Minimum power consumption: 1539.46 W |
