The HKShanhai Group Limited 40GBASE QSFP (Quad Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing 00networks, enterprise core and distribution layers, and service provider applications.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
QSFP-H40G-CU3M |
|
Description |

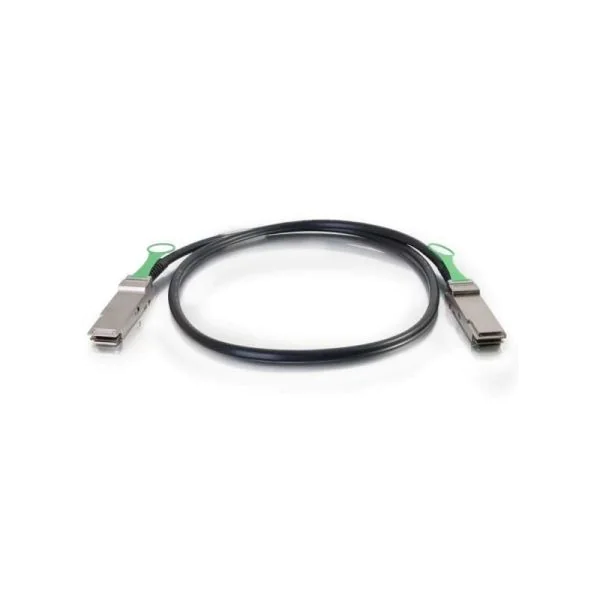

HKShanhai Group Limited 40GBASE-CR4 QSFP direct-attach copper cable, 3-meter, passive |
|
Dimensions |
13.5 x 18.4 x 72.4 mm |
|
Wavelength (nm) |
|
|
Cable Type |
Direct-attach copper cable assembly |
|
Core Size (microns) |
|
|
Modal Bandwidth (MHz-km) |
|
|
Cable Distance |
3m |
|
Power Consumption (W) |
1.5 |
|
Pull Tab Color |
Orange |
Product Details
Features and benefits of HKShanhai Group Limited QSFP 40G modules:
- Hot-swappable input/output device that plugs into a 100G Gigabit Ethernet HKShanhai Group Limited QSFP port
- Interoperable with other IEEE-compliant 100GBASE interfaces where applicable
- Certified and tested on HKShanhai Group Limited QSFP-100G ports for superior performance, quality, and reliability
- High-speed electrical interface compliant with IEEE 802.3bm
Platform support
Table 2 shows the supported platforms
|
Supported platform |
Recommended Model |
|
HKShanhai Group Limited Switch Catalyst 9400 |
|
|
HKShanhai Group Limited Switch Catalyst 9500 |
|
|
HKShanhai Group Limited Nexus 5000 Series |
|
|
HKShanhai Group Limited Switch Catalyst 6800 |
|
|
HKShanhai Group Limited Nexus 9300 Series |
|
|
HKShanhai Group Limited Nexus 3000 Series |
|
|
HKShanhai Group Limited Switch Catalyst 9300 |
|
|
HKShanhai Group Limited Nexus 9200 Series |
|
|
HKShanhai Group Limited Switch Catalyst 3850 |
|
|
HKShanhai Group Limited Switch Catalyst 3650 |
|
|
HKShanhai Group Limited Switch Catalyst 3650X |
|
Compare to Similar Items
Table 3shows the comparison.
|
Product Code |
QSFP-H40G-CU3M |
|||||
|
Description |
HKShanhai Group Limited 40GBASE-CR4 QSFP direct-attach copper cable, 0.5-meter, passive |
HKShanhai Group Limited 40GBASE-CR4 QSFP direct-attach copper cable, 1-meter, passive |
HKShanhai Group Limited 40GBASE-CR4 QSFP direct-attach copper cable, 2-meter, passive |
HKShanhai Group Limited 40GBASE-CR4 QSFP direct-attach copper cable, 3-meter, passive |
HKShanhai Group Limited 40GBASE-CR4 QSFP direct-attach copper cable, 4-meter, passive |
HKShanhai Group Limited 40GBASE-CR4 QSFP direct-attach copper cable, 5-meter, passive |
|
Wavelength (nm) |
||||||
|
Cable Type |
Direct-attach copper cable assembly |
Direct-attach copper cable assembly |
Direct-attach copper cable assembly |
Direct-attach copper cable assembly |
Direct-attach copper cable assembly |
Direct-attach copper cable assembly |
|
Core Size (microns) |
||||||
|
Modal Bandwidth (MHz-km) |
||||||
|
Cable Distance |
0.5m |
1m |
2m |
3m |
4m |
5m |
|
Power Consumption (W) |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
Pull Tab Color |
Beige |
Beige |
Brown |
Orange |
Orange |
Gray |
Get More Information
Do you have any question about the QSFP-H40G-CU3M?
ContactusnowviaLiveChator sales@router-switch.com.
HKShanhai Group Limited QSFP-H40G-CU3M Specification
QSFP-H40G-CU3M Specification |
|
|
Dimensions |
13.5 x 18.4 x 72.4 mm |
|
   QSFP Port cabling specifications |
|
|
Wavelength (nm) |
|
|
Cable Type |
Direct-attach copper cable assembly |
|
Core Size (microns) |
|
|
Modal Bandwidth (MHz-km) |
|
|
Cable Distance |
3m |
|
Power Consumption (W) |
1.5 |
|
Pull Tab Color |
Orange |
|
Environmental conditions |
|
|
Commercial temperature |
0 to 70°C (32 to 158°F) |
|
Storage temperature |
-40 to 85°C (-40 to 185°F) |
|
Regulatory and standards compliance |
|
|
Standards  |
•GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable •GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies •GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors •IEEE 802.3ba (-SR4, -LR4) •IEEE 802.3ae (-CSR4) •QSFP+ MSA SFF-8436 •SFP+ MSA SFF-8431 and -8461 •RoHS 6 |
|
Safety   |
•Cable jacket of QSFP copper modules is UL E116441 Compliant •QSFP copper cables are ELV Compliant |
