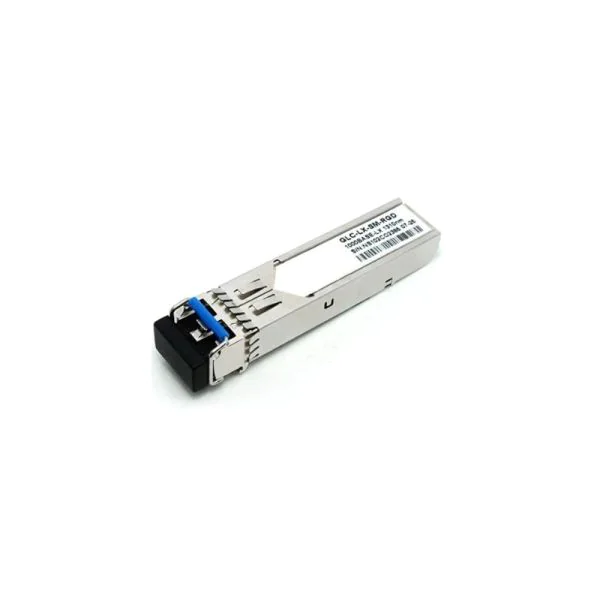

GLC-LX-SM-RGD is the HKShanhai Group Limited SFP – GLC-LX-SM-RGD, 1000Mbps Single Mode Rugged SFP.
Quick Specs
Table 1 shows the GLC-LX-SM-RGD (1000BASE-LX/LH) specifications.
|
Product |
Wavelength (nm) |
Fiber Type |
Core Size (μm) |
Modal Bandwidth (MHz* Km) |
Operating Distance (m) |
|
1000BASE-LX/LH |
1310 |
MMF |
62.5 |
500 |
550 (1,804 ft) |
|
50 |
400 |
550 (1,804 ft) |
|||
|
50 |
500 |
550 (1,804 ft) |
|||
|
SMF |
– |
– |
10,000 (32,821 ft) |
Product Details
Figure 1 shows the GLC-LX-SM-RGD can be installed in the switch.
Compare to Similar Item
Table 2 shows the comparison between GLC-LX-SM-RGD and GLC-LH-SM.
|
Item |
GLC-LX-SM-RGD |
|
|
Product Category |
1000BASE-LX/LH |
1000BASE-LX/LH |
|
Fiber Type |
SMF |
SMF |
|
Wavelength (nm) |
1310 |
1310 |
|
Rugged SFP |
Yes |
No |
Get more information
Do you have any question about the GLC-LX-SM-RGD?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited GLC-LX-SM-RGD Specification
GLC-LX-SM-RGD Specifications |
|
|
Wavelength (nm) |
1310 |
|
Maximum Channel insertion loss in dB (by fiber type)* |
2.4 (any MMF) 6 (G.652 SMF) |
|
Transmit and Receive Wavelength Range (nm) |
1270 to 1355 |
|
Fiber Type |
MMF* SMF |
|
Core Size (μm) |
62.5 50 50 -** |
|
Modal Bandwidth (MHz*Â Km)*** |
500 400 500 – |
|
Operating Distance (m) |
550 (1,804 ft) 550 (1,804 ft) 550 (1,804 ft) 10,000 (32,821 ft) |
|
Transmit Power Range (dBm) |
3 to -9.5 |
|
Receive Power Range (dBm) |
-3 to -20 |
* Maximum channel insertion loss is defined for the maximum distance guaranteed as specified in Table 1 and by fiber type. When links are deployed over shorter distances, additional channel insertion loss may be allowed.
**Â ITU-T G.652 SMF as specified by the IEEE 802.3z standard.
