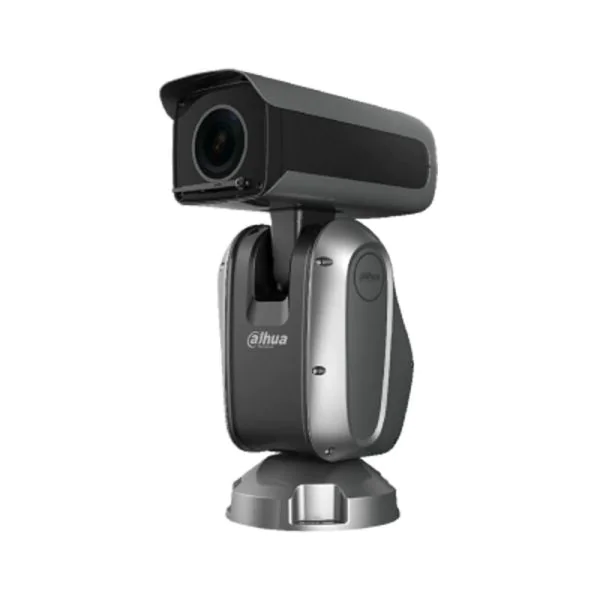

The Dahua PTZ83240-HNF-WA is a high-performance 2MP 40x Starlight IR AI Network Positioning System designed for advanced surveillance needs. With its powerful zoom capabilities and integrated AI, this Dahua product offers unparalleled image clarity and intelligent tracking features, making it ideal for various security and monitoring applications.
Quick Spec
| Image Sensor | 1/1.8″ STARVIS CMOS |
| Resolution | 2MP (1920 x 1080) |
| Optical Zoom | 40x |
| IR Distance | Up to 500m |
| Power Supply | AC24V/3A (��10%), PoE+ |
Product Features
- 2MP resolution with 40x optical zoom
- IR illumination up to 500 meters
- Starlight technology for improved low-light performance
- Advanced AI functionalities including auto-tracking
- Network positioning system for precise surveillance
Product Applications
- City Surveillance: Ideal for monitoring streets, intersections, and public areas.
- Perimeter Security: Suitable for securing large perimeters such as industrial properties and airports.
- Critical Infrastructure: Useful for protecting critical infrastructure including power plants and water treatment facilities.
Supported Options
| Wall Mount | PFB303W |
| Pole Mount | PFA151 |
| Power Adapter | PFM300 |
Compare to Similar Items
| Model | Difference |
| Dahua PTZ83230-HNF-WA | 30x optical zoom and lesser IR distance |
| Dahua PTZ81240-HNF-WA | Lower resolution of 1MP |
| Dahua PTZ84240-HNF-WA | Higher resolution of 4MP but with similar features |
Get more information
Check Dahua PTZ83240-HNF-WA price and PTZ83240-HNF-WA datasheet, buy Dahua PTZ83240-HNF-WA Network Positioning System with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, please contact us through Live Chat or at sales@router-switch.com.
Dahua PTZ83240-HNF-WA Specification
PTZ83240-HNF-WA Specifications |
|
| Brand | Dahua |
| Model | PTZ83240-HNF-WA |
| Resolution | 2MP |
| Optical Zoom | 40x |
| IR Distance | Up to 500 meters |
| Image Sensor | 1/1.8° CMOS |
| Min. Illumination | Color: 0.002 Lux, B/W: 0.0002 Lux |
| Compression | H.265, H.264, MJPEG |
| Frame Rate | 50/60 fps at 1080p |
| Lens Type | 4.8 mm?C192 mm motorized |
| Pan Range | 360° Endless |
| Tilt Range | ?C20° to +90°, Auto Flip 180° |
| AI Features | Perimeter protection, face detection, auto-tracking |
| Power Supply | AC24V/3A ° 10%, PoE+ |
| Power Consumption | Max. 44W (with IR on) |
| Operating Conditions | -40°C to 70°C |
| Ingress Protection | IP66 |
| Storage | Micro SD card slot (up to 256 GB) |
| Network | RJ-45 (10/100Base-T) |
| Audio I/O | 1/1 channel In/Out |
| Alarm I/O | 7/2 channel In/Out |
| Day/Night | Auto (ICR) / Color / B/W |
