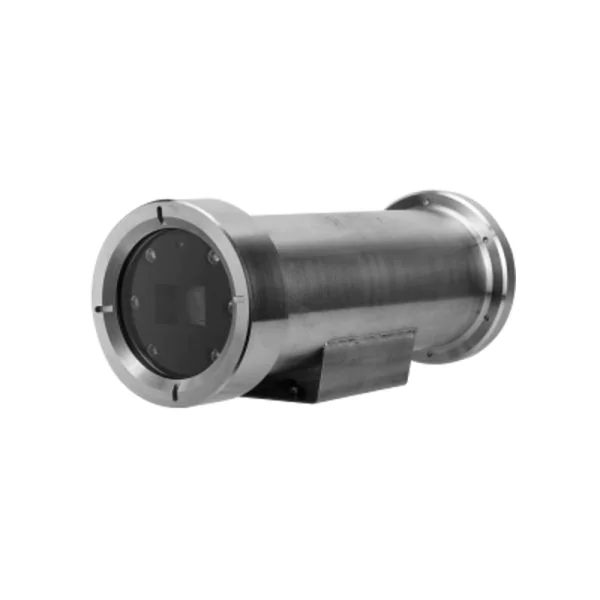

The Dahua EPC230U is a highly advanced 2MP 30x Explosion-proof IR Network Camera designed for use in highly demanding and hazardous environments. This camera is part of Dahua’s robust explosion-proof series, delivering exceptional video quality and reliability. With its powerful zoom capabilities and infrared technology, the EPC230U is a perfect solution for security monitoring in areas prone to explosive risks.
Quick Spec
| Brand | Dahua |
| Model | EPC230U |
| Resolution | 2MP |
| Zoom | 30x Optical |
| Infrared Range | Up to 100 meters |
Product Features
- Explosion-proof housing for hazardous environments
- 2MP high-resolution video capture
- 30x optical zoom for detailed monitoring
- IR night vision up to 100 meters
- Rugged design with IP68 rating
Product Applications
- Oil and gas industry plant monitoring
- Chemical processing facilities surveillance
- Highly secured and hazardous zones in manufacturing plants
Supported Options
| Mounting Bracket | PFB723W |
| Junction Box | DH-PFA151 |
| Network Storage | DHI-NVR608-32-4KS2 |
Compare to Similar Items
| Model | Key Differences |
| Dahua EPC235U | Higher resolution (5MP) and 35x optical zoom |
| Dahua ITC237-PW1B-IRZ | Optimized for license plate recognition |
| Dahua EPC230L | No infrared capabilities |
Get more information
For more information about the Dahua EPC230U, including its price and detailed specifications, please contact us through Live Chat or send an email to sales@router-switch.com. Check ‘Dahua EPC230U’ price and ‘EPC230U datasheet’, buy ‘Dahua EPC Series’ with the best price and fast shipping. Free Live Chat support is also available.
Dahua EPC230U Specification
EPC230U Specifications |
|
| Brand | Dahua |
| Model | EPC230U |
| Image Sensor | 1/2.8° 2MP CMOS |
| Effective Pixels | 2 Megapixels (1920 x 1080) |
| IR Distance | Up to 100 meters |
| Explosion-proof Grade | Exd IIC T6 Gb/ExtD A21 IP68 T80°C |
| Lens | 4.5 mm?C135 mm (30x Optical Zoom) |
| Shutter Speed | 1/1s to 1/30000s |
| Day/Night | Auto(ICR) / Color / B/W |
| Min. Illumination | Color: 0.005 Lux @F1.6; B/W: 0.0005 Lux @F1.6 |
| Video Compression | H.265 / H.264 / MJPEG |
| Frame Rate | Max. 50/60 fps @ 1080P |
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, SSH, QoS, FTP, UPnP, RTP, RTSP |
| Audio In/Out | 1/1 channel |
| Alarm In/Out | 2/1 channel |
| Ingress Protection | IP68 |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Power Supply | AC 100V-240V, 50Hz/60Hz |
| Power Consumption | Max. 45W |
| Dimensions | 343.2 x 220 x 222.7 mm (13.51″ x 8.66″ x 8.77″) |
| Certification | CE, FCC, UL |
