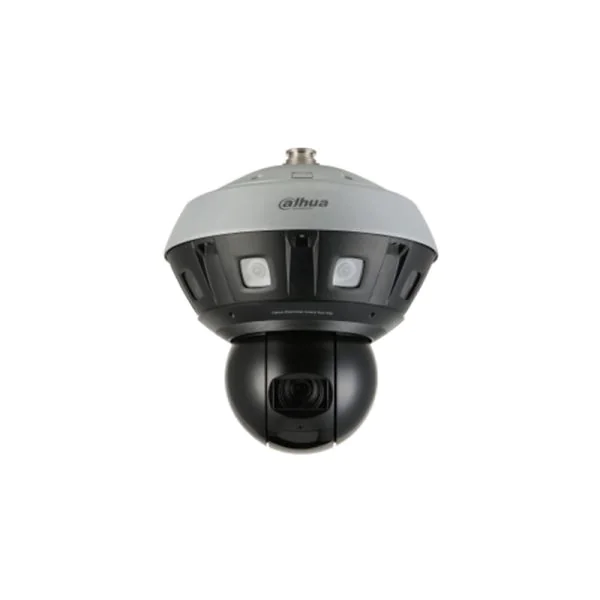

The Dahua PSDW8842M-A180 is an advanced surveillance solution that combines a 4x2MP multi-sensor panoramic network camera with a powerful PTZ camera. Designed for comprehensive area monitoring, this versatile device ensures superior coverage and flexibility for various security applications. With its advanced imaging and PTZ capabilities, the Dahua PSDW8842M-A180 meets the demands of modern security needs.
Quick Spec
| Brand | Dahua |
| Model | PSDW8842M-A180 |
| Resolution | 4x2MP |
| Camera Type | Multi-Sensor Panoramic + PTZ |
| Panoramic View | 180-degree |
Product Features
- 4x2MP multi-sensor panoramic captures comprehensive scenes
- Integrated PTZ camera for precise monitoring and zoom
- High-resolution imaging with a 180-degree panoramic view
- Excellent low light performance
- Support for intelligent video analytics
Product Applications
- City surveillance for wide-area coverage and detailed monitoring
- Airport and train stations where large open areas need oversight
- Shopping malls and commercial complexes for comprehensive security management
Supported Options
| Mounting Bracket | PFA120 |
| Power Adapter | PFM351 |
| Control Keyboard | NKB1000 |
Compare to Similar Items
| Model | Differences |
| Dahua PSDW8822P-A180 | 2x2MP resolution, no PTZ integration |
| Dahua PFW8601-A180 | 3x2MP resolution, stationary cameras |
| Dahua SD6AE240V-HNI | None-panoramic view, focuses on PTZ only |
Get more information
Contact us through Live Chat or email at sales@router-switch.com for further information about the Dahua PSDW8842M-A180 and its price. Check “Dahua PSDW8842M-A180 price” and “PSDW8842M-A180 datasheet”, buy “Dahua PSDW8842M-A180 series” with the best price and fast shipping. Free Live Chat support is available.
Dahua PSDW8842M-A180 Specification
PSDW8842M-A180 Specifications |
|
| Brand | Dahua |
| Model | PSDW8842M-A180 |
| Camera Type | Multi-Sensor Panoramic Network Camera + PTZ Camera |
| Total Camera Resolution | 8MP (4 x 2MP) |
| Panoramic Camera Resolution | 4 x 2MP |
| PTZ Camera Resolution | 2MP |
| Lens | Fixed 2.8mm for Panoramic, Zoom lens for PTZ |
| Field of View | 180Panoramic |
| IR Distance | Up to 100m |
| Day/Night Mode | ICR |
| Frame Rate | 25/30fps (50/60Hz) |
| Digital Zoom | 16x |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| Network Interface | 1 RJ-45 (10/100Base-T) |
| Power Supply | DC12V, PoE+ (802.3at) |
| Operating Conditions | -30C ~ +60C |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Dimensions | 351.1mm 293.9mm |
| Storage | Micro SD card slot (up to 256GB) |
