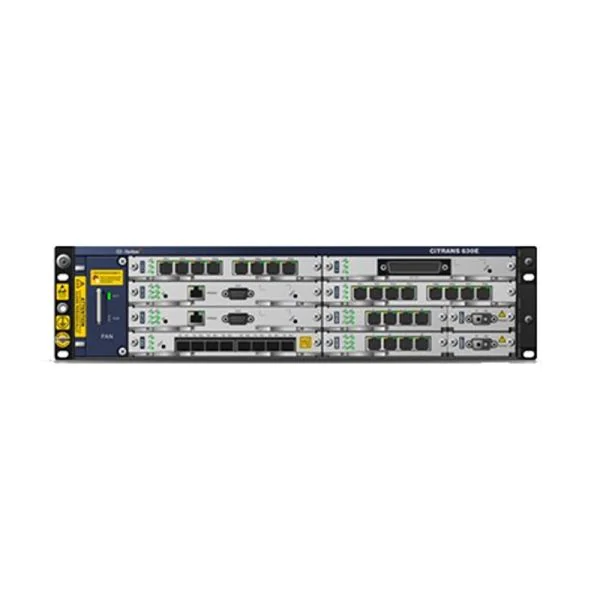

The FiberHome CiTRANS 630E is a robust and versatile transmission equipment designed for efficient handling and processing of TDM services. It provides robust support for SDH service interfaces, including E1 services and STM-N, ensuring smooth and reliable communication across various networks. This product is ideal for businesses looking to enhance their telecommunications infrastructure.
Quick Spec
| Brand | FiberHome |
| Model | CiTRANS 630E |
| Service Interface | E1 and STM-N |
| Type | TDM Processing |
| Dimensions | Standard 19-inch Rack |
Product Features
- Supports both E1 and STM-N service interfaces.
- Efficient TDM service processing capabilities.
- Compatible with standard 19-inch rack for easy installation.
- High reliability and performance for telecommunications.
- Scalable design to accommodate various network sizes.
Product Applications
- Telecommunications networks requiring reliable TDM and SDH service interfaces.
- Enterprises aiming to enhance their telecommunications infrastructure.
- Service providers needing scalable solutions for network expansion.
Supported Options
| Accessory | Model |
| Optical Module | OPM-01 |
| Power Supply Unit | PSU-630E |
| Rack Mount Kit | RMK-19 |
Compare to Similar Items
| Model | Differences |
| CiTRANS 610 | Limited to E1 service interface only; no support for STM-N. |
| CiTRANS 650E | Supports additional advanced monitoring and management features. |
| CiTRANS 620 | Compact design for smaller installations; limited scalability. |
Get more information
For further information about the FiberHome CiTRANS 630E and its pricing, please contact us through Live Chat or at sales@router-switch.com.
FiberHome CiTRANS 630E Specification
FiberHome CiTRANS 630E Specifications |
|
| Brand | FiberHome |
| Model | CiTRANS 630E |
| Service Processing | TDM services |
| SDH Service Interface | E1 services, STM-N |
| Max E1 Interfaces | 252 |
| Max STM-1 Interfaces | 28 |
| Max STM-4 Interfaces | 14 |
| Max STM-16 Interfaces | 7 |
| Max STM-64 Interfaces | 1 |
| Cross-Connect Capacity | Up to 128G |
| Protection Types | 1:1 MS/LS protection, SNCP, MSP |
| Synchronization Methods | Synchronous, Asynchronous |
| Management | Web, NMS |
| Power Supply | -48V DC |
| Operating Temperature | -5C to +45C |
| Storage Temperature | -40C to +70C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions (HxWxD) | 442mm x 220mm x 250mm |
| Cooling | Fan cooling |
| Mounting | 19-inch rack mount |
| Compliance | ETSI, CE, FCC |
