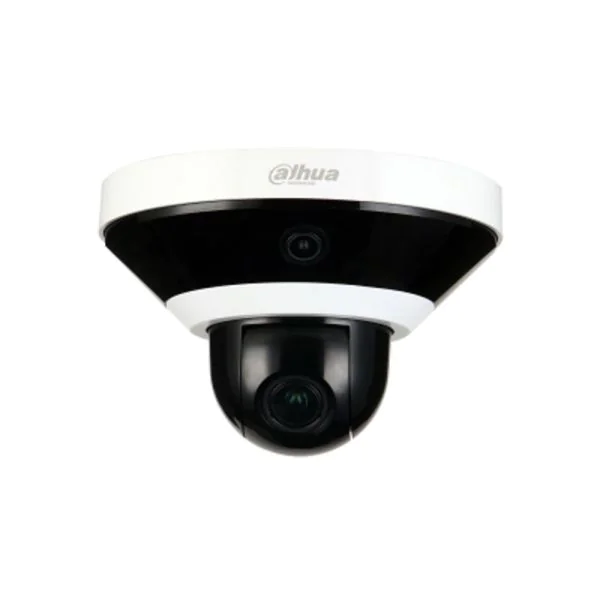

The Dahua PSDW5631S-B360 is an advanced network camera that combines both multi-sensor and PTZ functionalities. Featuring three 2MP sensors, this product is designed to deliver comprehensive surveillance coverage with high-resolution image quality. Ideal for challenging environments, it ensures detailed monitoring and enhanced situational awareness.
Quick Spec
| Brand | Dahua |
| Model | PSDW5631S-B360 |
| Resolution | 3x 2MP |
| Camera Type | Multi-Sensor + PTZ |
| Network Interface | RJ-45 (10/100 Base-T) |
Product Features
- Three 2MP sensors for high-resolution imaging
- 360-degree panorama view with high-speed PTZ
- Smart H.265+ compression saving bandwidth and storage
- Weatherproof design for various weather conditions
- Integrated IR LEDs for clear night vision
Product Applications
- City surveillance monitoring large urban areas
- Airport security ensuring comprehensive coverage
- Shopping mall safety providing panoramic views of large spaces
Supported Options
| Accessory | Model |
| Wall Mount Bracket | PFB203W |
| Ceiling Mount | PFA152-E |
| Power Adapter | PFM320D |
Compare to Similar Items
| Feature | PSDW5631S-B360 | PSDW5631N-B360 | PSDW5631T-B360 |
| Panoramic View | Yes | Yes | No |
| IR LEDs | Yes | No | Yes |
| Compression | H.265+ | H.264 | H.265+ |
Get more information
For further details about the Dahua PSDW5631S-B360, including pricing and datasheets, please contact us via Live Chat or at sales@router-switch.com. Check Dahua PSDW5631S-B360 price and PSDW5631S-B360 datasheet, buy Dahua PSDW5631S-B360 Camera with the best price and fast shipping. Free Live Chat support is available.
Dahua PSDW5631S-B360 Specification
PSDW5631S-B360 Specifications |
|
| Brand | Dahua |
| Model | PSDW5631S-B360 |
| Image Sensor | 1/2.8° 2Megapixel progressive scan CMOS (3 sensors) |
| Effective Pixels | 2MP (per sensor), 1920(H) x 1080(V) |
| Field of View | 100° (H) x 55° (V) per sensor |
| Min. Illumination | Color: 0.005Lux@F1.6, B/W: 0.0005Lux@F1.6, 0Lux@IR on |
| IR Distance | Up to 50m (164ft) |
| Lens | 2.7mm ~ 12mm Motorized |
| Pan/Tilt/Zoom Range | Pan: 360°, Tilt: 90°, Optical Zoom: 4x |
| Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Audio | 1 input, 1 output |
| Alarm | 2 inputs, 1 output |
| Ingress Protection | IP67 |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Power Supply | DC12V, PoE+ (802.3at) |
| Power Consumption | < 16.4W |
| Dimensions | 451.2 x 170 x 192.6 mm (17.76″ x 6.69″ x 7.58″) |
| Net Weight | 4.2Kg (9.26lbs) |
| Smart Features | IVS (Tripwire, Intrusion), Face Detection, Heat Map |
| Network Interface | 1 RJ-45 (100/1000Base-T) |
| Storage | MicroSD (up to 256GB) |
