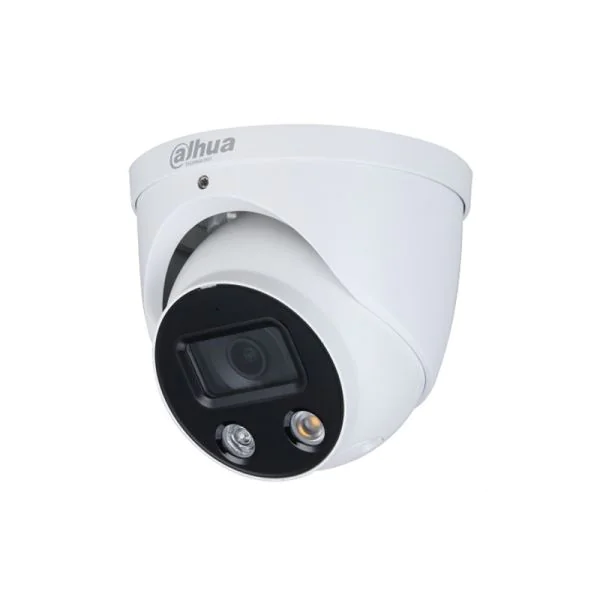

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua’s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions. With advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. In addition, with full-color technology, it provides a better image effect in the condition of low illuminance.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
IPC-HDW3849H-AS-PV |
|
Image Sensor |
1/2.8″ 8Megapixel progressive CMOS |
|
Max. Resolution |
3840(H) 2160 (V) |
|
ROM |
128 MB |
|
RAM |
512 MB |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3 s�C1/100,000 s |
|
Illumination Distance |
30 m (98.4 ft) |
Product Details
IPC-HDW3849H-AS-PV provides these features and benefits:
8MP, 1/2.8″ CMOS image sensor, low illuminance, high image definition
Outputs max.8MP (3840 2160) @20 fps (AI function enabled by default) and supports 8MP (3840 2160) @25/30 fps (with AI function disabled)
H.265 codec, high compression rate, low bit rate
Built-in warm illuminator, and the max. illumination distance: 30 m
ROI, Smart H.265+/Smart H.264+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital
watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Supports sound and light alarm linkage. When an alarm is triggered, the camera links sound alarm and light flashing
Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker
12V DC/PoE power supply
IP67 protection
SMD Plus
Red and blue flashlight alarm
Get more information
Do you have any question about the IPC-HDW3849H-AS-PV
Contact us now via Live Chat or sales@router-switch.com.
Dahua HDW3849H-AS-PV Specification
IPC-HDW3849H-AS-PV Specification |
|||||
|
Camera |
|||||
|
Image Sensor |
1/2.8??Megapixel progressive CMOS |
||||
|
Effective Pixels |
3840(H) × 2160 (V) |
||||
|
ROM |
128 MB |
||||
|
RAM |
512 MB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s??/100000 s |
||||
|
Min. Illumination |
0.003 Lux @ F1.0 |
||||
|
Illumination Distance |
30 m (98.4 ft) |
||||
|
Illuminator On/Off Control |
Auto/Manual |
||||
|
Illuminator Number |
1 (Warm light) |
||||
|
Pan/Tilt/Rotation Range |
Pan: 0°??60° Tilt: 0°??8° Rotation: 0°??60° |
||||
|
Lens |
|||||
|
Lens Type |
Fixed-focal |
||||
|
Mount Type |
M12 |
||||
|
Focal Length |
2.8 mm; 3.6 mm |
||||
|
Max. Aperture |
F1.4 |
||||
|
Field of View
|
2.8 mm: Horizontal 107° × Vertical 56° × Diagonal 127° 3.6 mm: Horizontal 89° × Vertical 46° × Diagonal 102° |
||||
|
Iris Type |
Fixed |
||||
|
Close Focus Distance |
2.8 mm: 1.5 m (4.9 ft) 3.6 mm: 2.2m (7.2 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
2.8 mm |
87.7m (287.7 ft) |
35.1 m ( 115.2 ft) |
17.5m (57.4 ft) |
8.8m (28.8 ft) |
|
|
3.6 mm |
110.3m (361.8 ft) |
44.1m (144.7ft) |
22.1m (72.5 ft) |
11m (36 ft) |
|
|
Professional, intelligent |
|||||
|
IVS (Perimeter Protection) |
Tripwire; intrusion (support the classification and accurate detection of vehicle and human) |
||||
|
Intelligent Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
||||
|
Video |
|||||
|
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
||||
|
Smart Codec |
Smart H.265+/ Smart H.264+ |
||||
|
Video Frame Rate
|
Main stream: 3840 × 2160 @(1??0 fps by default) 3840 × 2160 @(1??5/30 fps with AI function disabled) sub stream: 704 × 576 @ (1??5 fps)/704 × 480 @ (1??0 fps) third stream:1280 × 1080 @ (1??5/30 fps) |
||||
|
Stream Capability |
3 streams |
||||
|
Resolution
|
8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1(704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||
|
Bit Rate Control |
CBR/VBR |
||||
|
Video Bit Rate |
H.264: 32 kbps??192 kbps H.265: 12 kbps??192 kbps |
||||
|
Day/Night |
Color/B/W |
||||
|
BLC |
Yes |
||||
|
HLC |
Yes |
||||
|
WDR |
120 dB |
||||
|
Scene Self-adaptation (SSA) |
Yes |
||||
|
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
||||
|
Gain Control |
Auto/Manual |
||||
|
Noise Reduction |
3D NR |
||||
|
Motion Detection |
OFF/ON (4 areas) |
||||
|
Region of Interest (RoI) |
Yes (4 areas) |
||||
|
Smart IR |
Yes |
||||
|
Image Rotation |
0°/90°/180°/270° (Support with 1920 × 1080 resolution and lower) |
||||
|
Mirror |
Yes |
||||
|
Privacy Masking |
4 areas |
||||
|
Audio |
|||||
|
Built-in MIC |
Yes |
||||
|
Audio Compression |
PCM; G.711a; G.711Mu; G.726 |
||||
|
Network |
|||||
|
Ethernet |
RJ-45 (10/100 Base-T) |
||||
|
Protocol
|
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
||||
|
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
||||
|
User/Host |
20 (Total bandwidth: 80 M.) |
||||
|
Storage |
FTP; SFTP; Micro SD card (support max. 256 G); NAS |
||||
|
Browser
|
IE: IE8 and later Chrome Firefox Safari: Safari 12 and later |
||||
|
Management Software |
Smart PSS; DSS; DMSS |
||||
|
Mobile Phone |
IOS; Android |
||||
|
Certifications |
|||||
|
Certifications
|
CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
||||
|
Power |
|||||
|
Power Supply |
12V DC/PoE (802.3af) |
||||
|
Power Consumption |
Basic power consumption: 3.1W (DC12V); 3.5W (POE) Max. power consumption (WDR + H.265 + red and blue lights flashing alternately + warm light + sound alarm): 7.8W (DC12V); 8.2W (POE) |
||||
|
Environmental |
|||||
|
Operating Conditions |
-40°C to +60°C (-40°F to +140°F)/less than 95% RH |
||||
|
Storage Conditions |
-40°C to +60°C (-40°F to +140°F) |
||||
|
Protection |
IP67 |
