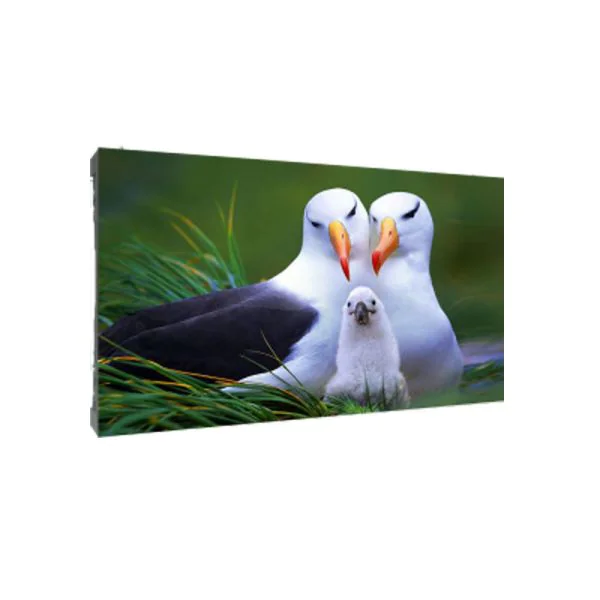

The Dahua PHSA1.9-EH is an advanced Indoor Fine Pixel LED display designed to deliver high-resolution visuals and superior performance. This product is engineered for various indoor environments where exceptional image quality and reliability are paramount. With cutting-edge LED technology, the PHSA1.9-EH offers brilliant color reproduction and outstanding clarity, ensuring an immersive viewing experience.
Quick Spec
| Brand | Dahua |
| Model | PHSA1.9-EH |
| Pixel Pitch | 1.9 mm |
| Brightness | 800 nits |
| Resolution | Full HD |
Product Features
- Fine pixel pitch of 1.9 mm for high-resolution images
- 800 nits brightness for clear visibility in various lighting conditions
- High refresh rate for seamless video playback
- Advanced color calibration for accurate color representation
- Energy-efficient design for reduced power consumption
Product Applications
- Corporate conference rooms for high-definition presentations
- Retail environments for impactful advertising displays
- Control rooms for real-time monitoring and surveillance
Supported Options
| Mounting Bracket | MB-PHSA1.9 |
| Control System | CS-PHSA1.9 |
| Power Supply | PS-PHSA1.9 |
Compare to Similar Items
| Model | Differences |
| Dahua PHSA2.6-EH | Larger pixel pitch of 2.6 mm, lower resolution |
| Dahua PHSA1.5-EH | Smaller pixel pitch of 1.5 mm, higher clarity |
| Dahua PHSA3.9-EH | Higher pixel pitch of 3.9 mm, suited for larger displays |
Get more information
If you need more information about Dahua PHSA1.9-EH, please contact us via Live Chat or email us at sales@router-switch.com for further details and pricing.
Dahua PHSA1.9-EH Specification
PHSA1.9-EH Specifications |
|
| Brand | Dahua |
| Product Name | PHSA1.9-EH |
| LED Type | Indoor Fine Pixel LED |
| Pixel Pitch | 1.9 mm |
| Resolution | Full HD |
| Brightness | 800 cd/m2 |
| Refresh Rate | 3840 Hz |
| Viewing Angle | 160Horizontal, 140Vertical |
| Contrast Ratio | 5000:1 |
| Drive Mode | 1/26 Scan |
| Power Consumption | Max. 560W/m2 |
| Input Voltage | AC 100-240V, 50/60 Hz |
| IP Rating | IP30 (Indoor) |
| Operating Temperature | -20C to +60C |
| Operating Humidity | 10% to 90% RH |
| Module Size | 250mm x 250mm |
| Module Resolution | 128 x 128 pixels |
| Frame Rate | 60 Hz |
| Color Temperature | 6500K +/-500K adjustable |
| Signal Input | DVI/HDMI |
| Data Connectors | Ethernet Cable |
