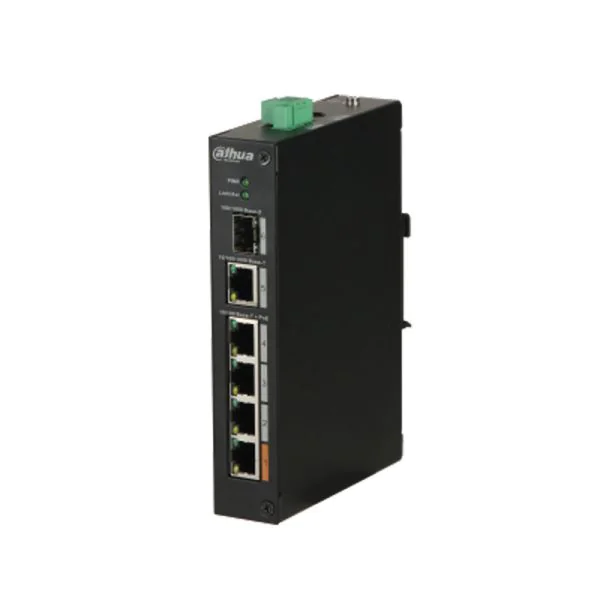

The Dahua PFS3106-4ET-60 is a powerful and efficient 4-Port PoE Switch designed for seamless network management and connectivity. This unmanaged switch is part of Dahua°s extensive range of networking solutions, offering reliable performance and simplicity in deployment for various applications. Ideal for small to medium-sized businesses, this PoE switch ensures stable power supply and data transmission over Ethernet, thereby enhancing the efficiency and capability of your network.
Quick Spec
| Brand | Dahua |
| Model | PFS3106-4ET-60 |
| Ports | 4 PoE ports |
| Switch Type | Unmanaged |
| Power Supply | 60W |
Product Features
- Supports IEEE802.3af and IEEE802.3at standards.
- Extends network distances up to 250 meters with PoE.
- 4 ports with 10/100 Mbps data rate.
- Easy plug and play installation without configuration.
- Compact and durable design for varied environments.
Product Applications
- Small and medium businesses requiring stable and efficient networking.
- Security systems needing reliable PoE power for IP cameras.
- Remote network setups where power outlets may be limited.
Supported Options
| Accessory | Model |
| DIN Rail Mount Kit | DRK-1 |
| Wall Mount Bracket | WMB-2 |
| Power Adapter | AD60-24V |
Compare to Similar Items
| Model | Differences |
| Dahua PFS3110-8ET-96 | 8 ports, 96W power supply, managed switch |
| Dahua PFS3105-4ET-36 | 4 ports, 36W power supply, unmanaged switch |
| Dahua PFS4206-4GT-60 | Gigabit ports, 60W power supply, managed switch |
Get more information
For further details about the Dahua PFS3106-4ET-60, please contact us through Live Chat or email at sales@router-switch.com. Check ‘Dahua PFS3106-4ET-60’ price and ‘PFS3106-4ET-60 datasheet’, buy ‘Dahua PFS3106-4ET-60 Switch’ with the best price and fast shipping. Free Live Chat support is available.
Dahua PFS3106-4ET-60 Specification
PFS3106-4ET-60 Specifications |
|
| Brand | Dahua |
| Product Name | PFS3106-4ET-60 |
| Type | PoE Switch (Unmanaged) |
| Number of Ports | 4 x PoE ports + 2 x Uplink ports |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Budget | 60W |
| Port Speed | 10/100Mbps |
| Switching Capacity | 1.2Gbps |
| Packet Forwarding Rate | 0.89Mpps |
| MAC Address Table | 2K |
| Power Input | DC 48V |
| Mounting | Desktop |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Operating Humidity | 10% to 90% non-condensing |
| Casing | Metal |
| Dimensions | 150mm x 100mm x 30mm |
| LED Indicators | Power, PoE, Link/Act |
| Certifications | CE, FCC |
| Surge Protection | 6KV |
