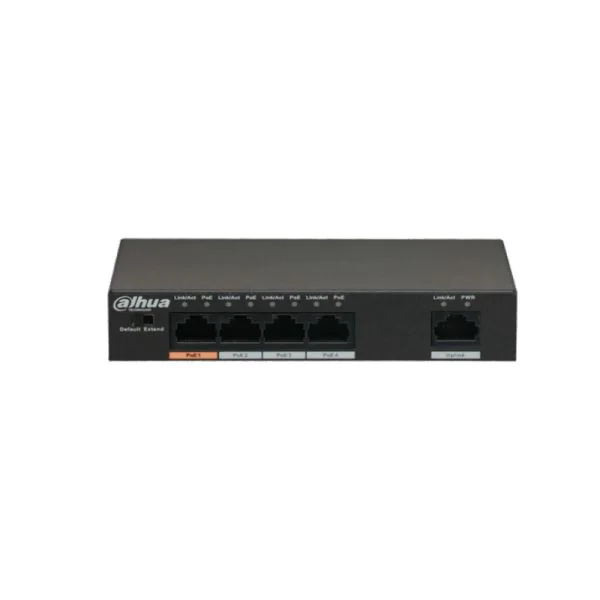

The Dahua PFS3005-4ET-60 is a 4-Port PoE switch tailored for small to medium-sized network operations. This unmanaged switch supports Power over Ethernet (PoE), providing power and data transmission via a single Ethernet cable, making it an ideal choice for simplifying the deployment of IP surveillance cameras and other PoE-enabled devices.
Quick Spec
| Brand | Dahua |
| Model | PFS3005-4ET-60 |
| Ports | 4 PoE Ports |
| PoE Standard | IEEE 802.3af/at |
| Max Power Consumption | 60W |
Product Features
- Supports IEEE 802.3af/at standards for PoE
- 4 PoE ports with a total power budget of 60W
- Unmanaged switch, plug-and-play setup
- Compact design for easy installation
- Surge protection to ensure device safety
Product Applications
- IP surveillance systems with PoE-enabled cameras
- Small office network setups
- Home network expansion with PoE devices
Supported Options
| PoE Injector | DH-PFM911 |
| Surge Protector | DH-PFM890 |
| Rack Mount Kit | DH-PFB110C |
Compare to Similar Items
| Model | Differences |
| Dahua PFS3005-4GT-60 | Includes 1 Gigabit Uplink Port |
| Dahua PFS3010-8ET-96 | 8 PoE Ports, 96W Power Budget |
| Dahua PFS4212-8GT | 12 Ports, Managed Switch |
Get more information
Check Dahua PFS3005-4ET-60 price and PFS3005-4ET-60 datasheet, buy Dahua PFS3005-4ET-60 switch with best price and fast shipping. Free Live Chat are supported. Contact us through Live Chat or sales@router-switch.com for further information about the product and its price.
Dahua PFS3005-4ET-60 Specification
PFS3005-4ET-60 Specifications |
|
| Product Name | Dahua 4-Port PoE Switch (Unmanaged) |
| Brand | Dahua |
| Model | PFS3005-4ET-60 |
| Number of Ports | 5 (4 PoE + 1 Uplink) |
| PoE Ports | 4 |
| Switch Type | Unmanaged |
| PoE Standard | IEEE802.3af, IEEE802.3at |
| Total PoE Power Budget | 58W |
| Power Consumption | 59.9W |
| Input Voltage | 48VDC |
| Switching Capacity | 1 Gbps |
| Packet Forwarding Rate | 0.744 Mpps |
| Packet Buffer Memory | 768Kbit |
| MAC Address Table | 1K |
| Dimensions | 100 mm x 100 mm x 26 mm |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Storage Humidity | 5% to 90% RH (non-condensing) |
| Mounting | Desktop/Wall-mount |
| Power Supply | External |
