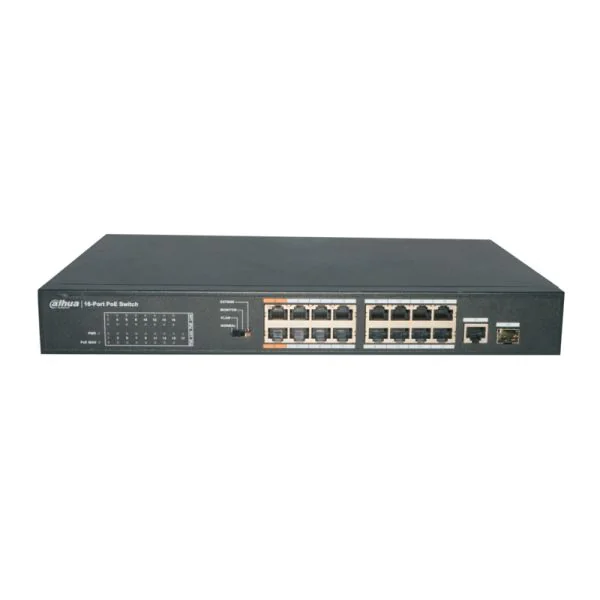

The Dahua PFS3117-16ET-135 is a 16-Port FE PoE+ switch with an additional Gigabit Combo port. Designed for high-efficiency power management and fast Ethernet connectivity, this switch is ideal for various network setups, especially where PoE+ devices are prevalent. Experience the unmatched performance and versatility of Dahua’s networking capabilities with this exceptional product.
Quick Spec
| Brand | Dahua |
| Model | PFS3117-16ET-135 |
| Ports | 16 FE PoE+, 1 Gigabit Combo |
| PoE Budget | 135W |
| Switching Capacity | 7.2Gbps |
Product Features
- 16-Port FE PoE+ for convenient power over Ethernet deployment
- 1-Port Gigabit Combo for high-speed uplink
- Total PoE power budget of 135W
- Supports IEEE802.3 af/at power standard
- Plug and Play operation with no configuration required
Product Applications
- Ideal for deploying IP cameras and VoIP phones in small to medium-sized office environments
- Perfect for providing network connections and power in a wireless access point setup
- Suitable for integration into home automation systems for centralized control and monitoring
Supported Options
| PoE Injector | Dahua PFT1300 |
| Power Adapter | Dahua PWR120W |
| Rack Mount Kit | Dahua RMK01 |
Compare to Similar Items
| Model | Dahua PFS3117-16ET-135 | Dahua PFS3005-4ET-65 | Dahua PFS4218-16ET-240 |
| PoE Ports | 16 | 4 | 16 |
| Uplink Ports | 1 Gigabit Combo | 1 FE | 2 Gigabit Combo |
| PoE Budget | 135W | 65W | 240W |
| Switching Capacity | 7.2Gbps | 1Gbps | 7.2Gbps |
| Dimensions | 440x280x44.5 mm | 140x100x30 mm | 440x280x44.5 mm |
Get more information
Check Dahua PFS3117-16ET-135 price and PFS3117-16ET-135 datasheet, buy Dahua PFS3117 series with best price and fast shipping. Free Live Chat are supported. Contact us through Live Chat or sales@router-switch.com for further information about the product and its price.
Dahua PFS3117-16ET-135 Specification
PFS3117-16ET-135 Specifications |
|
| Brand | Dahua |
| Model | PFS3117-16ET-135 |
| Port Type | 16-Port FE PoE+ 1-Port Gigabit Combo |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.35 Mpps |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| PoE Budget | 135W |
| MAC Address Table | 8K |
| Dimensions (WxDxH) | 190 x 294 x 44 mm |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Storage Humidity | 5% to 90% RH (Non-condensing) |
| LED Indicators | Power, Link/Act, PoE, PoE MAX |
| VLAN | Supports VLAN tagging (up to 4096 VLANs) |
| QoS | Supports Quality of Service (QoS) |
| Management | Web-based Management |
| Power Consumption | 150W (Max) |
| Certifications | CE, FCC, RoHS |
| Warranty | 3 Years |
