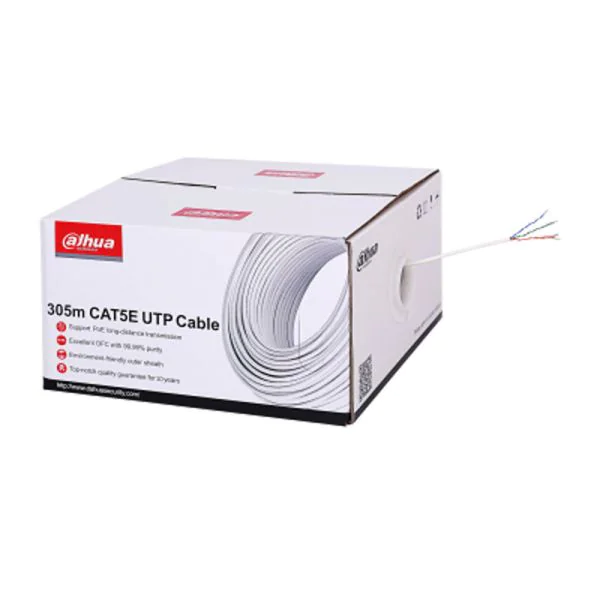

The Dahua PFM923I-5EUN-C is a high-quality 305m UTP CAT5E LSZH CPR E Cable designed for reliable and efficient networking solutions. Renowned for its robust construction and superior performance, this cable ensures secure data transmission while adhering to stringent safety standards. Ideal for various applications, it is a perfect choice for both commercial and residential networking needs.
Quick Spec
| Brand | Dahua |
| Model | PFM923I-5EUN-C |
| Length | 305 meters |
| Type | CAT5E |
| Jacket | LSZH CPR E |
Product Features
- Conforms to CAT5E standards for secure and reliable data transmission.
- 305 meters length, suitable for extensive networking projects.
- LSZH CPR E jacket enhances safety by reducing toxic emissions during combustion.
- High durability with robust construction to withstand wear and tear.
- Suitable for both commercial and residential installations.
Product Applications
- Ideal for setting up local area networks (LAN) in office environments.
- Suitable for extending network coverage in large residential complexes.
- Perfect for integrating with CCTV systems for enhanced security infrastructure.
Supported Options
| Accessory | Model |
| RJ45 Connectors | PAN-RJ45-10PA |
| Cable Management Panel | PAN-CMP |
| Cable Tester | PAN-CT100 |
Compare to Similar Items
| Model | Difference |
| PFM921I-5EUN-C | Shorter length (200 meters) |
| PFM924I-6AUN-C | Higher category (CAT6A), LSZH |
| PFM922I-5EUN-C | Non-LSZH jacket |
Get more information
For further information about the product and its pricing, please contact us through Live Chat or via email at sales@router-switch.com. Check “Dahua PFM923I-5EUN-C price” and “PFM923I-5EUN-C datasheet”, buy “Dahua PFM923I-5EUN-C cable” with the best price and fast shipping. Free Live Chat is supported.
Dahua PFM923I-5EUN-C Specification
| Model | DSS Express |
| Brand | Dahua |
| Type | Software |
| Operating System Compatibility | Windows 7/8/10, Windows Server 2012/2016 |
| Max Channels | 512 |
| Main Processor | Intel Core i3, 3.50GHz or above |
| Memory | 8GB or above |
| Storage | 1TB HDD or above |
| Network Protocol Support | TCP/IP, HTTP, TCP, ARP, RARP, DHCP, ICMP, DNS, NTP, SMTP, RTSP, SNMP, RTP, RTCP |
| Bandwidth Support | 1000 Mbps or above |
| Client Access | Web, Windows, Mobile (iOS, Android) |
| Video Compression | H.265, H.264 |
| Security | Multi-level user rights management |
| Integration | ONVIF, P2P, SDK |
| Event Management | Event linkage with alarm outputs, Email, FTP |
| Alarm Inputs | 16 |
| Alarm Outputs | 4 |
| Model | DH-PFM923I-5EUN-C | |
| Structure | ||
| Conductor | Material | OFC(oxygen free copper) |
| Structure | 4P*0.45±0.01mm | |
| Insulation | Material | HDPE |
| Min. average thickness | 0.195mm | |
| Diameter | 0.83mm0.05mm | |
| Color(4 Pairs) | White/Blue, Blue; White/Orange, Orange; White/Green, Green; White/Brown, Brown |
|
| Rip Cord | Yes | |
| Jacket | Material | LSZH, meet the requirement of CPR E class |
| Min. average thickness | 0.4mm | |
| Diameter | 4.6±0.5mm | |
| surface | Smooth, full and tight | |
| Color | White | |
| General | Length | 305m(1000.66ft) |
| Packaging dimension | 360mmx360mmx210mm(14.17”x14.17”x8.27?? | |
| Weight (with packaging) | 8.5kg(18.74lb) | |
| Mechanical Properties | ||
| Insulation | Tensile strength | ??6MPa |
| Elongation at break | ??00% | |
| Peeling property | No damage to insulation or conductor | |
| Jacket | Tensile strength | Before aging: ??0.0MPa After aging: ??.0MPa |
| Elongation at break | Before aging: ??25% After aging: ??00% |
|
| Aging condition | 100??24h*7d | |
| Peeling property | No damage to insulation, cold bending (-20C *4h), the outer diameter of the cable is 8 times, without cracking. | |
| Electrical Performance (20?? | ||
| Characteristic Impedance (1-250MHz) | 100±15Ω | |
| DC Resistance | ??2.0Ω/100m | |
| Max. Unbalance Rate of Line Pairs??Direct Current | ??% | |
| Time Delay | ??5ns/100m | |
| Max. Mutual Capacitance | 5.6nF/100m | |
| Min. Insulation Resistance | 5000M?·km |
