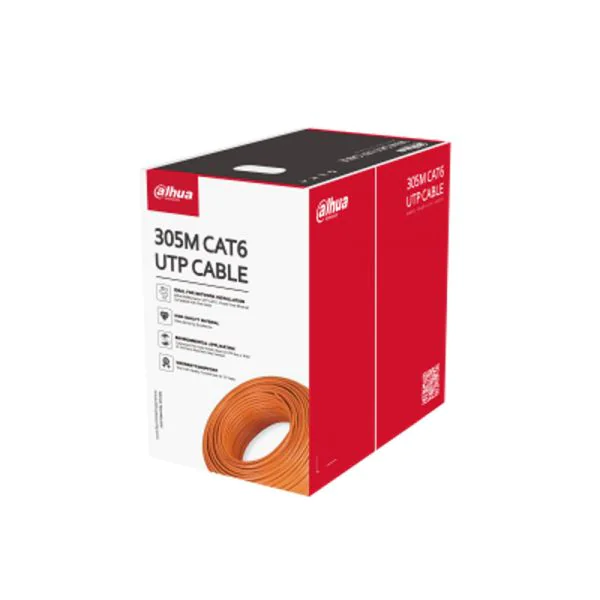

The Dahua PFM922I-6UN-C UTP CAT6 Cable is a high-performance networking cable designed to support faster data transfer rates and enhanced connectivity. Suitable for various networking environments, this Category 6 cable ensures reliable and consistent transmissions, making it ideal for both residential and commercial applications. Its robust construction and superior insulation materials offer durability and long-term performance, thus making it a great addition to any network infrastructure.
Quick Spec
| Brand | Dahua |
| Model | PFM922I-6UN-C |
| Category | CAT6 |
| Length | 305 meters |
| Conductor Material | Unshielded Twisted Pair (UTP) |
Product Features
- High-speed data transfer rates suitable for Gigabit Ethernet applications.
- Enhanced insulation material for improved performance and safety.
- Supports a wide range of devices including cameras, access points, and computers.
- Flame-retardant jacket ensuring safety standards compliance.
- Reduced crosstalk and system noise for clearer data transmissions.
Product Applications
- Residential networking to connect various home devices like PCs, gaming consoles, and smart TVs.
- Corporate environments for seamless connectivity between servers, workstations, and network hardware.
- Security systems, providing connectivity for IP cameras and other monitoring devices.
Supported Options
| Accessory | Model |
| RJ45 Connectors | PFM922-CON |
| Patch Panels | PFM922-PP |
| Cable Management | PFM922-CM |
Compare to Similar Items
| Model | Main Difference |
| PFM921I-6UN-C | Shorter length at 200 meters. |
| PFM923I-6UN-C | Shielded Twisted Pair (STP) construction. |
| PFM924I-6UN-C | Sold per meter and customizable length. |
Get more information
For further details about the product and its pricing, you can contact us through Live Chat or via email at sales@router-switch.com. Check Dahua PFM922I-6UN-C price and PFM922I-6UN-C datasheet, buy Dahua PFM922I-6UN-C cable with the best price and fast shipping. Free Live Chat support is available.
Dahua PFM922I-6UN-C Specification
Dahua PFM922I-6UN-C Specifications |
|
| Brand | Dahua |
| Model | PFM922I-6UN-C |
| Product Type | UTP CAT6 Cable |
| Cable Category | CAT6 |
| Cable Type | Unshielded Twisted Pair (UTP) |
| Conductor Material | Pure Copper |
| Length | 305 meters |
| Jacket Material | PVC |
| Bandwidth | Up to 250 MHz |
| Data Transfer Rate | Up to 1 Gbps |
| Standards Compliance | ISO/IEC 11801, TIA/EIA-568-C.2 |
| Color | Blue |
| Packaging | Box |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Outer Diameter | 6.2 mm ° 0.3 mm |
| Insulation Thickness | 1.0 mm |
| Number of Pairs | 4 pairs |
| RoHS Compliance | Yes |
| Minimum Bend Radius | 4x cable diameter |
| Flame Retardant | CMR (Riser Rated) |
