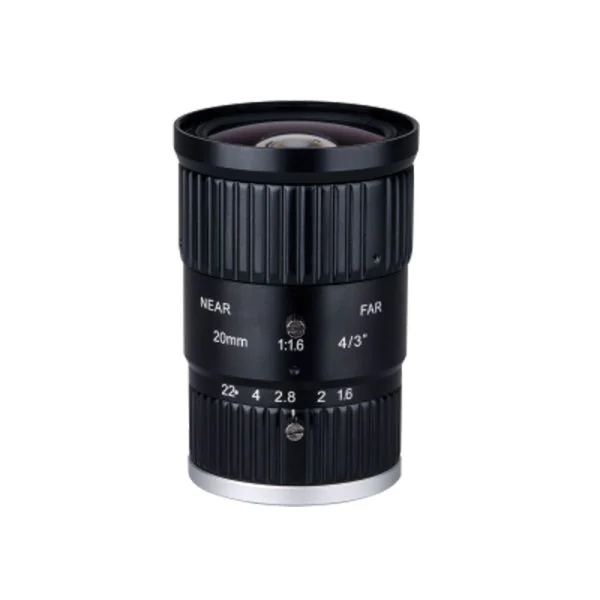

The Dahua PFL20-J10M is a premier 10 MP 4/3 20mm Fixed Lens designed for high-quality image capturing in various professional settings. Engineered to provide exceptional clarity and performance, this lens is ideal for surveillance systems, machine vision applications, and detailed imaging tasks. Partner with Dahua to elevate your optical technology to new levels.
Quick Spec
| Brand | Dahua |
| Model | PFL20-J10M |
| Image Sensor | 10 MP |
| Lens Type | Fixed |
| Focal Length | 20mm |
Product Features
- High-resolution 10 MP 4/3 sensor for detailed imaging
- Fixed 20mm focal length for consistent capture
- Robust build quality for long-lasting performance
- Designed for easy integration with Dahua systems
- Advanced optical design for minimal distortion
Product Applications
- Surveillance Systems: Ideal for high-definition CCTV setups, ensuring clear and precise images.
- Machine Vision: Optimized for use in industrial inspection systems requiring detailed optical scrutiny.
- Detailed Imaging Tasks: Suitable for medical imaging, research, and other professional settings needing high-resolution clarity.
Supported Options
| Accessory | Model |
| Lens Hood | LH-20MM |
| Mount Adapter | MA-4/3 |
| Cleaning Kit | CK-DH1 |
Compare to Similar Items
| Model | Differences |
| PFL30-J10M | 30mm focal length, suitable for longer range capture |
| PFL10-J5M | 5 MP sensor, lower resolution but wider compatibility |
| PFL40-J20M | 40mm focal length, enhanced zoom capabilities |
Get more information
For further details and pricing of the Dahua PFL20-J10M, please reach out to our support team via Live Chat or email us at sales@router-switch.com. Our experts are ready to assist you with any inquiries.
Dahua PFL20-J10M Specification
PFL20-J10M Specifications |
|
| Brand | Dahua |
| Model | PFL20-J10M |
| Lens Type | Fixed |
| Resolution | 10 MP |
| Focal Length | 20mm |
| Image Sensor | 4/3 format |
| Aperture | Fixed |
| Mount | Standard |
| Field of View | Dependent on sensor |
| IR Correction | No |
| Minimum Illumination | Dependent on camera |
| Operating Temperature | -10C to 50C |
| Storage Temperature | -20C to 70C |
| Dimensions | 50mm x 30mm |
| Material | Metal |
| Color | Black |
| Compatibility | 4/3 format cameras |
| Lens Coating | Multi-layer coating |
| Focus | Manual |
| Max. Aperture | f/2.0 |
| Min. Focusing Distance | 0.2m |
