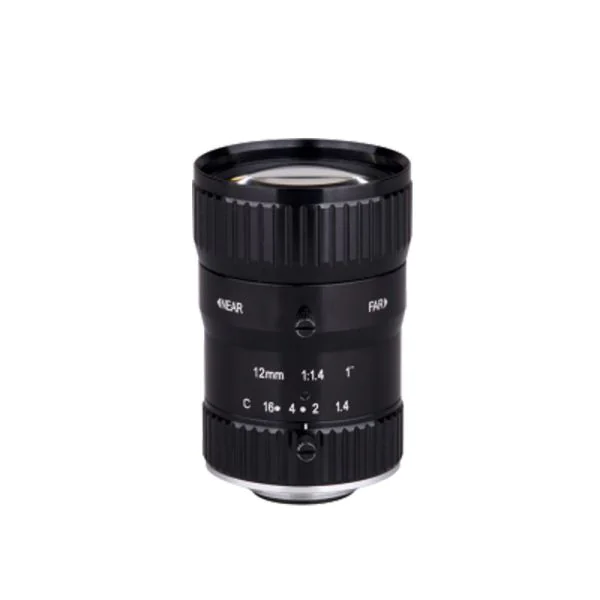

The Dahua PFL12-K10M is a versatile 10 MP lens designed for precision and clarity in surveillance systems. With a fixed focal length of 12mm, this lens is engineered to deliver high-quality, detailed images, making it an essential component for security applications. Its robust design ensures durability and longevity, suitable for both indoor and outdoor environments.
Quick Spec
| Brand | Dahua |
| Model | PFL12-K10M |
| Resolution | 10 MP |
| Sensor Size | 1″ |
| Focal Length | 12mm |
Product Features
- 10 MP resolution for high-definition imaging
- Fixed 12mm focal length ensuring consistent image quality
- Durable construction for various environmental conditions
- Ideal for use in security and surveillance systems
- Compatible with a range of Dahua cameras
Product Applications
- Retail security: Monitoring store activities and preventing theft
- Public spaces: Ensuring safety in parks, stations, and other public areas
- Industrial sites: Overseeing operations and enhancing safety measures
Supported Options
| Accessory | Model |
| Protective Housing | PH12-DA |
| Mounting Bracket | MB10-DH |
| Lens Cleaning Kit | CLK-10M |
Compare to Similar Items
| Model | Differences |
| PFL10-K8M | Lower resolution (8 MP) |
| PFL15-K15M | Higher focal length (15mm) |
| PFL12-K5M | Lower resolution (5 MP) |
Get more information
For further information about the Dahua PFL12-K10M and its pricing, please contact us via Live Chat or reach out at sales@router-switch.com.
Dahua PFL12-K10M Specification
PFL12-K10M Specifications |
|
| Brand | Dahua |
| Model | PFL12-K10M |
| Image Sensor | 10 MP 1″ |
| Lens Type | Fixed Lens |
| Focal Length | 12mm |
| Aperture | F1.8 |
| Lens Mount | C-mount |
| Field of View | Horizontal: 24.6, Vertical: 18.6 |
| Minimum Object Distance | 0.2m |
| Back Focus Distance | 12.53mm |
| Focus Control | Manual |
| Iris Control | Manual |
| Operating Temperature | -10C to +50C |
| Storage Temperature | -20C to +60C |
| Dimensions | 61.5mm x 49mm |
| Effective Pixels | 3648 (H) x 2736 (V) |
| Optical Coating | Multi-layer |
| Distortion | Less than 1% |
| Compatible Sensors | 1″ image sensors |
| Signal to Noise Ratio | More than 50dB |
| Vibration Resistance | 10-150Hz, 0.2mm |
