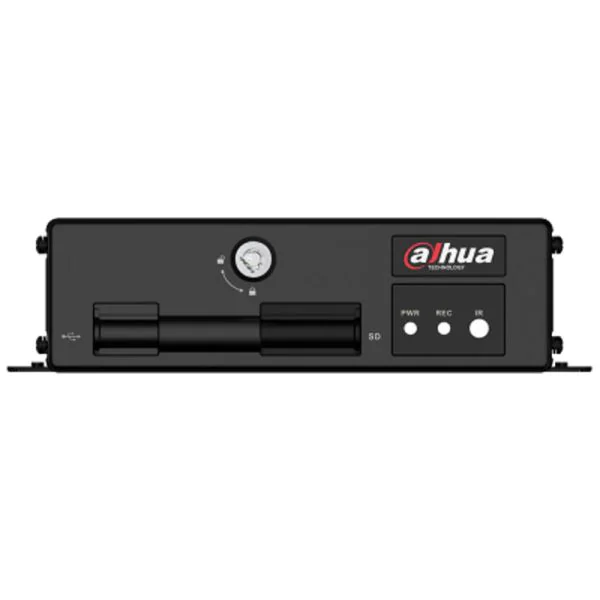

The Dahua DHI-MXVR1004 is a high-performing mobile video recorder designed to meet the demands of various video surveillance applications. This 4-channel Penta-brid recorder supports H.265 compression, ensuring high-quality video at reduced file sizes. With its compatibility with multiple video formats and the ability to support up to 2 SD cards, the DHI-MXVR1004 is a versatile and robust solution for mobile security needs.
Quick Spec
| Channels | 4 |
| Compression | H.265 |
| Supports | Penta-brid (HDCVI, AHD, TVI, CVBS, IP) |
| Storage | 2 SD cards |
| Audio In/Out | 4/1 |
Product Features
- 4-channel mobile video recording with Penta-brid support.
- H.265 video compression for efficient storage.
- Supports up to 2 SD cards for maximum storage capacity.
- High-definition real-time recording.
- Robust build suitable for mobile environments.
Product Applications
- Public transportation systems requiring constant surveillance.
- Fleet management for logistic companies.
- Mobile law enforcement units for real-time monitoring.
Supported Options
| GPS Module | DH-GPS01 |
| Wi-Fi Module | DH-WIFI02 |
| Extension Cable | DH-EXC01 |
Compare to Similar Items
| DHI-MXVR1004 | DHI-MXVR2004 | DHI-MXVR1008 | |
| Channels | 4 | 4 | 8 |
| Storage | 2 SD cards | 4 SD cards | 2 SD cards |
| Video Compression | H.265 | H.265+ | H.265 |
| Audio In/Out | 4/1 | 4/1 | 8/2 |
| Add-ons | GPS, Wi-Fi | GPS, Wi-Fi | GPS, Wi-Fi, 4G |
Get more information
For further information about the Dahua DHI-MXVR1004 and its pricing, please contact us through Live Chat or email at sales@router-switch.com. Check ‘Dahua DHI-MXVR1004’ price and ‘DHI-MXVR1004 datasheet’, buy ‘Dahua DHI-MXVR1004 series’ with the best price and fast shipping. Free Live Chat support is available.
Dahua DHI-MXVR1004 Specification
DHI-MXVR1004 Specifications |
|
| Brand | Dahua |
| Model | DHI-MXVR1004 |
| Video Compression | H.265 |
| Supported Video Formats | Penta-brid (TVI/AHD/CVI/CVBS/IP) |
| Channel Capacity | 4 Channels |
| Storage Option | 2 SD Cards |
| Network Protocols | TCP/IP, UDP, HTTP, RTSP, FTP, NTP, DHCP, DNS, DDNS, IPv4/IPv6 |
| Alarm Input | 4 Inputs |
| Alarm Output | 2 Outputs |
| Audio Input | 4 Inputs (1 per Channel) |
| Audio Output | 1 Output |
| Video Output | 1 VGA, 1 HDMI |
| Playback Resolution | Up to 1080P |
| USB Interface | 1 USB 2.0 Port |
| Power Supply | 12V DC |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
| Dimensions (W x H x D) | 178mm x 55mm x 147mm |
| Mobile App Support | Yes (iOS and Android) |
| ONVIF Compliance | Yes |
| Certification | CE, FCC |
