The Alcatel-Lucent OS10K-GNI-C48E is a robust Gigabit network interface card designed for high-performance networking environments. It offers 48 wire rate RJ-45 1000Base-T ports and is MPLS ready, providing substantial support for Layer 2, Layer 3, and ACL policies. This makes it ideal for versatile networking demands.
Quick Spec
| Brand | Alcatel-Lucent |
| Product Name | OS10K-GNI-C48E |
| Ports | 48 x 1000Base-T RJ-45 |
| Layer Support | L2, L3, ACL |
| MPLS Ready | Yes |
Product Features
- Supports 48 wire rate Gigabit Ethernet RJ-45 ports
- MPLS ready for modern networking environments
- Comprehensive support for Layer 2, Layer 3, and ACL policies
- Enhanced design for high performance and reliability
- Large table support to handle extensive network configurations
Product Applications
- Enterprise networks requiring robust Layer 3 and ACL capabilities
- Service provider networks looking for a scalable MPLS ready solution
- Data centers demanding high port density and wire rate performance
Supported Options
| Accessory | Model |
| Rack Mount Kit | RMK-OS10K |
| Redundant Power Supply | RPS-10K-PWR |
| SFP Transceiver Module | SFP-10G-LR |
Compare to Similar Items
| Model | Differences |

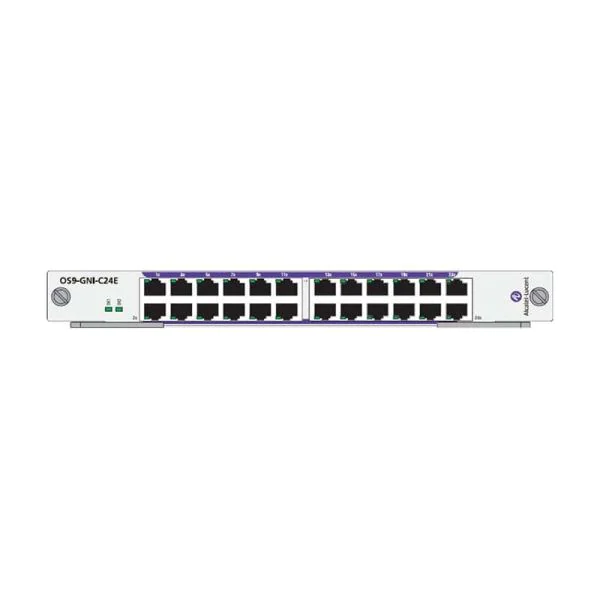

| OS10K-GNI-C24E | 24 x 1000Base-T ports compared to 48 |
| OS10K-GNI-C48P | PoE support on all ports |
| OS9K-GNI-C48E | Supports only L2, not L3 and ACL |
Get more information
Check Alcatel-Lucent OS10K-GNI-C48E price and OS10K-GNI-C48E datasheet, buy Alcatel-Lucent OS10K Gigabit network interface card series with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, feel free to contact us through Live Chat or sales@router-switch.com.
Alcatel-Lucent OS10K-GNI-C48E Specification
OS10K-GNI-C48E Specifications |
|
| Brand | Alcatel-Lucent |
| Model | OS10K-GNI-C48E |
| Interface Type | Gigabit network interface card |
| Number of Ports | 48 |
| Port Type | RJ-45 |
| Port Speed | 1000Base-T |
| Wire Rate | Wire Rate |
| MPLS Support | Yes, MPLS ready |
| Layer 2 Support | Yes |
| Layer 3 Support | Yes |
| ACL Policy Support | Yes |
| Operating Temperature | -40C to 70C (-40F to 158F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Temperature | -40C to 85C (-40F to 185F) |
| Storage Humidity | 5% to 95% non-condensing |
| Dimensions (W x D x H) | 7.1 in x 14.6 in x 1.6 in (180 mm x 370 mm x 40 mm) |
| Power Consumption | 180W max |
| Connector Type | RJ-45 |
| Compliance | RoHS |
| Mean Time Between Failures (MTBF) | 450,000 hours |
