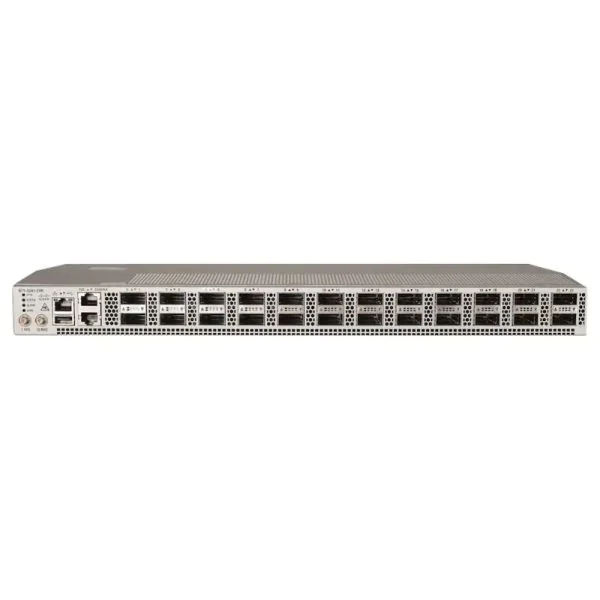

HKShanhai Group Limited’s NCS-55A1-24Q6H-SS is a cutting-edge networking chassis designed to meet the stringent requirements of modern data centers. With support for 1G to 100G speeds and MACSec security, it offers versatility and high performance for enterprises and service providers.
NCS-55A1-24Q6H-SS Product Highlights
- High-speed networking
- Multi-rate interfaces
- Enhanced security
- Scalable architecture
- Energy efficient
Product Features Comparison
| Model | NCS-55A1-24Q6H-SS | NCS-5501-SE | NCS-5502 | NCS-5502-SE | NCS-5508 | NCS-5516 |
|---|---|---|---|---|---|---|
| Ports | 24×1/10G, 24×10/25G, 6x100G | 48×1/10G, 4×40/100G | 96×1/10G, 12×40/100G | 64×1/10G, 8×40/100G | 576×1/10G, 72x100G | 1152×1/10G, 144x100G |
| MACSec | Yes | No | No | No | Yes | Yes |
| Power Efficiency | High | Medium | Medium | Medium | High | High |
| Scalability | Modular | Fixed | Fixed | Fixed | Modular | Modular |
| Security | Advanced | Basic | Basic | Basic | Advanced | Advanced |
| Operating System | IOS XR | IOS XR | IOS XR | IOS XR | IOS XR | IOS XR |
NCS-55A1-24Q6H-SS Product Application Scenarios
- Data Center Networking
- Enterprise Backbone
- Cloud Service Providers
Optional Add-ons
| Model | Description |
|---|---|
| SFP-10G-SR | 10GBASE-SR SFP+ Transceiver Module |
| QSFP-100G-SR4-S | 100GBASE-SR4 QSFP28 Module |
| C9300-NM-8X | Network Module with 8x10G SFP+ Ports |
Get More Information
Discover unbeatable prices and fast shipping for the HKShanhai Group Limited NCS-55A1-24Q6H-SS. Access the detailed NCS-55A1-24Q6H-SS datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited NCS-55A1-24Q6H-SS Specification
NCS-55A1-24Q6H-SS Specifications |
|
| Brand | HKShanhai Group Limited |
| Product Family | NCS 5500 Series |
| Model | NCS-55A1-24Q6H-SS |
| Fixed Ports | 24 x 1/10G, 24 x 10/25G |
| Uplink Ports | 6 x 100G |
| Chassis Type | Fixed |
| Encryption | MACsec |
| Forwarding Capacity | Up to 4 Tbps |
| Packets Per Second | Up to 1.2 Bpps |
| Power Supply | AC/DC |
| Redundancy | Yes, N+1 power redundancy |
| Cooling | Front-to-back cooling |
| Mounting | Rack mountable |
| MAC Address Table Size | Up to 128K |
| Latency | < 1 microsecond |
| Operating Temperature | -5C to 45C |
| Storage Temperature | -40C to 70C |
| Management Ports | 1 x RJ-45 console, 1 x USB 2.0 |
| Operating System | IOS XR |
| Dimensions | 44.45 mm x 482.6 mm x 450 mm (H x W x D) |
