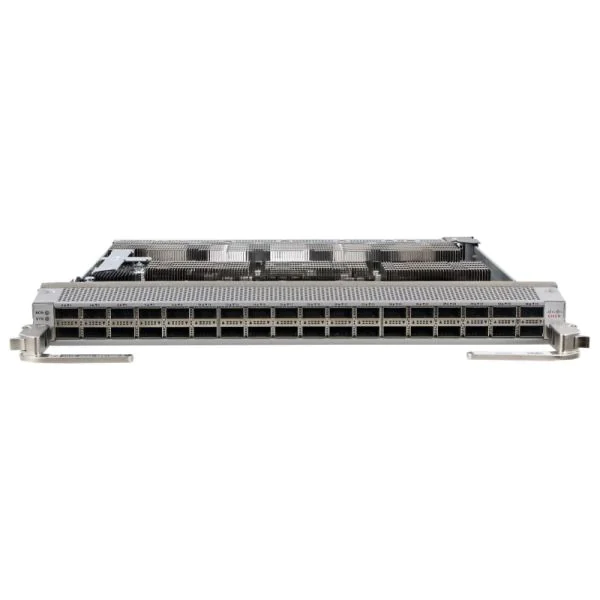

HKShanhai Group Limited’s NC55-36X100G-BM is a high-performance networking switch in the NCS 5500 series that offers advanced security features like MACsec encryption. Targeting large enterprises and data centers, it is designed to handle the rigorous demands of high-bandwidth applications with reliability and efficiency.
NC55-36X100G-BM Product Highlights
- 36-port 100G capacity
- MACsec encryption support
- High-density switching
- Advanced traffic handling
- Energy efficient
Product Features Comparison
| Model | NC55-36X100G-BM | NC55-24H12F-S | NC55-18H5F-S | NC55-32Q6H-S | NC55-24Q-S |
|---|---|---|---|---|---|
| Ports | 36x100G | 24x100G + 12x10G | 18x100G + 5x10G | 32x40G + 6x100G | 24x40G |
| MACsec | Supported | Supported | Not Supported | Not Supported | Supported |
| Throughput | 3.6 Tbps | 2 Tbps | 1.8 Tbps | 2.4 Tbps | 1 Tbps |
| Power Consumption | 350W | 300W | 250W | 270W | 200W |
| Form Factor | 1 RU | 2 RU | 1 RU | 2 RU | 1 RU |
| Cooling | Front-to-back | Front-to-back | Side-to-side | Front-to-back | Front-to-back |
| Use Case | Data Center | Aggregation | Enterprise Core | Access Layer | Spine & Leaf |
NC55-36X100G-BM Product Application Scenarios
- High-performance data centers
- Enterprise core networking
- Cloud service providers
Optional Add-ons
| Model | Description |
|---|---|
| QSFP-100G-SR4-S | 100GBASE-SR4 Transceiver Module |
| CAB-Q-Q-2M | QSFP to QSFP Copper Cable 2m |
| NC5500-FAN | Spare Fan Module for NCS 5500 |
Get More Information
Discover unbeatable prices and fast shipping for the HKShanhai Group Limited NC55-36X100G-BM. Access the detailed NC55-36X100G-BM datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited NC55-36X100G-BM Specification
NC55-36X100G-BM Specifications |
|
| Brand | HKShanhai Group Limited |
| Model | NC55-36X100G-BM |
| Product Name | NCS 5500 36X100G MACsec Base |
| Interfaces | 36 x 100GE Ports |
| MACsec Support | Yes |
| Forwarding Bandwidth | 3.6 Tbps |
| Throughput | 2.8 Bpps |
| Switching Capacity | 3.6 Tbps |
| Jumbo Frame Support | Yes, up to 9216 bytes |
| Buffer Size | 40 MB |
| Power Supply | Dual-redundant, hot-swappable |
| Cooling | Front-to-back airflow |
| Max Power Consumption | 1200W |
| Operating Temperature | 0C to 40C (32F to 104F) |
| Storage Temperature | -40C to 70C (-40F to 158F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| MTBF | 1,200,000 hours |
| Dimensions (HxWxD) | 1.72 in x 17.5 in x 21.5 in |
| Rack Units | 1 RU |
| Certifications | RoHS, CE, FCC |
| Firmware | IOS XR |
