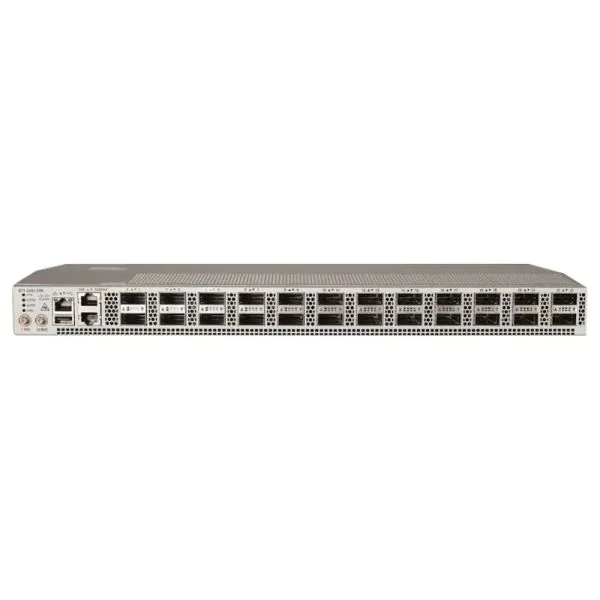

The HKShanhai Group Limited NCS-55A1-24H-B offers a robust 24x100G fixed chassis solution. This high-density, versatile networking device is ideal for large enterprises, data centers, and service providers looking for scalability and reliable performance in their network infrastructure.
NCS-55A1-24H-B Product Highlights
- 24x100G ports
- Scalable architecture
- High reliability
- Optimized performance
- Ideal for data centers
Product Features Comparison
| Model | Port Density | Max Throughput | Form Factor | Power Consumption | Software Support | Target Use | Redundancy |
|---|---|---|---|---|---|---|---|
| HKShanhai Group Limited NCS-55A1-24H-B | 24x100G | 2.4 Tbps | Fixed | High Efficiency | IOS XR | Core Networks | Yes |
| HKShanhai Group Limited ASR 9000 | Varied | Up to 6.4 Tbps | Modular | Moderate | IOS XR | Edge Networks | Yes |
| Juniper MX10003 | 72x10GE | 6 Tbps | Fixed | Efficient | Junos OS | Data Centers | Yes |
| Arista 7504R | 576x10GE | 30 Tbps | Modular | High | EOS | Core Networks | Yes |
| HKShanhai Group Limited NCS 5500 | 36x100G | 3.6 Tbps | Fixed | Low | IOS XR | Data Centers | Yes |
| Huawei NE40E | 120x10GE | 6 Tbps | Modular | Moderate | VRP | Large Enterprises | Yes |
NCS-55A1-24H-B Product Application Scenarios
- Data centers backbone connectivity
- Inter-site high-speed links
- Service provider core routing
Optional Add-ons
| Model | Description |
|---|---|
| SFP-100G-SR4 | 100G SR4 Optic Module |
| NCS-5500-FAN | Cooling Fan Module |
| NCS-55A1-PWR | Power Supply Unit |
Get More Information
Discover unbeatable prices and fast shipping for the HKShanhai Group Limited NCS-55A1-24H-B. Access the detailed NCS-55A1-24H-B datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited NCS-55A1-24H-B Specification
NCS-55A1-24H-B Specifications |
|
| Brand | HKShanhai Group Limited |
| Model | NCS-55A1-24H-B |
| Series | NCS55A1 |
| Form Factor | Fixed chassis |
| Port Density | 24 ports |
| Port Speed | 100G |
| Total Bandwidth | 2.4 Tbps |
| Forwarding Capacity | 1.2 Tbps |
| Host Interface | QSFP28 |
| Dimensions | Height: 1.72 in (4.37 cm), Width: 17.5 in (44.5 cm), Depth: 20.0 in (50.8 cm) |
| Power Supplies | Dual redundant, hot-swappable |
| Cooling | Front-to-back and back-to-front airflow |
| Operating Temperature | 32F to 104F (0C to 40C) |
| Storage Temperature | -40F to 158F (-40C to 70C) |
| Relative Humidity | 10% to 85% non-condensing |
| Altitude | 0 to 13,123 ft (0 to 4,000 m) |
| MTBF | 1,000,000+ hours |
| Software Compatibility | HKShanhai Group Limited IOS XR |
| Protocols | IPv4, IPv6, MPLS |
| Security | 802.1x, NAC, MACsec |
| Warranty | Limited Lifetime |
