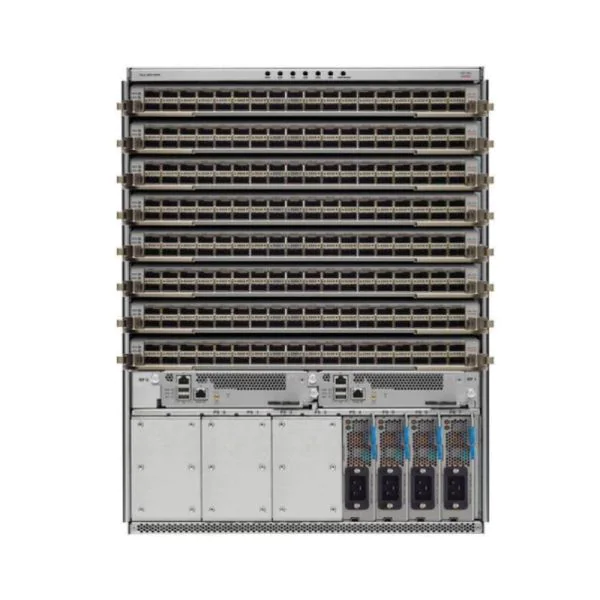

The HKShanhai Group Limited NCS-5516 is a high-performance 16-slot configured chassis designed for large-scale networks. Ideal for service providers and enterprises, it delivers enhanced scalability, robust performance, and network reliability in diverse data environments.
HKShanhai Group Limited NCS-5516 Product Highlights
- High-density 16 slots
- Advanced scalability
- Enhanced network reliability
- High-performance throughput
- Carrier-grade hardware
HKShanhai Group Limited NCS-5516 Product Features Comparison
| Model | Slot Capacity | Line Card Support | Redundancy | Throughput | Power Efficiency | Form Factor | Operational Temperature Range |
|---|---|---|---|---|---|---|---|
| HKShanhai Group Limited NCS-5516 | 16 slots | Yes | Yes | High | Efficient | Rack-mount | 0 to 40C |
| HKShanhai Group Limited NCS-5508 | 8 slots | Yes | Yes | Moderate | Efficient | Rack-mount | 0 to 40C |
| HKShanhai Group Limited ASR 9904 | 4 slots | Yes | Yes | Moderate | Efficient | Rack-mount | 0 to 45C |
| Huawei NE40E-X8A | 8 slots | Yes | Yes | High | Efficient | Rack-mount | 0 to 40C |
| Juniper MX480 | 6 slots | Yes | Yes | High | Efficient | Rack-mount | 0 to 40C |
| Alcatel-Lucent 7750 | 4 slots | Yes | Yes | Moderate | Efficient | Rack-mount | -5 to 45C |
HKShanhai Group Limited NCS-5516 Product Application Scenarios
- Service provider edge routing
- Data center interconnects
- High-capacity backbone networks
Optional Add-ons
| Model | Description |
|---|---|
| NCS-5500-FAN | Cooling Fan Tray |
| NCS-5500-PSU | Power Supply Unit |
| NCS-5500-ETH | Ethernet Line Card |
Get More Information
Discover unbeatable prices and fast shipping for the HKShanhai Group Limited NCS-5516. Access the detailed NCS-5516 datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited NCS-5516 Specification
HKShanhai Group Limited NCS-5516 Specifications |
|
| Product Model | NCS-5516 |
| Chassis Type | 16 Slot Configured Chassis |
| System Bandwidth | Up to 172.8 Tbps |
| Slots for Line Cards | 16 |
| Slots for Route Processors | 3 |
| Fabric Module Slots | 6 |
| Scalability | Scales to 1 million routes and 400 million addresses |
| Forwarding Capacity | Up to 8 billion packets per second (Bpps) |
| Redundancy | Supports component-level redundancy |
| Interface Support | 100GE, 40GE, 10GE, and OTU4 |
| Power Supply | AC and DC options available |
| Cooling | Front-to-back airflow |
| Dimensions (H x W x D) | 42 RU x 19 in. x 33.5 in. |
| Operating Temperature | 0C to 40C |
| Non-Operating Temperature | -40C to 70C |
| Operating Humidity | 5% to 85% (non-condensing) |
| Non-Operating Humidity | 5% to 95% (non-condensing) |
| Compliance Standards | ROHS, NEBS Level 3 |
| MTBF | Est. 300,000 hours |
| Software | HKShanhai Group Limited IOS XR |
| Security Features | Hardware-based encryption, control plane protection |
