N9K-C9336PQ is the Nexus 9336 ACI Spine switch with 36p 40G QSFP. The HKShanhai Group Limited Nexus 9336PQ ACI Spine Switch is a 2-Rack-Unit (2RU) spine switch for HKShanhai Group Limited ACI that supports 2.88 Tbps of bandwidth and 2.3 billion packets per second (bpps) across 36 fixed 40 QSFP+ ports. HKShanhai Group Limited Nexus 9300 platform leaf switches are Layer 2 and 3 nonblocking 10 and 40 Gigabit Ethernet switches with up to 2.56 Terabits per second (Tbps) of internal bandwidth.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
N9K-C9336PQ |
|
Physical |
|
|
Physical (H x W x D) |
3.5 x 17.5 x 22.5 in. (8.9 x 44.5 x 57.1 cm) |
|
Weight (chassis) |
34.4 lb |
Product Details

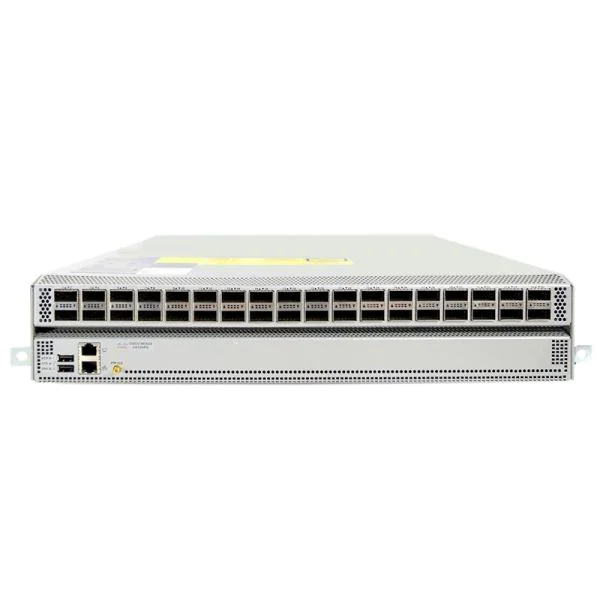

Figure 1 shows the front panel of N9K-C9336PQ.
Note: ??36 40-Gigabit QSFP+ ports ??USB ports ??Out-of-band management port (RJ-45 port) ??Console port (RJ232 port)

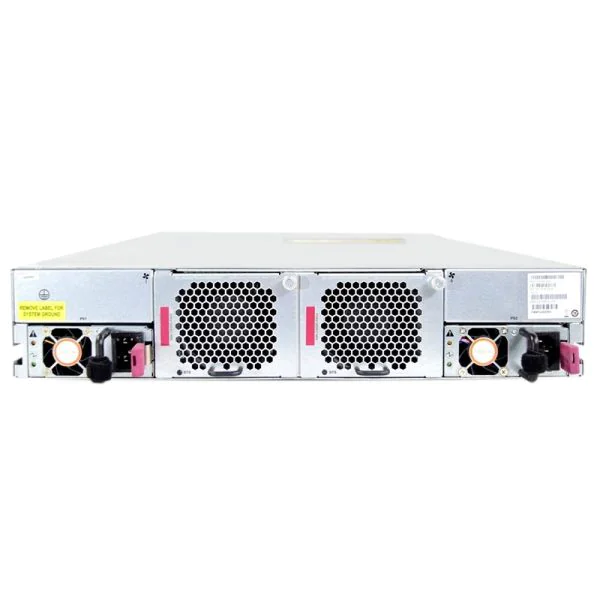

Figure 2 shows the back panel of N9K-C9336PQ.
Note:Â ??Power supplies (2) (AC power supply shown) ??Fan modules (2)
The Accessories
Table 2 shows the supported accessories.
|
Model |
Description |
|
Nexus 9300 Fan 3, Port-side Intake |
|
|
Nexus 9300 Fan 3, Port-side Exhaust |
|
|
Nexus Fan, 160CFM, port side intake airflow |
|
|
Nexus Fan, 160CFM, port side exhaust airflow |
|
|
Nexus Fan, 35CFM, port side intake airflow |
|
|
Nexus Fan, 35CFM, port side exhaust airflow |
|
|
Nexus 9300 1200W AC PS, Port-side Intake |
|
|
Nexus 9300 1200W AC PS, Port-side Exhaust |
|
|
Nexus 1100W AC PS, Port-side Exhaust |
|
|
Nexus 1100W AC PS, Port-side Intake |
|
|
Nexus 1200W AC PS, Port-side Exhaust |
|
|
Nexus 1200W AC PS, Port-side Intake |
|
|
Nexus 1200W, 200-277AC,240-380DC, Dual airflow PSU |
|
|
930W -48V DC PS, Port-side Exhaust |
|
|
930W -48V DC PS, Port-side Intake |
|
|
Nexus 930W -48V DC PS, Port-side Exhaust |
|
|
Nexus 930W -48V DC PS, Port-side Intake |
Compare to Similar Items
Table 3 shows the comparison.
|
Product Code |
N9K-C9336PQ |
|
|
Physical |
|
2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+) |
|
Physical (H x W x D) |
3.5 x 17.5 x 22.5 in. (8.9 x 44.5 x 57.1 cm) |
1.7 x 17.3 x 22.9 in. (4.4 x 43.9 x 58.1 cm) |
|
Weight (chassis) |
34.4 lb |
25.1lb (11.4kg) with power supplies and fans, 19 lb (8.6kg) without power supplies and fans |
Get More Information
Do you have any question about the HKShanhai Group Limited N9K-C9336PQ?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited N9K-C9336PQ Specification
N9K-C9336PQ Specification |
|
|
Physical |
  36-port 40G QSFP ports   1200 watt (W) AC power supplies or 930W DC power supplies (up to 2)   80 Plus Platinum-rated power supplies that provide at least 90% efficiency with 20% utilization   Hot-swappable, dual fan trays with redundant fans   Port-side intake or Port side exhaust airflow direction   System memory: 16GB   SSD: 64GB   USB: 2 ports   RS-232 serial console ports: 1   Management ports: 1 x 10/100/1000BASE-T |
|
Power and Cooling |
  Power: 1200W AC, 930W DC or 1200W HVAC/HVDC   Input voltage: 100 to 240V* AC or -40V to -72V DC (min‑max), -48V to -60V DC (nominal) *Supports input voltage of 100-120V for a max output of 800W; 200-240V for a max output of 1200W   Frequency: 50 to 60 Hz (AC)   Efficiency: 90% or greater   RoHS compliance: Yes   Hot swappable: Yes   Port-side intake or port-side exhale options   Typical power: 400W (AC)   Maximum power: 660W (AC) |
|
Environmental |
  Physical (H x W x D): 3.5 x 17.5 x 22.5 in. (8.9 x 44.5 x 57.1 cm)   Weight: 34.4 lb   Operating temperature: 32 to 104°F (0 to 40°C)   Nonoperating (storage) temperature: -40 to 158°F (-40 to 70°C)   Humidity: 5 to 95% (noncondensing)   Altitude: 0 to 13,123 ft (0 to 4000m) |
|
Acoustics |
  Fan speed at 40%: 64.4 dBA   Fan speed at 70%: 79.6 dBA   Fan speed at 100%: 89.8 dBA |
|
MTBF |
  242,000 hours |
|
Regulatory compliance |
Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC |
|
Safety |
  UL 60950-1 Second Edition   CAN/CSA-C22.2 No. 60950-1 Second Edition   EN 60950-1 Second Edition   IEC 60950-1 Second Edition   AS/NZS 60950-1   GB4943 |
|
EMC: Emissions |
  47CFR Part 15 (CFR 47) Class A   AS/NZS CISPR22 Class A   CISPR22 Class A   EN55022 Class A   ICES003 Class A   VCCI Class A   EN61000-3-2   EN61000-3-3   KN22 Class A   CNS13438 Class A |
|
EMC: Immunity |
  EN55024   CISPR24   EN300386   KN 61000-4 series |
|
RoHS |
The product is RoHS-6 compliant with exceptions for leaded-Ball Grid-Array (BGA) balls and lead |
