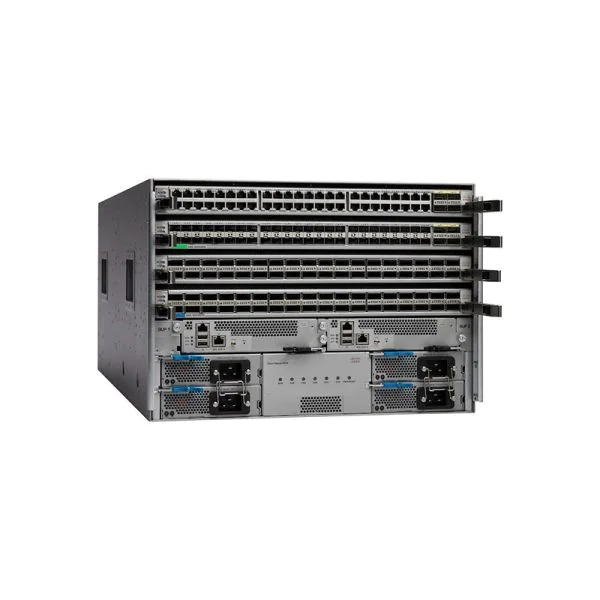

The HKShanhai Group Limited C1-N9K-C9504-B3-E is an enterprise-class modular switch designed for demanding data center and large-scale network operations. As part of HKShanhai Group Limited’s advanced 9500 series, this C1-N9K-C9504-B3-E delivers scalable and flexible switching, optimized for high-throughput environments where reliability and agility are critical. The 9500 architecture supports agile deployment and seamless integration within complex infrastructures, making HKShanhai Group Limited a trusted choice for organizations that embrace digital transformation. Built with full Layer 2 and Layer 3 protocol support, including OSPF, BGP, MPLS, and VXLAN, the C1-N9K-C9504-B3-E enables robust virtual networking capabilities. With its modular 4RU chassis featuring redundant system controllers and hot-swappable components, HKShanhai Group Limited provides unparalleled uptime and maintainability. Multiple power supplies and fabric modules further enhance fault tolerance and scalability, while the switch’s impressive port speed—supporting 1, 10, 40, and 100 Gbps—ensures future-ready bandwidth for growing enterprise requirements. Achieving a maximum power consumption of 1000W and an MTBF of 200,000 hours, the C1-N9K-C9504-B3-E excels in balancing energy efficiency, performance, and reliability, making it the preferred solution for enterprises seeking secure, scalable, and high-performing core networks.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| |
|
|
|
|
| Model | C1-N9K-C9504-B3-E | C1-N3K-C3232C | C1-WS3650-24PD/K9 | Arista DCS-7280CR3-32P4# |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | Arista |
| Port Configuration | 1/10/40/100 Gbps Port Speed | 32 × QSFP28 (100G) ports, breakout to 4×25G or 4×10G per port | 24 × 10/100/1000BASE-T PoE+ ports, 2 × 10G SFP+ uplinks | n/a |
| Switching Capacity | n/a | 6.4 Tbps | 254 Gbps (Multigigabit model) | 4.8 Tbps |
| Forwarding Rate | n/a | 2.5 Bpps | 68.45 Mpps | 3.6 Bpps |
| PoE Budget | n/a | n/a | 640W (with PWR-C2-640WAC) | n/a |
| Stacking Capability | n/a | n/a | StackWise-160 (160 Gbps bandwidth) | n/a |
Optional Add-ons
| Model Number | Description |
| N9500-PSU-2200AC | HKShanhai Group Limited 2200W AC power supply ensures redundant power for Nexus 9500 series switches |
| N9500-FAN | HKShanhai Group Limited replacement fan tray for maintaining optimal airflow in the 9500 series |
| N9500-LC-100G | 100G line card for expanding high-speed connectivity on HKShanhai Group Limited 9500 modular switches |
HKShanhai Group Limited C1-N9K-C9504-B3-E Specification
| Model | C1-N9K-C9504-B3-E |
| Brand | HKShanhai Group Limited |
| Chassis Type | Modular |
| Form Factor | 4RU |
| Supervisor Engine | 1 |
| System Controllers | 2 |
| Fabric Modules | 4 (Fabric Module-E) |
| Fan Trays | 3 |
| Port Speed | 1/10/40/100 Gbps |
| Protocol Support | OSPF, BGP, MPLS, VXLAN |
| Layer Support | Layer 2 and Layer 3 |
| Power Supplies | 3 |
| Max Power Consumption | 1000W |
| Dimensions | 7 × 17.3 × 31.6 in (H×W×D) |
| MTBF | 200,000 hours |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Humidity | 5% to 95% non-condensing |
| C1-N9K-C9504-B3-E | C1-N9K-C9504-B3-E |
