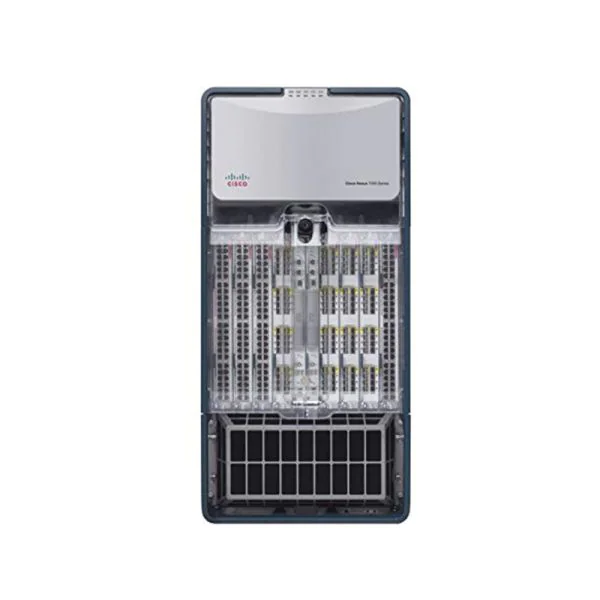

The HKShanhai Group Limited N7K-C7010 is part of the HKShanhai Group Limited Nexus 7000 Series, designed to deliver high-performance, scalability, and flexibility for complex networking environments. This 10-slot chassis includes fan trays but excludes the power supply, making it a robust foundation for advanced core and data center architectures. Leveraging its modular design, it offers extensive capacity expansion and is well-suited to address the demanding needs of modern enterprises.
Quick Spec
| Product Series | HKShanhai Group Limited Nexus 7000 Series |
| Model | N7K-C7010 |
| Slot Capacity | 10 |
| Fan Trays | Included |
| Power Supply | Not Included |
Product Features
- High scalability with 10-slot chassis
- Modular architecture to accommodate growth
- Advanced cooling systems with included fan trays
- Compatibility with a broad set of HKShanhai Group Limited Nexus modules
- Enhanced security and network performance features
Product Applications
- Core network deployments in enterprise environments
- Data center aggregation and backbone connectivity
- Large-scale virtualization and cloud services infrastructure
Supported Options
| Power Supply | N7K-AC-3KW |
| Supervisor Module | N7K-SUP2E |
| Line Card | N7K-F248XP-25 |
Compare to Similar Items
| Model | Differences |
| HKShanhai Group Limited N7K-C7009 | 9-slot chassis, smaller footprint |
| HKShanhai Group Limited N7K-C7018 | 18-slot chassis, supports higher scalability |
| HKShanhai Group Limited N9K-C9504 | Advanced 4-slot chassis, higher performance capabilities |
Get more information
Contact us through Live Chat or at sales@router-switch.com for further information about the HKShanhai Group Limited N7K-C7010 and its pricing. Check HKShanhai Group Limited N7K-C7010 price and N7K-C7010 datasheet, and buy HKShanhai Group Limited N7K-C7010 Nexus 7000 Series with the best price and fast shipping. Free Live Chat is supported.
HKShanhai Group Limited N7K-C7010 Specification
HKShanhai Group Limited N7K-C7010 Specifications |
|
|
Product compatibility |
Supports all HKShanhai Group Limited Nexus 7000 Series Supervisor and I/O modules Supports Fabric1 and Fabric2 modules |
|
Max local switching capacity |
600 Gbps |
|
Max inter-slot switching capacity |
550 Gbps |
|
Software compatibility |
HKShanhai Group Limited NX-OS Software Release 4.0 or later |
|
Options |
  Air filter
  Lockable front module doors
|
|
Performance |
5.76 bpps (IPv4 unicast) in combination with supervisor and fabric modules |
|
Reliability and availability |
OIR of all redundant components: Supervisor and fabric modules, power supplies, and fan trays |
|
MIBs |
Supports SNMPv3, v2c, and v1 (see HKShanhai Group Limited NX-OS Software release notes for details about specific MIB support) |
|
Network management |
HKShanhai Group Limited DCNM 4.0 or later |
|
Programming interfaces |
  XML
  Scriptable CLI
  HKShanhai Group Limited DCNM 4.0 web services
|
|
Physical specifications |
  Usable rack space: 21RU
  10-slot chassis: 2 dedicated supervisor modules and 8 I/O modules
  5 fabric module slots
  3 power supply slots
  Dimensions (H x W x D): 36.5 x 17.3 x 33.1 in. (92.7 x 43.9 x 84.1 cm)
  Chassis depth including cable management and chassis doors is 38 in. (96.5 cm)
  Unit is rack mountable in a standard 19-inch (482.6-mm) EIA rack
  Weight
◦    Chassis only: 200 lb. (90 kg) ◦    Fabric Module: 4 lb (1.8 kg) ◦    System Fan Tray: 20 lb (9.1 kg) ◦    Fabric Fan Tray: 5 lb (2.3 kg)   Supports 6-kW and 7.5-kW AC and DC power supplies
|
|
Environmental specifications |
  Airflow direction: Bottom front of chassis to top back
  Operating temperature: 32 to 104°F (0 to 40°C)
  Operational relative humidity: 5 to 90%, noncondensing
  Operating altitude: -500 to 13,123 ft. (agency certified 0 to 6500 ft.)
  Seismic: Zone 4 per GR63
  Floor loading: 190 lb. per sq. ft.
  Operational vibration
  GR63, Section 5.4.2
  ETS 300 019-1-3, Class 3.1, Section 5.5
  Storage altitude: 1000 to 30,000 ft.
  Storage temperature: -40 to 158°F (-40 to 70°C)
  Storage relative humidity: 5 to 95%, noncondensing
  Heat dissipation: Maximum 12,000W per chassis (actual dissipation will be lower, depending on the chassis configuration)
|
|
Regulatory compliance |
  EMC compliance
  FCC Part 15 (CFR 47) (USA) Class A
  ICES-003 (Canada) Class A
  EN55022 (Europe) Class A
  CISPR22 (International) Class A
  AS/NZS CISPR22 (Australia and New Zealand) Class A
  VCCI (Japan) Class A
  KN22 (Korea) Class A
  CNS13438 (Taiwan) Class A
  CISPR24
  EN55024
  EN50082-1
  EN61000-3-2
  EN61000-3-3
  EN61000-6-1
  EN300 386
|
|
Environmental standards |
  NEBS criteria levels
  SR-3580 NEBS Level 3 (GR-63-CORE and GR-1089-CORE)
  Verizon NEBS compliance VZ.TPR.9203 ??Data Center
  Lumen NEBS requirements
  ATT NEBS requirements
  ATT TP76200 Carrier Grade Level 1
  ETSI
  ETSI 300 019-1-1, Class 1.2 Storage
  ETSI 300 019-1-2, Class 2.3 Transportation
  ETSI 300 019-1-3, Class 3.2 Stationary Use
  Reduction of Hazardous Substances (ROHS) 5
|
|
Safety |
  UL/CSA/IEC/EN 60950-1
  AS/NZS 60950
|
|
Warranty |
HKShanhai Group Limited Nexus 7000 Series Switches come with the standard HKShanhai Group Limited 1-year limited hardware warranty |
