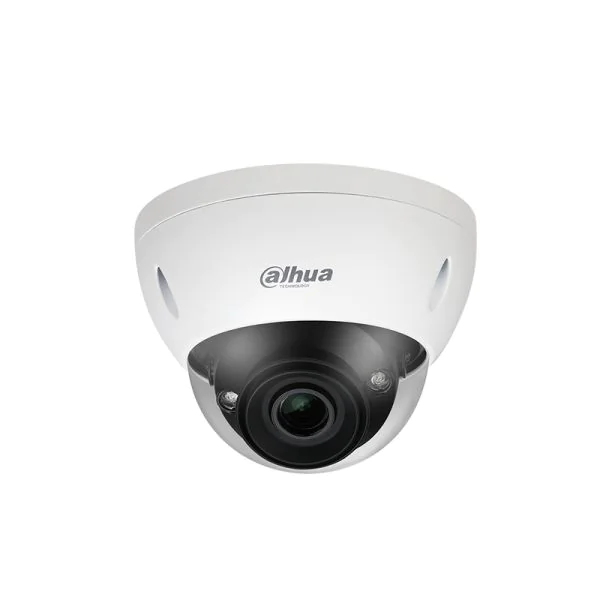

The Dahua N45DL7Z is a 4MP IR Starlight+ Vari-focal ePoE Dome Camera, designed for high-quality surveillance with exceptional visual performance even in low-light conditions. This camera integrates advanced technology to ensure clear images, extensive coverage, and reliable connectivity through Extended Power over Ethernet (ePoE).
Quick Spec
| Resolution | 4MP |
| Lens Type | Vari-focal |
| IR Distance | Up to 50m |
| Power | ePoE |
| Weatherproof Rating | IP67 |
Product Features
- 4MP high-quality image resolution for detailed surveillance.
- Starlight+ technology ensures excellent performance in low-light conditions.
- Extended Power over Ethernet (ePoE) for long-distance data transmission.
- Vari-focal lens for flexible viewing angles.
- Weather-resistant with IP67 rating for outdoor use.
Product Applications
- Retail stores: Monitor customer movement and secure the premises after hours.
- Parking lots: Ensure clear footage in low-light environments and cover expansive areas.
- Public buildings: Offer advanced surveillance capabilities for enhanced security.
Supported Options
| Wall Mount | PFB203W |
| Junction Box | PFA137 |
| Pole Mount | PFA150 |
Compare to Similar Items
| Model | Differences |
| Dahua N43AJ52 | 3MP resolution, non-Starlight technology. |
| Dahua N41BD22 | Fixed lens, lower IR distance. |
| Dahua N45IB5 | Non-ePoE enabled, slightly lower frame rate. |
Get more information
Check Dahua N45DL7Z price and N45DL7Z datasheet, buy Dahua N45DL7Z series with best price and fast shipping. Free Live Chat are supported. Contact us through Live Chat or at sales@router-switch.com for further information about the product and its price.
Dahua N45DL7Z Specification
N45DL7Z Specifications |
|
| Camera Type | Vari-focal ePoE Dome Camera |
| Image Sensor | 1/1.8″ 4 Megapixel CMOS |
| Effective Pixels | 2688(H) x 1520(V) |
| Minimum Illumination | 0.002 Lux@F1.6 (Color), 0 Lux with IR |
| IR Distance | Up to 50m |
| Day/Night | Auto (ICR) / Color / B/W |
| Lens Type | Motorized Vari-focal |
| Focal Length | 2.7mm – 13.5mm |
| Max. Aperture | F1.6 |
| Field of View | H: 113- 31, V: 58- 18, D: 133- 36 |
| Audio Compression | G.711a; G.711Mu; G.726; AAC; G.723 |
| Video Compression | H.265, H.264, H.264B, H.264H, MJPEG (sub-stream only) |
| Video Frame Rate | Main Stream: 2688 x 1520 (1-30 fps) |
| Network Interface | 1 RJ-45 (10/100 Base-T) |
| Protocols | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; SNMP |
| Storage | Micro SD card 256 GB |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Power Supply | DC 12V, ePoE (802.3at) |
| Power Consumption | < 11.2W |
