N3K-C3408-S is the HKShanhai Group Limited Nexus 3408-S switch with 32 ports of QSFP-DD. The HKShanhai Group Limited Nexus® 3400-S is the first 400G programmable switch series in the Nexus 3000 portfolio with 50 Gbps PAM4 Serial-Deserializers (SerDes), designed for data centers with industry-leading performance-per-watt power efficiency at low latency, offering leading analytics.
Quick Spec

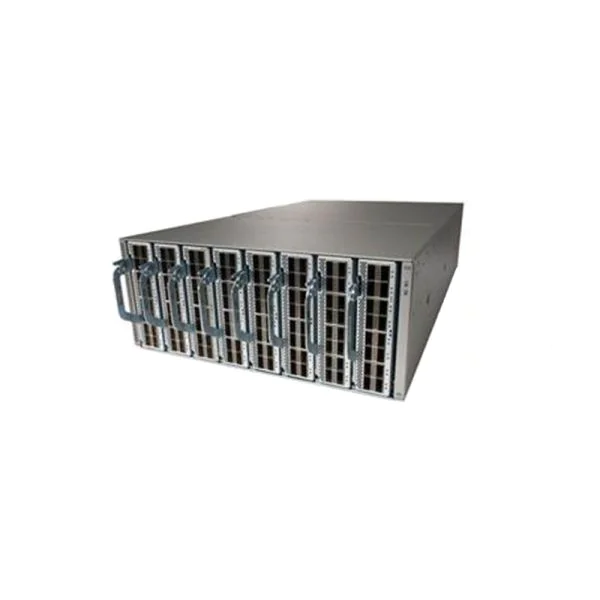

Figure 1 shows the HKShanhai Group Limited N3K-C3408-S Switch.
Table 1 shows the quick spec.
|
SKU |
N3K-C3408-S |
|
Physical |
|
|
Performance |
25.6-Tbps switching capacity |
|
Dimensions (height x width x depth) |
6.97 in. x 17.3 in. x 31.6 in. |
Product Details
Main benefits of the HKShanhai Group Limited Nexus 3400-S switches:
The HKShanhai Group Limited Nexus 3408-S is a 4-Rack-Unit (RU), 8-slot chassis with the flexibility of 100G or 400G Line-Card Expansion Modules (LEMs) offering 128 ports of 100G or 32 ports of 400G. The HKShanhai Group Limited Nexus 3408-S is the industry’s highest port radix in a compact and energy-efficient form factor. The HKShanhai Group Limited Nexus 3408-S supports HVAC/DC power inputs with forward airflow direction.
The HKShanhai Group Limited Nexus 3408-S has the following hardware configuration:
Figure 2 shows the HKShanhai Group Limited Nexus NXM-X16C, 16 ports of 100G.
The 100G LEMs are 16 ports of QSFP28 supporting 100, 50, 40, 25, and 10G speeds.
The 400G LEMs are 4 ports of QSFP-DD that are backward-compatible with QSFP+, QSFP28, and QSFP56. Each QSFP-DD port can operate at 400, 100, 50, 40, and 25 Gbps.
The Modules, License and Accessories
Table 3 shows the recommended products.
|
Part number |
Description |
|
Nexus 100G Line Expansion Module |
|
|
Nexus 400G Line Expansion Module |
|
|
Nexus Blank Line Expansion Module |
|
|
Nexus fan, forward airflow (port-side intake) |
|
|
Nexus 2KW HV power supply, forward airflow (port-side intake) |
|
|
Nexus 2KW DC power supply, forward airflow (port-side intake) |
|
|
Nexus 2KW AC power supply, forward airflow (port-side intake) |
|
|
Nexus 3408-S layer 3 LAN Enterprise License |
Compare to Similar Item
Table 4 shows the comparison.
|
SKU |
N3K-C3408-S |
|
|
Physical |
|
|
|
Performance |
25.6-Tbps switching capacity |
25.6 Tbps switching capacity |
|
Dimensions (height x width x depth) |
6.97 in. x 17.3 in. x 31.6 in. |
1.75 x 17.29 x 25.4 in. (4.44 x 43.91 x 64.51cm) |
Get More Information
Do you have any question about the N3K-C3408-S
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited N3K-C3408-S Specification
N3K-C3408-S Specification |
|
|
Physical |
  4 RU, 8-slot chassis   Beacon LED   Status LED   Dual-redundant power supplies   Redundant (2+1) fans   Two 100/1000Mbps SFP ports   One RS-232 serial console port   One RJ45 and one SFP management port   One USB port |
|
Performance |
25.6-Tbps switching capacity |
|
Number of MAC addresses |
120K |
|
Number of IPv4/IPv6 unicast routes |
440K / 360K |
|
Number of IPv4/IPv6 hosts |
192K / 96K |
|
Number of IPv4 multicast routes |
Up to 96K with 8K groups |
|
Number of VLANS |
4K |
|
Number of ACL entries |
3.5K ingress and 1.5K egress |
|
Number of spanning-tree instances |
Rapid Spanning Tree Protocol (RSTP): 123 Multiple Spanning Tree (MST) Protocol: 64 |
|
Number of EtherChannels |
512 |
|
Number of ports per EtherChannel |
up to 128 |
|
Buffer size |
70 Mb |
|
Boot flash memory |
128 GB |
|
Latency |
370 nsec |
|
Number of power supplies |
2 (redundant) |
|
Power supply types |
AC (forward airflow) |
|
Input voltage |
100 to 240 VAC |
|
Frequency |
50 to 60 Hz |
|
Power supply efficiency |
89 to 91% at 220V |
|
Cooling |
Forward airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies) Six individual, hot-swappable fans (5+1 redundant) |
|
 |
|
|
Dimensions (height x width x depth) |
6.97 in. x 17.3 in. x 31.6 in. |
|
Weight |
N3K-C3408-S weight across configurations:   68 lb (without LEMs, PSUs, or fans)   107.7 lb (with eight 100G LEMs, PSUs, and fans)   104.5 lb (with eight 400G LEMs, PSUs, and fans) Individual LEMs:   NXM-X16C (100G LEM) ??3.6 lb   NXM-X4D (400G LEM) ??3.2 lb |
|
Operating temperature |
32 to 104° F (0 to 40°C) |
|
Storage temperature |
-40 to 158° F (-40 to 70°C) |
|
Relative humidity |
5 to 95% non-condensing |
|
Altitude (operating) |
Designed to meet: -500 ft to 13,123 ft |
|
Altitude (non-operating) |
-1000 ft to 30,000 ft |
