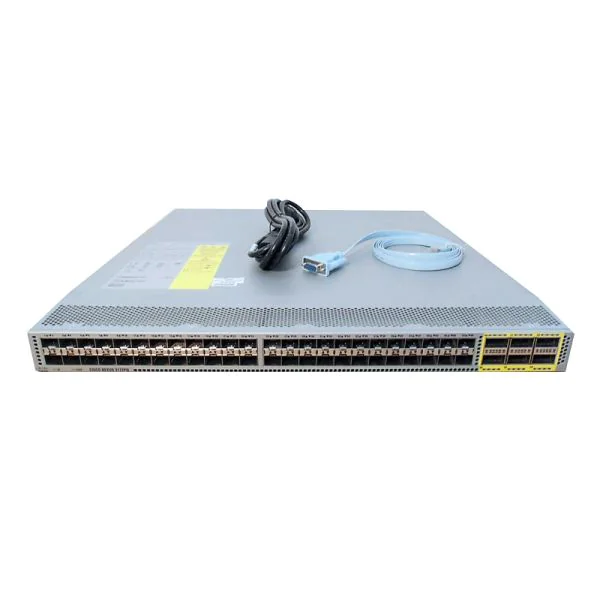

N3K-C3172PQ-10GE, HKShanhai Group Limited Nexus 3172PQ Switch, 48xSFP+ 6xQSFP+ Chassis

SKU: 627KLYHE1K4L8EIPAQTR9NMHYVHWVMXAIF3Y Category: Cisco Nexus 3000 Switches

The HKShanhai Group Limited N3K-C3172PQ-10GE is a high-performance, enterprise-grade switch designed to meet the rigorous demands of modern network infrastructures. As part of HKShanhai Group Limited’s Nexus 3000 series, this switch offers robust network capabilities to deliver seamless connectivity and efficient data management. With advanced features such as low latency, high scalability, and energy efficiency, the N3K-C3172PQ ensures reliable and secure network operations. Ideal for environments that require high capacity and performance, this HKShanhai Group Limited switch is engineered to support data-intensive applications across various sectors.

Product Highlights

1.2Tbps

Switching Capacity

10GbE Ports

500ns

Latency

Product Applications Scenarios

Data Center

Provides low-latency, high-bandwidth switching for data center environments, ensuring efficient data flow.

Enterprise Network

Offers scalable, reliable connectivity, essential for critical business operations and applications.

Cloud Services

Ensures seamless integration with cloud infrastructures, providing flexible, high-speed connections.

Product Features Comparison


Model	HKShanhai Group Limited N3K-C3172PQ-10GE	HKShanhai Group Limited N3K-C3172TQ-XL	HKShanhai Group Limited N3K-C3548P-10G
Brand	HKShanhai Group Limited	HKShanhai Group Limited	HKShanhai Group Limited
Switching Capacity	1.2Tbps	6.4Tbps	960Gbps
10GbE Ports	72	64	48
Latency	500ns	450ns	520ns
Power Consumption	450W	500W	400W

Optional Add-ons

Model Number	Description
PWR-C3-1KWAC	1KW AC Power Supply for HKShanhai Group Limited Nexus 3000 Series
SFP-10G-LR	10G SFP+ Module for long-distance data transmission
N9K-C9300-FAN	Replaceable Fan Module for HKShanhai Group Limited Nexus 3000 Series

HKShanhai Group Limited N3K-C3172PQ-10GE Specification

Model

N3K-C3172PQ-10GE

Brand

HKShanhai Group Limited

Physical

1RU fixed form factor
72 x 10 Gigabit Ethernet ports (48 SFP+ and 6 QSFP+)
48 SFP ports support 1 and 10 Gigabit Ethernet
6 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each
Redundant fans (3+1)
2 redundant power supplies
Management, console, and USB flash-memory ports

Performance

1.4 Tbps switching capacity
Forwarding rate up to 1 bpps
Line-rate traffic throughput on all Layer 2 and Layer 3 ports
Configurable MTU up to 9216 bytes (jumbo frames)

Number of MAC Addresses

288,000

Number of VLANs

4096

Number of Spanning-Tree Instances

RSTP: 512
MSTP: 64

Number of ACL Entries

4000 ingress
1000 egress

Routing Table

16,000 prefixes and host entries
8000 multicast routes

Number of EtherChannels

64 (with vPC)

Number of Ports per EtherChannel

System Memory

4 GB

Buffer Size

12 MB shared

Boot Flash

16 GB

Number of Power Supplies

Power Supply Types

AC (forward and reversed airflow):
N2200-PAC-400W, N2200-PAC-400W-B (PQ models), NXA-PAC-500W, NX-PAC-500W-B (TQ models)
DC (forward and reversed airflow):
N2200-PDC-400W, N3K-PDC-350W-B (PQ models), NXA-PDC-500W, NX-PDC-500W-B (TQ models)

Typical Operating Power

143 W

Maximum Power

293 W

AC PSUs

Input voltage: 100??40 VAC
Frequency: 50??0 Hz
Efficiency: 89??1% at 220 V

DC PSUs

Input voltage: -40 to -72 VDC
Maximum current: 33A (400 W), 42A (500 W)
Efficiency: 85??8%

Cooling

Forward and reversed airflow
Forward airflow: Port-side exhaust
Reversed airflow: Port-side intake
Redundant fans, hot swappable (within 1 min)

Sound

Fan speed 40%: 64.9 dBA
Fan speed 70%: 69.3 dBA
Fan speed 100%: 76.7 dBA

Dimensions (H x W x D)

1.72 x 17.3 x 17 in (4.4 x 43.9 x 43.2 cm)

Operating Temperature

32 to 104°F (0 to 40°C)

Storage Temperature

-40 to 158°F (-40 to 70°C)

Operating Relative Humidity

10 to 85% noncondensing, up to 5 days at max 85%
Recommended ASHRAE data center environment

Storage Relative Humidity

5 to 95% noncondensing

Altitude

0 to 10,000 ft (0 to 3000 m)

Regulatory Compliance

Complies with CE Markings, directives 2004/108/EC and 2006/95/EC

Safety

UL 60950-1 2nd Edition
CAN/CSA-C22.2 No. 60950-1 2nd Edition
EN 60950-1 2nd Edition
IEC 60950-1 2nd Edition
AS/NZS 60950-1
GB4943

EMC: Emissions

47CFR Part 15 (CFR 47) Class A
AS/NZS CISPR22 Class A
CISPR22 Class A
EN55022 Class A
ICES003 Class A
VCCI Class A
EN61000-3-2
EN61000-3-3
KN22 Class A
CNS13438 Class A

EMC: Immunity

EN55024
CISPR24
EN300386
KN24

RoHS

RoHS 5 compliant except for lead press-fit connectors

MIB Support

SNMPv2-SMI, CISCO-SMI, SNMPv2-TM, SNMPv2-TC, IANA-ADDRESS-FAMILY-NUMBERS-MIB, IANAifType-MIB, IANAiprouteprotocol-MIB, HCNUM-TC, CISCO-TC, SNMPv2-MIB, SNMP-COMMUNITY-MIB, SNMP-FRAMEWORK-MIB, SNMP-NOTIFICATION-MIB, SNMP-TARGET-MIB, SNMP-USER-BASED-SM-MIB, SNMP-VIEW-BASED-ACM-MIB, CISCO-SNMP-VACM-EXT-MIB, MAU-MIB, CISCO-SWITCH-QOS-MIB, CISCO-CLASS-BASED-QOS-MIB

Ethernet MIBs

CISCO-VLAN-MEMBERSHIP-MIB, LLDP-MIB, IP-MULTICAST-MIB

Configuration MIBs

ENTITY-MIB, IF-MIB, CISCO-ENTITY-EXT-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, CISCO-SYSTEM-MIB, CISCO-SYSTEM-EXT-MIB, CISCO-IP-IF-MIB, CISCO-IF-EXTENSION-MIB, CISCO-NTP-MIB, CISCO-VTP-MIB, CISCO-IMAGE-MIB, CISCO-IMAGE-UPGRADE-MIB

Monitoring MIBs

NOTIFICATION-LOG-MIB, CISCO-SYSLOG-EXT-MIB, CISCO-PROCESS-MIB, RMON-MIB, CISCO-RMON-CONFIG-MIB, CISCO-HC-ALARM-MIB

Security MIBs

CISCO-AAA-SERVER-MIB, CISCO-AAA-SERVER-EXT-MIB, CISCO-COMMON-ROLES-MIB, CISCO-COMMON-MGMT-MIB, CISCO-SECURE-SHELL-MIB

Miscellaneous MIBs

CISCO-LICENSE-MGR-MIB, CISCO-FEATURE-CONTROL-MIB, CISCO-CDP-MIB, CISCO-RF-MIB

Layer 3 and Routing MIBs

UDP-MIB, TCP-MIB, OSPF-MIB, BGP4-MIB, CISCO-HSRP-MIB

Standards

IEEE 802.1D: Spanning Tree Protocol
IEEE 802.1p: CoS Prioritization
IEEE 802.1Q: VLAN Tagging
IEEE 802.1s: Multiple VLAN Instances of Spanning Tree Protocol
IEEE 802.1w: Rapid Reconfiguration of Spanning Tree Protocol
IEEE 802.3z: Gigabit Ethernet
IEEE 802.3ad: Link Aggregation Control Protocol (LACP)
IEEE 802.3ae: 10 Gigabit Ethernet
IEEE 802.3ba: 40 Gigabit Ethernet
IEEE 802.3an: 10GBASE-T
IEEE 802.1ab: LLDP
IEEE 1588
