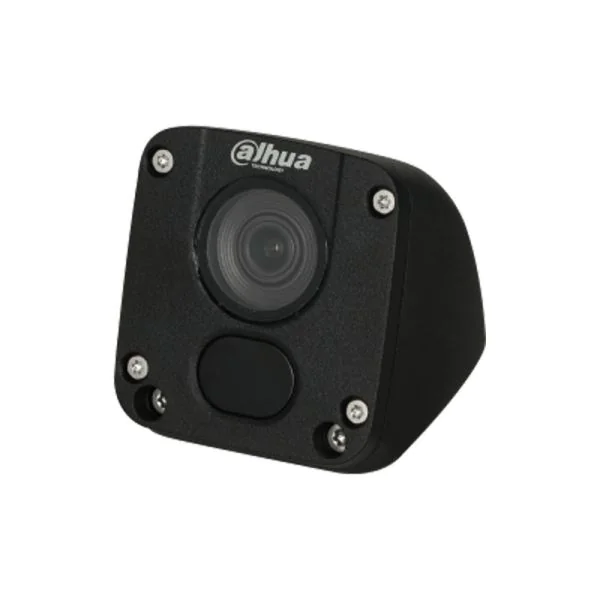

The Dahua IPC-MW1230D-VM12 is a high-performance 2MP IR mobile network camera designed for various mobile surveillance applications. It delivers crisp and clear images even in low light conditions, providing reliable security monitoring for both indoor and outdoor environments.
Quick Spec
| Image Sensor | 2 Megapixel CMOS |
| Resolution | 1920 x 1080 |
| IR Distance | Up to 20 meters |
| Lens | 2.8mm fixed lens |
| Power Supply | 12V DC, PoE |
Product Features
- High-resolution 2MP image sensor for detailed video clarity
- Integrated IR illuminator for clear night vision up to 20 meters
- Compact design suitable for mobile surveillance applications
- Supports Power over Ethernet (PoE) for simplified installation
- Wide Dynamic Range (WDR) technology for balanced image quality
Product Applications
- Public Transportation: Ensuring passenger safety and monitoring onboard activities in buses and trains
- Commercial Fleets: Providing security for delivery trucks and service vehicles
- Emergency Vehicles: Recording incidents and enhancing situational awareness in police cars and ambulances
Supported Options
| Mounting Bracket | MB-IPC-MW1230D |
| Network Cable | NC-IPC-MW1230D |
| Power Adapter | PA-IPC-MW1230D |
Compare to Similar Items
| Model | Key Differences |
| IPC-MW1120D-VM12 | Slightly lower resolution at 1MP, no PoE support |
| IPC-HW1230D-VM12 | Higher IR distance, adjustable focal length lens |
| IPC-MW1230DN-VM12 | Dual-lens setup for wide dynamic range, higher price |
Get more information
For further information about the Dahua IPC-MW1230D-VM12 and its pricing, feel free to contact us through Live Chat or email us at sales@router-switch.com.
Dahua MW1230D-VM12 Specification
IPC-MW1230D-VM12 Specifications |
|
| Brand | Dahua |
| Model | IPC-MW1230D-VM12 |
| Camera Type | IR Mobile Network Camera |
| Image Sensor | 1/2.82 Megapixel progressive scan CMOS |
| Effective Pixels | 1920 1080 |
| Minimum Illumination | 0.02 Lux/F1.6 (Color), 0 Lux/F1.6 (IR on) |
| IR Distance | Up to 30 meters |
| Day/Night | Auto (ICR)/Color/B/W |
| Shutter Speed | 1/3s ~ 1/100,000s |
| Lens Type | 3.6mm fixed lens |
| Angle of View | 78(H), 42(V), 94(D) |
| Video Compression | H.265/H.264H/MJPEG |
| Frame Rate | Main stream: 1080p (1~25/30fps) |
| Bit Rate | H.264: 32Kbps~8192Kbps; H.265: 12Kbps~6144Kbps |
| Audio | Two-way audio |
| Ethernet | RJ-45 (10/100Base-T) |
| Power Supply | DC12V, PoE (802.3af) |
| Power Consumption | < 5.6W |
| Ingress Protection | IP67 |
| Operating Temperature | -30C ~ +60C |
