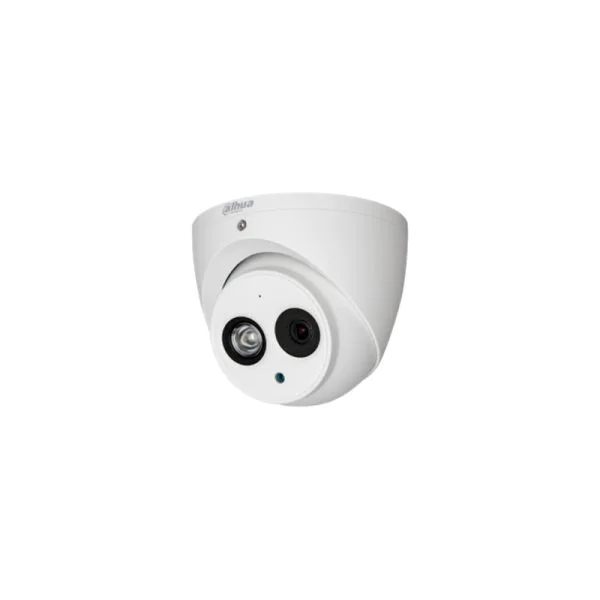

HAC-HDW1230EM-A, Dahua 2MP Starlight HDCVI IR Eyeball Camera, Starlight; Max. 30fps@1080P; HD and SD output switchable; Built-in mic; 3.6mm fixed lens (2.8mm, 6mm optional); Max. IR length 50m, Smart IR.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
HAC-HDW1230EM-A |
|
Image Sensor |
1/2.8″ CMOS |
|
Effective Pixels |
1920(H)x1080(V), 2MP |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
|
Minimum Illumination |
0.005Lux/F1.6, 30IRE, 0Lux IR on |
|
Focal Length |
3.6mm (2.8mm, 6mm Optional) |
|
Max Aperture |
F1.6 |
|
Angle of View |
H: 86.9�� (106.0��/52.9��) |
|
Focus Control |
N/A |
|
Close Focus Distance |
1200mm (600mm/2400mm) 47.2” (23.6”/94.5”) |
|
Casing |
Aluminium |
|
Dimensions |
��106mmx 93.7mm (��4.17″x 3.69″) |
Product Details
TheHAC-HDW1230EM-A provides these features:
*Starlight
* Max. 30fps@1080P
* HD and SD output switchable
* Built-in mic
* 3.6mm fixed lens (2.8mm, 6mm optional)
* Max. IR length 50m, Smart IR
* IP67, DC12V
Compare to Similar Items
Table 2shows the comparison.
|
Product Code |
HAC-HDW1230EM-A |
|||
|
Image Sensor |
1/2.8″ CMOS |
1/2.8″ CMOS |
1/2.8″ CMOS |
1/2.8″ CMOS |
|
Effective Pixels |
1920(H)x1080(V), 2MP |
1920(H)x1080(V), 2MP |
1920(H)x1080(V), 2MP |
1920(H)x1080(V), 2MP |
|
Minimum Illumination |
0.005Lux/F1.6, 30IRE, 0Lux IR on |
0.005Lux/F1.8, 30IRE, 0Lux IR on |
0.005Lux/F1.8, 30IRE, 0Lux IR on |
0.005Lux/F1.8, 30IRE, 0Lux IR on |
|
IR Distance |
Up to 50m (164feet) |
Up to 60m (197feet) |
Up to 60m (197feet) |
Up to 60m (197feet) |
|
IR LEDs |
1 |
2 |
2 |
2 |
|
Lens Type |
Fixed lens / Fixed iris |
Motorized lens / Fixed iris |
Motorized lens / Fixed iris |
Motorized lens / Fixed iris |
|
Focus Control |
N/A |
Motorized |
Motorized |
Motorized |
|
Close Focus Distance |
1200mm (600mm/2400mm) 47.2” (23.6”/94.5”) |
200mm 7.87” |
200mm 7.87” |
200mm 7.87” |
|
Audio Interface |
Built-in mic |
N/A |
N/A |
Built-in mic |
|
Power Supply |
12V DC ��30% |
12V DC ��30% |
12V DC ��30% |
POC/12V DC ��30% |
|
Power Consumption |
Max 4.7W (12V DC, IR on) |
Max 8.2W (12V DC, IR on) |
Max 8.2W (12V DC, IR on) |
Max 8.2W (12V DC, IR on) |
|
Dimensions |
��106mmx 93.7mm (��4.17″x 3.69″) |
��122mmx 104mm (��4.8″x 4.1″) |
��122mmx 104mm (��4.8″x 4.1″) |
��122mmx 104mm (��4.8″x 4.1″) |
GetMoreInformation
Do you have anyquestionabouttheHAC-HDW1230EM-A
Contact us now via Live Chat or sales@router-switch.com.
Dahua HAC-HDW1230EM-A Specification
HAC-HDW1230EM-A Specification |
||
|
Camera |
||
|
Image Sensor |
1/2.8″ CMOS |
|
|
Effective Pixels |
1920(H)x1080(V), 2MP |
|
|
Scanning System |
Progressive |
|
|
Electronic Shutter Speed |
PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
|
|
Minimum Illumination |
0.005Lux/F1.6, 30IRE, 0Lux IR on |
|
|
S/N Ratio |
More than 65dB |
|
|
IR Distance |
Up to 50m (164feet) |
|
|
IR On/Off Control |
Auto/ Manual |
|
|
IR LEDs |
1 |
|
|
Lens |
||
|
Lens Type |
Fixed lens / Fixed iris |
|
|
Mount Type |
Board-in |
|
|
Focal Length |
3.6mm (2.8mm, 6mm Optional) |
|
|
Max Aperture |
F1.6 |
|
|
Angle of View |
H: 86.9° (106.0°/52.9°) |
|
|
Focus Control |
N/A |
|
|
Close Focus Distance |
1200mm (600mm/2400mm) 47.2” (23.6”/94.5”) |
|
|
DORI Distance |
||
|
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. |
||
|
|
DORI Definition |
Distance |
|
Detect |
25px/m(8px/ft)
|
2.8mm: 39m(127ft) 3.6mm: 55m(181ft) 6mm: 83m(272ft) |
|
Observe |
63px/m(19px/ft)
|
2.8mm: 15m(51ft) 3.6mm: 22m(73ft) 6mm:33m(109ft) |
|
Recognize |
125px/m(38px/ft) |
2.8mm: 8m(25ft) 3.6mm: 11m(36ft) 6mm: 17m(54ft) |
|
Identify |
250ppm(76px/ft)
|
2.8mm: 4m(13ft) 3.6mm: 6m(18ft) 6mm: 8m(27ft) |
|
Pan / Tilt / Rotation |
||
|
Pan/Tilt/Rotation
|
Pan: 0° ~ 360° Tilt: 0° ~ 78° Rotation: 0° ~ 360° |
|
|
Video |
||
|
Resolution |
1080P (1920×1080) |
|
|
Frame Rate |
25/30fps@1080P, 25/30/50/60fps@720P |
|
|
Video Output |
1-channel BNC high definition video output / CVBS video output (Can switch) |
|
|
Day/Night |
Auto (ICR) / Manual |
|
|
OSD Menu |
Multi-language |
|
|
BLC Mode |
BLC / HLC / DWDR |
|
|
WDR |
DWDR |
|
|
Gain Control |
AGC |
|
|
Noise Reduction |
2D |
|
|
White Balance |
Auto / Manual |
|
|
Smart IR |
Auto / Manual |
|
|
Certifications |
||
|
Certifications
|
CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|
|
Interface |
||
|
Audio Interface |
Built-in mic |
|
|
Electrical |
||
|
Power Supply |
12V DC ±30% |
|
|
Power Consumption |
Max 4.7W (12V DC, IR on) |
|
|
Environmental |
||
|
Operating Conditions |
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -40°C (-40°F) |
|
|
Storage Conditions |
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
|
|
Ingress Protection & Vandal Resistance |
IP67 |
|
|
Construction |
||
|
Casing |
Aluminium |
|
|
Dimensions |
Φ106mm x 93.7mm (Φ4.17″ x 3.69″) |
