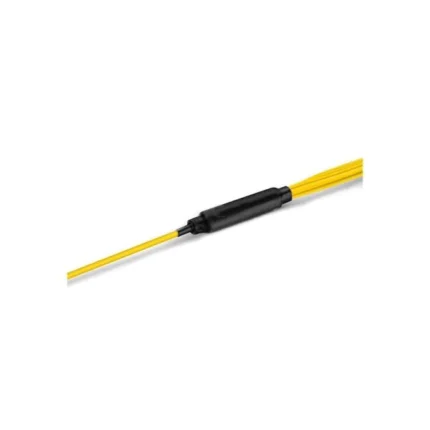

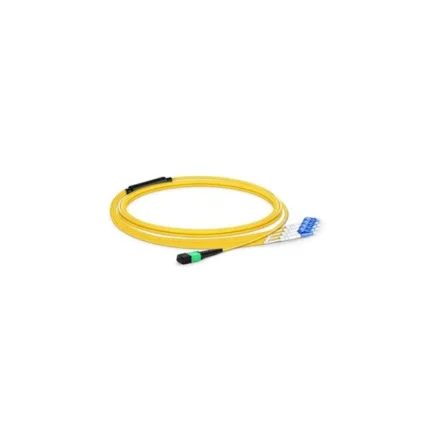

The Default Neutral-AMPOM-0.35M-24LC-G.652D-24C-0.9mm-FO0.35-L is a high-quality MPO/APC male to 24*LC/UPC fiber optic cable. Designed for efficient data transmission, it features G.652D fiber type, 24 cores, and a 0.9mm fanout round cable with a low-smoke zero-halogen (LSZH) sheath. This product ensures reliable performance in various demanding environments.
Quick Spec
| Connector Type | MPO/APC male to 24*LC/UPC |
| Length | 0.35M |
| Fiber Type | G.652D |
| Cores | 24 |
| Sheath | LSZH |
Product Features
- High-density MPO/APC male to LC/UPC connectors
- 0.35M fanout length for flexibility and convenience
- 24 cores for robust data transmission capability
- 0.9mm round fanout cable for durability
- Low-Smoke Zero-Halogen (LSZH) sheath for safety in enclosed spaces
Product Applications
- Data center interconnects and fiber optic network enhancements
- Telecommunication networks requiring high-density fiber connections
- Enterprise and industrial environments where space and safety are crucial
Supported Options
| Optional Connector | LC/UPC |
| Optional Sheath | OFNR |
| Optional Length | 1M, 2M, 3M |
Compare to Similar Items
| Model | Key Differences |
| Default Neutral-ABMOM-0.5M-12LC-G.652D-12C | 12 cores, 0.5M length |
| Default Neutral-ACMOM-1M-24LC-OM3-24C | OM3 fiber type, 1M length |
| Default Neutral-ADPOM-0.35M-8LC-G.657A1-8C | 8 cores, G.657A1 fiber type |
Get more information
Check “Default Neutral-AMPOM-0.35M-24LC-G.652D-24C-0.9mm-FO0.35-L” price and “Neutral-AMPOM-0.35M-24LC-G.652D-24C-0.9mm-FO0.35-L datasheet”, buy “Default Neutral-AMPOM series” with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, please contact us through Live Chat or at sales@router-switch.com.
Other AMPOM-0.35M-24LC-G.652D-24C-0.9mm-FO0.35-L Specification
Specifications of MPO/MTP fiber patch cords |
|||
|
Item |
Parameter |
||
|
Applicable connector type |
MPO end: MPO or MTP; branch end connector: FC, LC, SC, ST (customer’s choice) |
||
|
Fiber type |
Single-mode (G.652D;G.657A) |
Multi-mode (OM1,OM2,OM3,OM4) |
|
|
Working wavelength range |
1250~1650nm |
850nm, 1300nm |
|
|
Test wavelength |
1310nm, 1550nm |
850nm, 1300nm |
|
|
End face grinding type |
MPO end: APC; |
MPO end: UPC; |
|
|
Branch end connector: UPC or APC |
Branch end connector: UPC or APC |
||
|
Insertion loss (IL) |
MPO end: typical value??.50dB, maximum value??.70dB, low value(optional)??.35dB |
||
|
Branch-end connector: typical value??.20dB,maximum value??.30dB |
|||
|
Return loss (RL) |
MPO end:APC??0dB |
MPO end:??0dB |
|
|
Branch-end connector：UPC??0dB,APC??0dB |
Branch-end connector：≥35dB |
||
|
Optical cable type |
MPO end: ribbon optical cable, bundle optical cable; |
||
|
Branch end connector: 2.0 or 0.9mm loose tube fan-out |
|||
|
Repeatability |
??.10dB |
||
|
Interchangeability |
??.20dB |
||
|
Durability |
MPO: plug and unplug 500 times, typical change value ??.20dB |
||
|
Branch-end connector: plugged and unplugged 1000 times, typical change value ??.20dB |
|||
|
Vertical tension |
??20N (except 0.9mm optical cable) or customer requirements |
||
|
Working temperature |
-10℃ to +70??/p> |
||
|
Storage temperature |
-40℃ to +85??/p> |
||
|
Cable Jackets Color Codes |
SM: Yellow; OM4: Magenta; OM3: Aqua |
||
|
Connectors Color Codes |
SM: OS2: Green; OM4/OM3: Aqua |
||
|
Boots Color Codes |
8 Fibers: Grey; 12 Fibers: Black; 24 Fibers: Red |
||
Specifications of MPO/MTP Cassette（include adapter and harness cable) |
|||
|
Item |
Parameter |
||
|
Model |
RS-MPO-12C-TC-OM3 |
RS-MPO-24C-TC-OM3(or G.652D, OM4) |
|
|
Max. No. of Cores |
12 |
24 |
|
|
Material |
Typical: ABS+PC; Optional: Cold rolled steel |
||
|
Dimensions (mm) |
123 (L) x 97 (W) x 32 (H) (1.2mm thickness) |
||
|
Weight (kg) |
0.6kg |
||
|
Other |
Pls. choose MPO/MTP-LC cable model |
||
Specifications of MPO/MTP Management Rack |
|||
|
Item |
Parameter |
||
|
Model |
RS-MPO-IRA-4C-1U |
RS-MPO-DRA-4C-3U |
RS-MPO-IRA-12C-3U |
|
Max. No. of Modules |
4 |
4 |
12 |
|
Max. No. of Cores |
96 |
96 |
288 |
|
Material |
Cold rolled steel |
||
|
Approx Dimensions (mm) |
425 (L) x 350 (W) x 45 (H) (1.2mm thickness) |
425 (L) x 365 (W) x 45 (H) (1.2mm thickness) |
425 (L) x 345 (W) x 130 (H) (1.2mm thickness) |
|
Weight (kg) |
3 |
3 |
5 |
|
Other |
Pls. choose MPO/MTP Cassette model |
