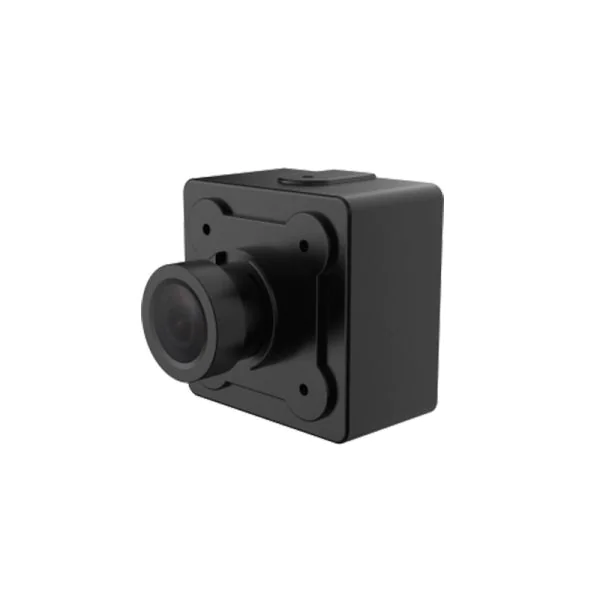

Introducing the Dahua IPC-HUM8431-L5, a 4MP Covert Pinhole Network Camera-Lens Unit designed for discreet surveillance operations. This high-performance camera requires a main box to function effectively, making it an ideal choice for covert and advanced monitoring applications. With its advanced technology and superior image quality, the IPC-HUM8431-L5 ensures reliable and efficient surveillance.
Quick Spec
| Resolution | 4MP |
| Camera Type | Covert Pinhole |
| Power Supply | Required from Main Box |
| Connectivity | Network Camera |
| Lens Unit | Included |
Product Features
- 4MP high-definition video quality
- Covert pinhole lens for discreet surveillance
- Remote access and control via network
- Requires a main box for operation
- Compatible with various Dahua security systems
Product Applications
- Banking: Monitor ATM areas and teller counters discreetly
- Retail: Keep an eye on cashier areas and prevent internal theft
- Public Spaces: Conduct unobtrusive surveillance in public transportation and waiting areas
Supported Options
| Power Supply Box | DAH-PSB-1234 |
| Network Cable | DAH-NCB-4567 |
| Mounting Kit | DAH-MK-7890 |
Compare to Similar Items
| Model | Differences |
| Dahua IPC-HUM8231-L | 3MP resolution, smaller field of view |
| Dahua IPC-HUM8331-L | 3MP resolution, internal storage support |
| Dahua IPC-HUM8531-L | 5MP resolution, wider field of view |
Get more information
For further details and pricing, contact our Live Chat or reach us at sales@router-switch.com. Check the Dahua IPC-HUM8431-L5 price and IPC-HUM8431-L5 datasheet, buy Dahua IPC-HUM8431-L5 with the best price and fast shipping. Free Live Chat is supported.
Dahua HUM8431-L5 Specification
IPC-HUM8431-L5 Specifications |
|
| Brand | Dahua |
| Model | IPC-HUM8431-L5 |
| Camera Type | 4MP Covert Pinhole Network Camera |
| Image Sensor | 1/3″ CMOS |
| Effective Pixels | 2688 1520 |
| Minimum Illumination | 0.01Lux/F5.3 (Color, 1/3s, 30IRE) |
| Lens | 3.6mm, Pinhole |
| Field of View | Horizontal: 80, Vertical: 44 |
| Day/Night | Electronic |
| IR Distance | Not Supported |
| Max. IR LEDs Length | Not Applicable |
| Digital Zoom | 16x |
| Video Compression | H.265, H.264 |
| Resolution | 2688 1520 @ 30fps |
| Frame Rate | Main Stream: 2688 1520 @ 1/3 ~ 30fps |
| Bit Rate | H.264: 24Kbps ~ 8192Kbps, H.265: 14Kbps ~ 8192Kbps |
| Network Interface | 1 RJ45 10M/100M Ethernet Port |
| Operate Condition | -30C ~ +60C (-22F ~ +140F)/ Less than 95% RH |
| Power Supply | DC12V, PoE (802.3af) |
| Power Consumption | Max 6W |
| Ingress Protection | IP67 |
| Dimensions | Lens Unit: 70.0mm x 20.0mm x 15.0mm, Main Box: 128.8mm x 106.8mm x 22.0mm |
| Storage | Micro SD Card Slot, Up to 128 GB |
| Protocols | HTTP, HTTPS, QoS, FTP, SMTP, NTP, RTSP, RTP, TCP, UDP |
| Protection Level | KV10/11 |
