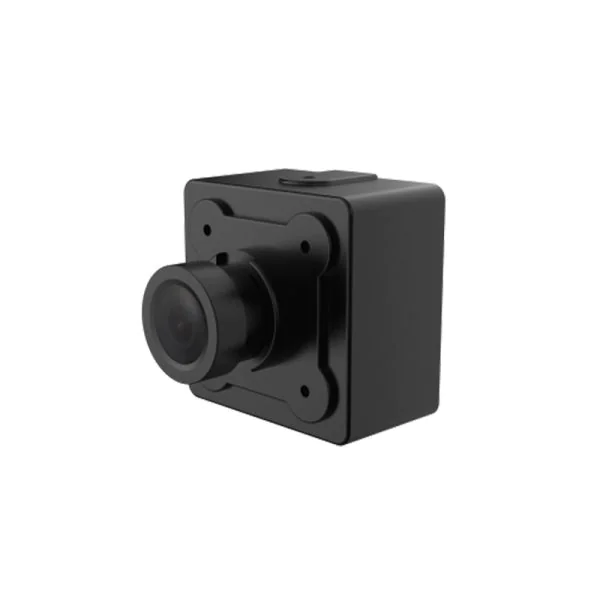

2MP Covert Pinhole Network Camera-Lens Unit.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
IPC-HUM8231-L5 |
|
Image Sensor |
1/2.8�� 2Megapixel progressive scan CMOS |
|
Scanning System |
Progressive |
|
Effective Pixels |
1920(H)x1080(V) |
|
Minimum Illumination |
0.02Lux/F2.1 (Color,1/3s,30IRE) 0.1Lux/F2.1 (Color,1/30s,30IRE) 0.01Lux/F2.1 (B/W,1/3s,30IRE) 0.05Lux/F2.1 (B/W,1/30s,30IRE) |
|
Lens Type |
Fixed |
|
Mount Type |
Board-in |
|
Focal Length |
2.8mm |
|
Max. Aperture |
F2.1 |
|
Angle of View |
H:111�� ,V:56�� |
Product Details
IPC-HUM8231-L5 provides these features and benefits:
> 1/2.8�� 2Megapixel progressive scan STARVIS CMOS
> Day/Night(Electronic), WDR
> 2.8mm Fixed Pinhole Lens
> 8-meters cable
> Require a Main Box to work together
Get More Information
Do you have any question about the IPC-HUM8231-L5
Contact us now via Live Chat or sales@router-switch.com.
Dahua HUM8231-L5 Specification
IPC-HUM8231-L5 Specification |
||||
|
Camera |
||||
|
Image Sensor |
1/2.8??2Megapixel progressive scan CMOS |
|||
|
Scanning System |
Progressive |
|||
|
Effective Pixels |
1920(H)x1080(V) |
|||
|
Minimum Illumination |
0.02Lux/F2.1 (Color,1/3s,30IRE) 0.1Lux/F2.1 (Color,1/30s,30IRE) 0.01Lux/F2.1 (B/W,1/3s,30IRE) 0.05Lux/F2.1 (B/W,1/30s,30IRE) |
|||
|
IR Distance |
N/A |
|||
|
IR On/Off Control |
N/A |
|||
|
IR LEDs |
N/A |
|||
|
Lens |
||||
|
Lens Type |
Fixed |
|||
|
Mount Type |
Board-in |
|||
|
Focal Length |
2.8mm |
|||
|
Max. Aperture |
F2.1 |
|||
|
Angle of View |
H:111° ,V:56° |
|||
|
Optical Zoom |
N/A |
|||
|
Focus Control |
Fixed |
|||
|
Close Focus Distance |
0.6m |
|||
|
DORI Distance |
Detect |
Observe |
Recognize |
Identify |
|
44m(144ft) |
18m(59ft) |
9m(29ft) |
4m(13ft) |
|
|
Pan/Tilt/Rotation |
||||
|
Pan/Tilt/Rotation Range |
N/A |
|||
|
Certifications |
||||
|
Certifications |
CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|||
|
Environmental |
||||
|
Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|||
|
Strorage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|||
|
Ingress Protection |
N/A |
|||
|
Vandal Resistance |
N/A |
|||
|
Construction |
||||
|
Casing |
Metal |
|||
|
Dimensions |
30mm×31mm×32.4mm(1.18”??.22”??.28?? |
