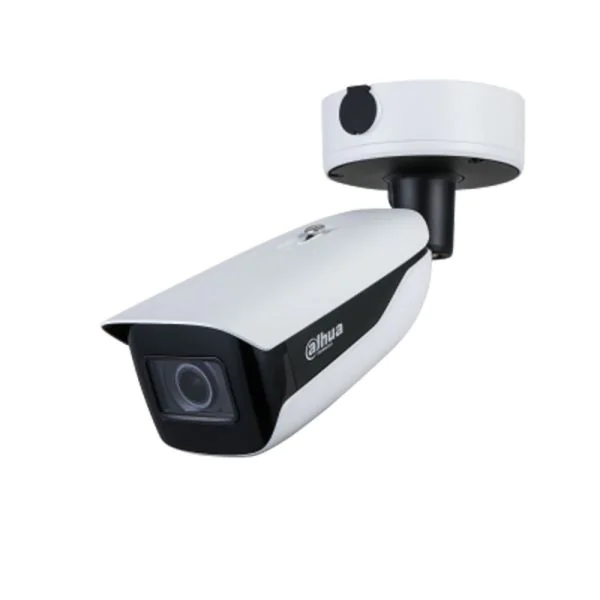

The Dahua IPC-HFW7442H-ZFR is a cutting-edge 4MP AI IR Bullet Network Camera designed to enhance your security with unparalleled image quality and advanced AI capabilities. This versatile camera is ideal for various security needs, providing clear and detailed footage even in low-light conditions. With intelligent features such as perimeter protection and face detection, it ensures comprehensive surveillance coverage.
Quick Spec
| Resolution | 4MP |
| Lens | Motorized 2.7-12mm |
| IR Distance | Up to 50m |
| Image Sensor | 1/1.8�� CMOS |
| Power Supply | PoE, 12V DC |
Product Features
- 4MP resolution providing superior image clarity
- Intelligent video analytics including face detection and people counting
- Motorized zoom lens for flexible viewing angles
- Enhanced low-light performance with up to 50m IR distance
- Weather-resistant design suitable for outdoor use
Product Applications
- Perimeter surveillance for corporate enterprises
- Traffic monitoring at critical intersections
- Enhanced security for residential premises
Supported Options
| Wall Mount Bracket | PFA130-E |
| Junction Box | PFA137 |
| Ceiling Mount | PFB203W |
Compare to Similar Items
| Model | Differences |
| Dahua IPC-HFW5442E-ZE | 3MP resolution, no AI features |
| Dahua IPC-HFW5831E-ZE | 8MP resolution, limited IR distance |
| Dahua IPC-HFW4231T-ASE | 2MP resolution, basic analytics |
Get more information
Check Dahua IPC-HFW7442H-ZFR price and IPC-HFW7442H-ZFR datasheet, buy Dahua IPC-HFW7442H-ZFR with best price and fast shipping. Free Live Chat are supported. Contact us through Live Chat or sales@router-switch.com for further information about the product and its price.
Dahua HFW7442H-ZFR Specification
| Model | DS-PWA64-Kit-WB |
| Brand | Hikvision |
| Type | Alarm Panel |
| Panel Capacity | 64 Zones |
| Communication Type | Wi-Fi, Ethernet |
| Wireless Range | 800 meters (open area) |
| Power Supply | 12V DC |
| Backup Battery | Li-ion battery (4.2V, 3,000mAh) |
| Working Temperature | -10°C to 55°C |
| Dimensions | 155mm x 155mm x 35mm |
| Humidity | 10% to 90% (no condensing) |
| Alarm Technology | Two-way wireless technology |
| Supported Sensors | Motion Sensors, Door/Window Sensors |
| Mobile App | Hik-Connect |
|
Camera |
|||||
|
Image Sensor |
1/1.8??4Megapixel progressive CMOS |
||||
|
Effective Pixels |
2688 (H) × 1520 (V) |
||||
|
ROM |
16 GB |
||||
|
RAM |
2 GB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s??/100000 s |
||||
|
Min. Illumination |
0.001 Lux@F1.2 |
||||
|
IR Distance |
Distance up to 60m (196.85 ft) |
||||
|
IR On/Off Control |
Auto/Manual |
||||
|
IR LEDs Number |
4 (IR LEDs) |
||||
|
Pan/Tilt/Rotation Range |
Pan: 0°??60° Tilt: 0°??0° Rotation: 0°??60° |
||||
|
Lens |
|||||
|
Lens Type |
Motorized vari-focal |
||||
|
Mount Type |
Module interface |
||||
|
Focal Length |
2.7??2 mm |
||||
|
Max. Aperture |
F1.2 |
||||
|
Field of View |
Horizontal: 114°(W)??7°(T) Vertical: 59°(W)??7°(T) Diagonal: 141° (W??5°(T) |
||||
|
Iris Type |
Auto aperture |
||||
|
Close Focus Distance |
W: 1 m (3.28ft) T: 2.5 m (8.20ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
W |
60.1 m (187.19 ft) |
24 m (78.74 ft) |
12 m (39.37 ft) |
6 m (19.69 ft) |
|
|
T |
128.6 m (421.92 ft) |
51.4 m (168.64 ft) |
25.7 m (84.32 ft) |
12.8 m (41.99 ft) |
|
|
Smart event |
|||||
|
General IVS Analytics |
Abandoned object, moving object |
||||
|
Professional, intelligent |
|||||
|
Perimeter Protection |
Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering. |
||||
|
Face Recognition |
Face recognition, track, priority, snapshot, face enhancement, face exposure, face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, sadness, disgust, fear, surprise, calm, happiness and confusion), mask, beard Face matting setting: face, single inch photo Two snapshot strategies: priority snapshot, recognition Face angle filter Priority time setting Management of 5 group face libraries Single person register and person register in batch Face recognition and similarity setting Max supports face contrast in face library with 200,000 faces |
||||
|
Video Metadata |
Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction. |
||||
|
People Counting |
People counting (count the entry number, exit number and pass number), display and output daily/monthly/annual statistics, No. in area |
||||
|
Intelligent Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
||||
|
Video |
|||||
|
Video Compression |
H.265, H.264, H.264H, H.264B, MJPEG |
||||
|
Smart Codec |
Yes |
||||
|
Video Frame Rate |
Main Stream: 2688 × 1520 (1??0/60 fps) |
||||
|
Stream Capability |
5 streams |
||||
|
Resolution |
4M (2688 × 1520), 3M (2304 × 1296), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) |
||||
|
Bit Rate Control |
CBR/VBR |
||||
|
Video Bit Rate |
H.264: 32??0240 kbps H.265: 12??0240 kbps |
||||
|
Day/Night |
ICR switch |
||||
|
BLC |
Yes |
||||
|
WDR |
140 dB |
||||
|
White Balance |
Auto/aatural/street lamp/outdoor/manual/regional custom |
||||
|
Gain Control |
Auto/Manual |
||||
|
Noise Reduction |
3D DNR |
||||
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||
|
Region of Interest(RoI) |
Yes (4 areas) |
||||
|
Electronic Image Stabilization(EIS) |
Yes |
||||
|
Smart IR |
Yes |
||||
|
Defog |
Yes |
||||
|
Image Rotation |
0°/90°/180°/270° (Supports 90°/270° with 1080p resolution or below.) |
||||
|
Mirror |
Yes |
||||
|
Privacy Masking |
4 areas |
||||
|
Audio |
|||||
|
Audio Compression |
G.711a; G.711Mu; G726; AAC; G.723 |
||||
|
Network |
|||||
|
Network |
RJ-45 (10/100/1000 Base-T) |
||||
|
Protocol |
HTTP; Https; 8021.x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; SFTP; RTMP; Genetec;Bonjour |
||||
|
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; P2P |
||||
|
Scene self-adaptation |
Yes |
||||
|
User/Host |
20 |
||||
|
Edge Storage |
FTP; Micro SD card (256 G); NAS; SFTP |
||||
|
Browser |
IE: Versions later than IE9 Google: Versions later than Chrome 42 Firefox: Versions later than Firefox 48.0.2 |
||||
|
Management Software |
Smart PSS, DSS PRO, NVR, IVSS, DMSS |
||||
|
Mobile Phone |
IOS, Android |
||||
|
Certification |
|||||
|
Certifications |
CE-LVD: EN60950-1 |
||||
|
Port |
|||||
|
RS-485 |
1 (Bit rate: 1200 bps??15200 bps) |
||||
|
Audio Input |
Audio Interface: 1/1 channel In/Out |
||||
|
Audio Output |
|||||
|
Alarm Input |
3 channel In: 5mA 5V DC 2 channel Out: 1000mA 30V DC/500mA 50V AC |
||||
|
Alarm Output |
|||||
|
Power |
|||||
|
Power Supply |
12V DC/24V AC/POE |
||||
|
Power Consumption |
<17.3W |
||||
|
Environment |
|||||
|
Operating Temperature |
-40°C to +60°C (-40°F to +140°F) |
||||
|
Operating Humidity |
??5% |
||||
|
Storage Temperature |
-40°C to +60°C (-40°F to +140°F) |
||||
|
Ingress Protection |
IP67, IK10 |
||||
|
Structure |
|||||
|
Casing |
Metal + Plastic |
||||
|
Dimensions |
340.1 mm × 108.5 mm × 92.9 mm (13.39″ × 4.27″ × 3.66″) (L × W × H) |
||||
|
Net Weight |
1600g (3.53 lb) |
||||
|
Gross Weight |
2400g (5.29 lb) |
