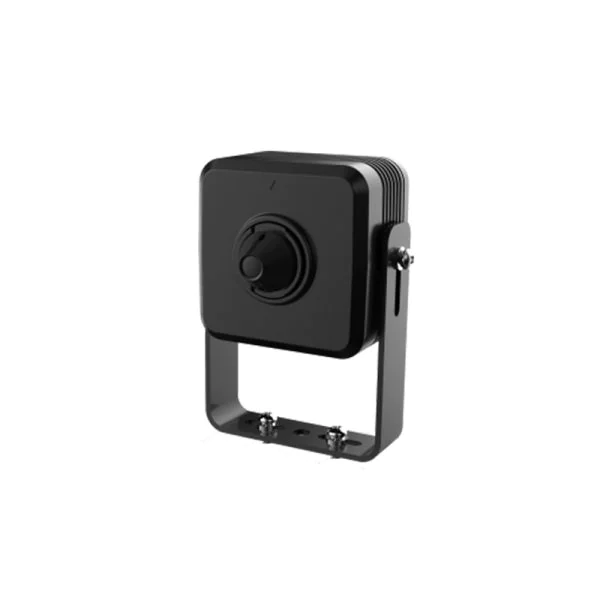

The Dahua IPC-HUM4231 is a high-performance pinhole network camera designed to deliver exceptional image quality with its 2MP sensor and 2.8 mm pinhole lens. This compact and versatile camera is equipped with advanced Wide Dynamic Range (WDR) technology, making it an ideal choice for security applications requiring discreet surveillance solutions.
Quick Spec
| Resolution | 2MP |
| Lens | 2.8 mm pinhole |
| WDR | 120 dB |
| Frame Rate | 30fps @ 1920×1080 |
| Audio Support | Built-in Mic |
Product Features
- 2MP high-resolution image capture
- 2.8 mm pinhole lens for discreet installation
- 120 dB Wide Dynamic Range (WDR) for challenging lighting conditions
- Real-time streaming at 30fps with 1920×1080 resolution
- Built-in microphone for audio capture
Product Applications
- Banking and financial institutions requiring covert surveillance
- Retail environments for monitoring point-of-sale areas
- Offices and meeting rooms for unobtrusive security
Supported Options
| Mounting Bracket | DH-PFB203W |
| Extension Cable | DH-PFM920I-5M |
| Power Adapter | DH-PFM321D-US |
Compare to Similar Items
| Model | Difference |
| Dahua IPC-HUM4231S | Smaller form factor |
| Dahua IPC-HUM8221 | Higher resolution at 8MP |
| Dahua IPC-HUM4431 | Wider angle lens at 4 mm |
Get more information
For further details and pricing on the Dahua IPC-HUM4231, use our Live Chat or contact us at sales@router-switch.com. Check Dahua IPC-HUM4231 price and IPC-HUM4231 datasheet, buy Dahua IPC-HUM4231 Network Camera with the best price and fast shipping. Free Live Chat support is available.
Dahua HUM4231 Specification
IPC-HUM4231 Specifications |
|
| Brand | Dahua |
| Model | IPC-HUM4231 |
| Image Sensor | 1/2.8 Inch CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Minimum Illumination | 0.01 Lux at F2.0 |
| Lens | 2.8 mm Pinhole Lens |
| Field of View | H: 94��, V: 50��, D: 109�� |
| Video Compression | H.265, H.264, MJPEG |
| Max. IR Distance | 10 meters |
| WDR (Wide Dynamic Range) | 120 dB |
| Day/Night | ICR |
| Network Protocols | TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP |
| Storage | Micro SD, up to 128 GB |
| Audio Compression | G.711a, G.711Mu, AAC, G.726 |
| Operating Conditions | -30��C ~ +60��C (-22��F ~ +140��F) / Less than 95% RH |
| Ingress Protection | IP67 |
| Power Supply | 12V DC/PoE (IEEE 802.3af) |
| Power Consumption | < 5.5W |
| Dimensions | 100 mm x 77.9 mm x 103.5 mm |
| Network Interface | 1 RJ-45 (10/100Base-T) |
