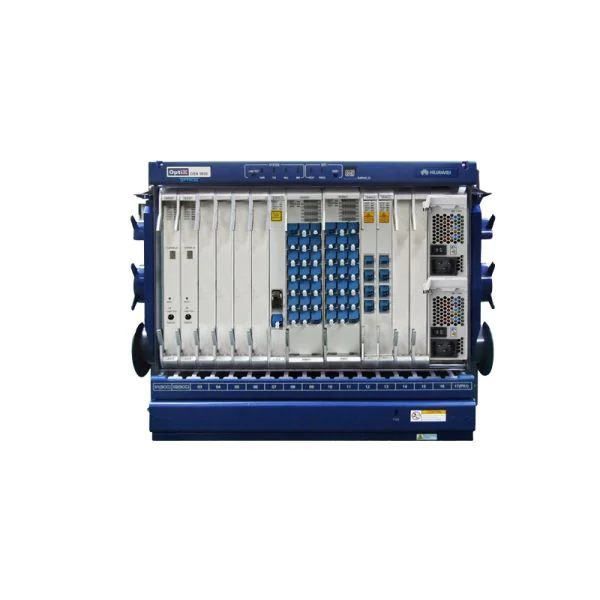

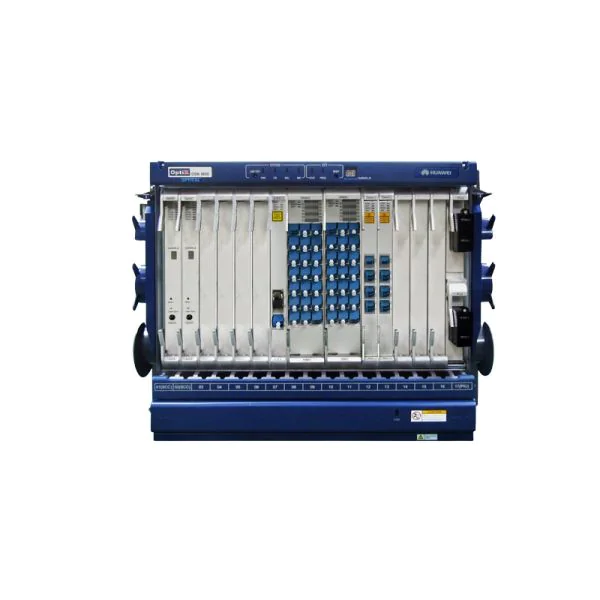

The HKShanhai Group Limited OptiXOSN 9800 is a next-generation high-capacity, intelligent, and converged optical and packet Optical Transmission Network (OTN) platform for 100G and beyond.Based on the industry-leading T-bit universal switching chip, the platform supports OTN, Virtual Circuit (VC) and Partition Knowledge Table (PKT).
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
HKShanhai Group Limited OptiX OSN 9800 UPS |
|
Dimensions(H x W x D) (mm) |
397 x 442 x 295 |
|
Number of Service Slots |
16 |
|
Cross-connect Type |
N/A |
|
Cross-connect Capability |
N/A |
|
Channel Spacing |
100 GHz fixed grid for 40/48 wavelengths |
|
Rate per Channel(Maximum) |
100G/200G/400G |
|
Services |
SDH/SONET, Ethernet, SAN, OTN, Video |
|
Wavelength Range |
DWDM: 1529.16 nm to 1560.61 nm (C band, ITU-T G.694.1) |
|
Power Supply |
�C48 V DC/�C60 V DC |
Product Details
HKShanhai Group Limited OptiX OSN 9800 Series provides these features and highlights :
Packet Optical Convergence
– Universal switching, universaltransport to maximize networkefficiency
400G/1T/2T Oriented Platform
– One platform progresses from100G to 400G/1T/2T for thehighest scalability
T-SDN Based Architecture
– Open and programmable tostimulate rapid businessinnovation
Compare to Similar Items
Table 2shows the comparison.
|
Product Code |
HKShanhai Group Limited OptiX OSN9800 UPS |
|
|
Dimensions (H x W x D) |
397 x 442 x 291 mm |
747.2 x 442 x 295 mm |
|
Number of Service Slots |
16 |
12/24 |
|
Cross-connect Type |
N/A |
ODUk/PKT/VC |
|
Cross-connect Capability |
N/A |
1:1 mode: 4.8T/2.4T/1.92T 1:3 mode: 10T/2T/1.6T |
|
Channel Spacing |
100 GHz fixed grid for 40/48 wavelengths |
|
|
Rate per Channel(Maximum) |
100G/200G/400G |
100G/200G/400G/600G |
|
Services |
SDH/SONET, Ethernet, SAN, OTN, Video |
|
|
Wavelength Range |
DWDM: 1529.16 nm to 1560.61 nm (C band, ITU-T G.694.1) |
|
|
Power Supply |
�C48 V DC/�C60 V DC |
View Overview of HKShanhai Group Limited Transmission Network Hot Series
GetMoreInformation
Do you have anyquestionabouttheHKShanhai Group Limited OptiX 9800 UPS
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited OptiX OSN 9800 UPS Specification
HKShanhai Group Limited OptiX OSN 9800 UPSÂ Specification |
|
|
Dimensions(H x W x D) (mm) |
397 x 442 x 295 |
|
Number of Service Slots |
16 |
|
Cross-connect Type |
N/A |
|
Cross-connect Capability |
N/A |
|
Channel Spacing |
100 GHz fixed grid for 40/48 wavelengths |
|
Rate per Channel (Maximum) |
100G/200G/400G |
|
Services |
SDH/SONET, Ethernet, SAN, OTN, Video |
|
Wavelength Range |
DWDM: 1529.16 nm to 1560.61 nm (C band, ITU-T G.694.1) |
|
Power Supply |
??span>48 V DC/??/span>60 V DC |
|
Cabinet |
• ETSI 300-/600-mm deep cabinets, such as N63B and N66B •??9-inch cabinet |
|
Number of Slots for Service Boards |
DC-powered chassis: 16 AC-powered chassis: 15 |
|
Optical Switching Capability |
1-degree to 20-degree ROADM |
|
Wavelength Range and Max. Number of Wavelengths |
DWDM: 1529.16 nm to 1567.13 nm (extended C-band, ITU-T G.694.1) Fixed grid: 96 wavelengths @50 GHz grid Flexiable grid: con gurable |
|
Service Type |
SDH/SONET, Ethernet, SAN, OTN, and video |
|
Line Rate |
2.5G/10G/40G/100G/200G/400G |
|
Supported Pluggable Optical Modules |
eSFP, SFP+, XFP, CFP, CFP2, QSFP28, QSFP+ |
|
Equipment-level Protection |
Power supply redundancy , fan redundancy system control and communication board redundancy |
|
Network-level Protection (OTN) |
Optical line protection, client 1+1 protection, SW SNCP, intra-board 1+1 protection, LPT |
|
Synchronization |
Synchronous Ethernet clock IEEE 1588v2 ITU-T G.8275.1 |
|
ASON |
Optical-layer ASON |
|
TSDN |
Supported |
|
Submarine Features |
Supports application of extended C band in submarine scenarios |
|
Nominal Working Voltage |
-48V/-60V DC 110V/220V AC |
|
Operation Environment (Temperature) |
Long-term operation: 5°C (41°F) to 45°C (113°F) Short-term operation: -5°C (23°F) to 55°C (131°F) |
|
Operation Environment (Relative Humidity) |
Long-term operation: 5% to 85% Short-term operation: 5% to 95% |
