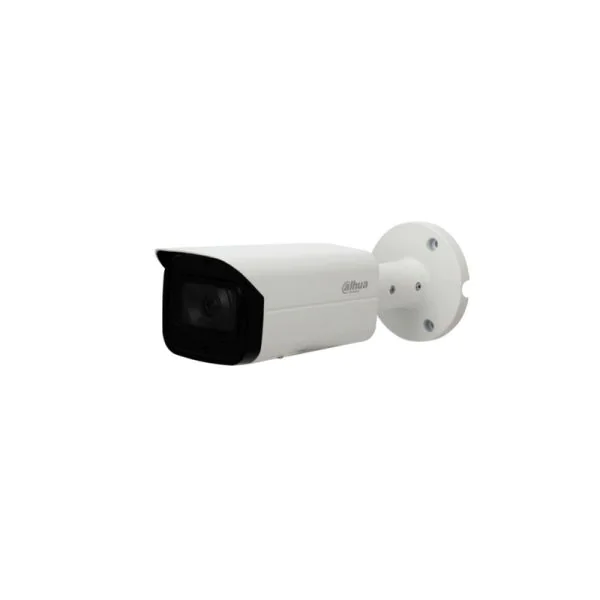

The Dahua IPC-HFW4231T-S-S4 is a 2MP WDR IR Mini Bullet Network Camera designed for high-quality surveillance and monitoring. With advanced features such as Wide Dynamic Range (WDR) and IR LEDs, this camera ensures clear and reliable images in varying lighting conditions. Ideal for both indoor and outdoor environments, this compact yet powerful camera is perfect for enhancing security.
Quick Spec
| Resolution | 2MP |
| Lens | 2.8mm fixed |
| IR Distance | Up to 30m |
| WDR | 120dB |
| Ingress Protection | IP67 |
Product Features
- 2 Megapixel progressive scan CMOS
- Built-in IR LEDs with a range of up to 30 meters
- Wide Dynamic Range (WDR) of 120dB
- Weather-resistant with IP67 rating
- Compact design suitable for various installation environments
Product Applications
- Commercial Buildings: Enhance the security of entrances, exits, and corridors with 24/7 video surveillance.
- Residential Areas: Monitor and secure your home with clear and reliable footage, day and night.
- Retail Stores: Keep an eye on customer behavior and prevent theft with detailed video monitoring.
Supported Options
| Mounting Bracket | PFB203W |
| Junction Box | PFM320D |
| Pole Mount | PFM321 |
Compare to Similar Items
| Model | Difference |
| IPC-HFW1230S | 1MP resolution, no WDR |
| IPC-HFW1431S | 4MP resolution, lower IR distance |
| IPC-HFW2231T-ZS | 2MP, motorized lens |
Get more information
For further details about the Dahua IPC-HFW4231T-S-S4, including price and availability, please contact us through Live Chat or at sales@router-switch.com. Check “Dahua IPC-HFW4231T-S-S4 price” and “IPC-HFW4231T-S-S4 datasheet”, buy “Dahua IPC-HFW4231T-S-S4” with the best price and fast shipping. Free Live Chat is supported.
Dahua HFW4231T-S-S4 Specification
IPC-HFW4231T-S-S4 Specifications |
|
| Brand | Dahua |
| Model | IPC-HFW4231T-S-S4 |
| Type | 2MP WDR IR Mini Bullet Network Camera |
| Image Sensor | 1/2.8″ 2 Megapixel progressive scan CMOS |
| Effective Pixels | 1920 x 1080 |
| Minimum Illumination | 0.009 Lux@F2.0 (Color), 0 Lux@F2.0 (IR on) |
| IR Distance | Up to 80m (262ft) |
| Day/Night | Auto(ICR) / Color / B/W |
| WDR | 120dB |
| Lens Type | Fixed lens / Fixed iris |
| Focal Length | 2.8mm, 3.6mm, 6mm |
| Aperture | F2.0 |
| Angle of View | 112�� (2.8mm), 87�� (3.6mm), 52�� (6mm) |
| Video Compression | H.265, H.264, MJPEG |
| Resolution | 1080P (1920��1080), 1.3M (1280��960), 720P (1280��720) |
| Frame Rate | Main Stream: 1080P/1.3M/720P (1 ~ 25/30fps) |
| Network Protocols | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, NTP, DHCP, DNS, PPPoE, IPv4/v6, QoS, FTP |
| Ingress Protection | IP67 |
| Operating Conditions | -40��C ~ +60��C (-40��F ~ +140��F) / Less than 95% RH |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | Max 5.5W (12V DC, IR on), Max 7.5W (PoE, IR on) |
