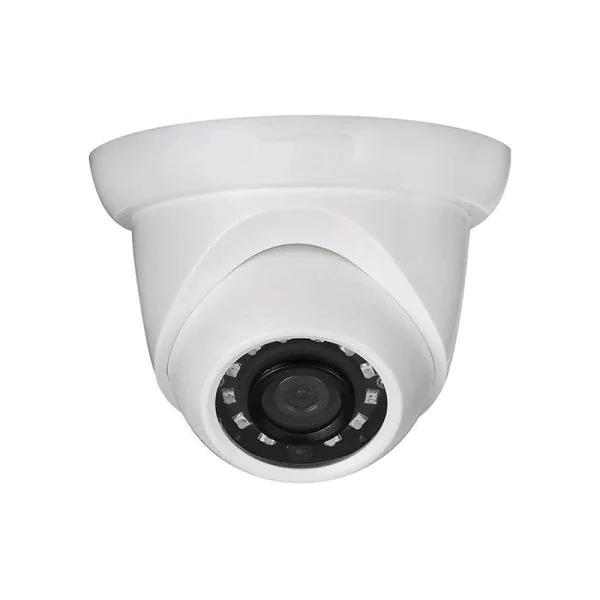

The Dahua IPC-HDW1431S-S4 is a 4MP WDR IR Eyeball Network Camera designed for advanced surveillance needs. Its high-quality Wide Dynamic Range (WDR) technology ensures clarity in both bright and dark areas, making it ideal for security monitoring in various environments. Equipped with infrared capabilities, this camera provides exceptional night vision, enhancing security day and night.
Quick Spec
| Resolution | 4MP |
| WDR | 120 dB |
| IR Distance | Up to 30 meters |
| Lens | 2.8mm |
| Power | 12V DC/PoE |
Product Features
- 4 Megapixel camera with high-resolution imaging.
- Wide Dynamic Range (WDR) at 120 dB for clear images in varying lighting conditions.
- Infrared night vision up to 30 meters.
- 2.8mm fixed lens for wide-angle viewing.
- Supports both 12V DC and Power over Ethernet (PoE) for flexible power options.
Product Applications
- Retail Shops: Monitor store activities and prevent theft.
- Office Buildings: Enhance security in corridors and entrances.
- Residential Areas: Provide comprehensive home surveillance.
Supported Options
| Mount Bracket | PFB203W |
| Junction Box | PFA130-E |
| PoE Switch | PFS3110-8P-96 |
Compare to Similar Items
| Model | Differences |
| IPC-HDW1230T1-S4 | Lower resolution (2MP) and no WDR |

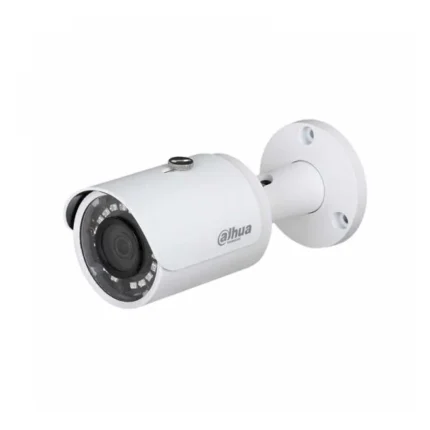

| IPC-HFW1431S-S4 | Different form factor (bullet camera) |
| IPC-HDW2431T-AS-S2 | Smaller form factor and lower IR distance |
Get more information
For further information about the Dahua IPC-HDW1431S-S4 and its pricing, contact us through Live Chat or email us at sales@router-switch.com. Check Dahua IPC-HDW1431S-S4 price and IPC-HDW1431S-S4 datasheet, buy Dahua IPC-HDW1431S-S4 with best price and fast shipping. Free Live Chat support is available.
Dahua HDW1431S-S4 Specification
IPC-HDW1431S-S4 Specifications |
|
| Camera Type | 4MP WDR IR Eyeball Network Camera |
| Sensor | 1/3�� 4Megapixel progressive CMOS |
| Effective Pixels | 2688(H) x 1520(V) |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Frame Rate | Main Stream: 4MP (1~20fps), 3MP/1080P/1.3MP/720P (1~25/30fps) |
| Day/Night | ICR |
| Min. Illumination | 0.03Lux/F2.0 (Color), 0Lux/F2.0 (IR on) |
| IR Distance | Up to 30m |
| Lens Type | Fixed |
| Focal Length | 2.8mm, 3.6mm |
| Field of View | H: 97��, V: 54�� (2.8mm), H: 78��, V: 42�� (3.6mm) |
| S/N Ratio | More than 50dB |
| Audio Interface | 1/1 channel In/Out |
| Ethernet | RJ-45 (10/100Base-T) |
| Storage | Micro SD card, up to 128GB |
| Operating Conditions | -30��C ~ +60��C |
| Power Supply | DC12V, PoE (IEEE 802.3af) |
| Power Consumption | Max 6.7W |
| Ingress Protection | IP67 |
| Dimensions | ��109.9mm x 81mm |
| Net Weight | 360g |
