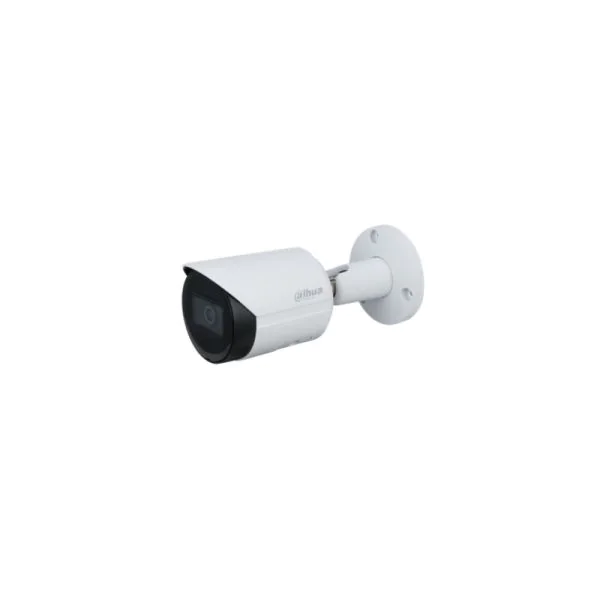

IPC-HFW2230S-S-S2,Dahua 2MP IR Bullet Network Camera, with upgraded H.265 encoding technology, Dahua Lite series camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colorful image in the environment of low illumination.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
IPC-HFW2230S-S-S2 |
|
Image Sensor |
1/2.7”2Megapixel progressive CMOS |
|
Effective Pixels |
1920 (H) x1080 (V) |
|
ROM |
128 MB |
|
RAM |
128 MB |
|
Electronic Shutter Speed |
Auto/Manual 1/3 s�C1/100000 s |
|
Minimum Illumination |
0.005 Lux@F1.6 |
|
Casing |
Metal |
|
Dimensions |
166.2 mm x��70 mm (6.54″ x��2.76″) |
Product Details
TheIPC-HFW2230S-S-S2 provides these features:
* 2MP, 1/2.7”CMOS image sensor, low illuminance, high image definition
* Outputs 2MP (1920 x 1080)@25/30 fps
* H.265 codec, high compression rate, ultra-low bit rate
* Built-in IR LED, max IR distance: 30 m
* ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
* Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
* Intelligent detection: Intrusion, tripwire
* Abnormality detection: Motion detection, video tampering, no SD card,SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
* Supports max. 256 GB Micro SD card
* 12V DC/POE power support
* IP67 protection
Compare to Similar Items
Table 2shows the comparison.
|
Product Code |
IPC-HFW2230S-S-S2 |
|
|
Image Sensor |
1/2.7”2Megapixel progressive CMOS |
1/3”4Megapixel progressive CMOS |
|
Effective Pixels |
1920 (H) x1080 (V) |
2688 (H) x1520 (V) |
|
Minimum Illumination |
0.005 Lux@F1.6 |
0.008 Lux@F1.6 |
|
Close Focus Distance |
2.8 mm: 0.6 m (1.97 ft) 3.6 mm: 1.1 m (3.61 ft) |
2.8 mm: 0.9 m (2.95 ft) 3.6 mm: 1.6 m (3.61 ft) |
|
Video Frame Rates |
Main stream: 1920 x1080 (1 fps-25/30 fps) Sub stream: 704 x576 (1 fps-25 fps) 704 x480 (1 fps-30 fps) |
Main stream: 2688 x1520 (1 fps-20 fps) 2560 x1440 (1 fps-25/30 fps) Sub stream: 704 x576 (1 fps-25 fps) 704 x480 (1 fps-30 fps) |
|
Resolution |
1080p (1920 x1080); 1.3M (1280 x960); 720p (1280 x720); D1 (704 x576/704 x480); VGA (640 x480); CIF (352 x288/352 x240) |
2688 x1520 (2688 x1520); 2560 x1440 (2560 x1440);2304 x1296 (2304 x1296); 1080p (1920 x1080);1.3M (1280 x960); 720p (1280 x720); D1 (704 x576/704 x480); VGA (640 x480); CIF (352 x288/352 x240) |
|
WDR |
DWDR |
120 dB |
|
Power Supply |
12V DC/PoE (802.3af) |
12V DC/PoE (802.3af) |
|
Power Consumption |
GetMoreInformation
Do you have anyquestionabouttheIPC-HFW2230S-S-S2
Contact us now via Live Chat or sales@router-switch.com.
Dahua HFW2230S-S-S2 Specification
IPC-HFW2230S-S-S2Â Specification |
|||||
|
Camera |
|||||
|
Image Sensor |
1/2.7” 2Megapixel progressive CMOS |
||||
|
Effective Pixels |
1920 (H) x 1080 (V) |
||||
|
ROM |
128 MB |
||||
|
RAM |
128 MB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s??/span>1/100000 s |
||||
|
Minimum Illumination |
0.005 Lux@F1.6 |
||||
|
IR Distance |
30 m (98.43 ft) |
||||
|
IR On/Off Control |
Auto/Manual |
||||
|
IR LEDs |
1 |
||||
|
Pan/Tilt/Rotation Range  |
Pan: 0°??/span>360° Tilt: 0°??/span>90° Rotation: 0°??/span>360° |
||||
|
Lens |
|||||
|
Lens Type |
Fixed-focal |
||||
|
Mount Type |
M12 |
||||
|
Focal Length |
2.8 mm 3.6 mm |
||||
|
Max. Aperture |
F1.6 F1.6 |
||||
|
Field of View  |
2.8 mm: Pan: 110.0° Tilt: 59.0° Diagonal: 132.0° 3.6 mm: Pan: 91.0° Tilt: 48.0° Diagonal: 109.0° |
||||
|
Iris Type |
Fixed aperture |
||||
|
Close Focus Distance |
2.8 mm: 0.6 m (1.97 ft) 3.6 mm: 1.1 m (3.61 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
2.8 mm |
37.3 m (122.38 ft) |
14.9 m (48.88 ft) |
7.5 m (24.61 ft) |
3.7 m (12.14 ft) |
|
|
3.6 mm |
53.3 m (174.87 ft) |
21.3 m (96.88 ft) |
10.7 m (35.10 ft) |
5.3 m (17.39 ft) |
|
|
Smart event |
|||||
|
General IVS Analytics |
Tripwire; intrusion |
||||
|
Video |
|||||
|
Video Compression |
H.265; H.264; H.264B; MJPEG |
||||
|
Smart Codec |
Yes |
||||
|
Video Frame Rates |
Main stream: 1920 x 1080 (1 fps-25/30 fps) Sub stream: 704 x 576 (1 fps-25 fps) 704 x 480 (1 fps-30 fps) |
||||
|
Streaming Capability |
2Â Streams |
||||
|
Resolution |
1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720);  D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240) |
||||
|
Bit Rate Control |
CBR/VBR |
||||
|
Bit Rate |
H.264: 32 Kbps??/span>6144 Kbps H.265: 12 Kbps??/span>6144 Kbps |
||||
|
Day/Night |
Auto(ICR)/Color/B/W |
||||
|
BLC |
Yes |
||||
|
HLC |
Yes |
||||
|
WDR |
DWDR |
||||
|
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
||||
|
Gain Control |
Auto / Manual |
||||
|
Noise Reduction |
3D DNR |
||||
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||
|
Region of Interest(RoI) |
Yes (4 areas) |
||||
|
Smart IR |
Yes |
||||
|
Image Rotation |
0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower.) |
||||
|
Mirror |
Yes |
||||
|
Privacy Masking |
4 areas |
||||
|
Network |
|||||
|
Ethernet |
RJ-45 (10/100 Base-T) |
||||
|
Protocol  |
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP;RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS;QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE;802.1x; Bonjour |
||||
|
Interoperability |
ONVIF(Profile S/Profile G/Profile T);CGI; P2P; Milestone; Genetec |
||||
|
User/Host |
20 |
||||
|
Edge Storage |
Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
||||
|
Browser  |
IE Chrome Firefox |
||||
|
Management Software |
Smart PSS; DSS; DMSS |
||||
|
Mobile Phone |
IOS; Android |
||||
|
Certifications |
|||||
|
Certifications  |
CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
||||
|
Power |
|||||
|
Power Supply |
12V DC/PoE (802.3af) |
||||
|
Power Consumption |
< 4.6W |
||||
|
Environmental |
|||||
|
Operating Conditions |
-40°C to +60°C (-40°F to +140°F)/less than ??95% RH |
||||
|
Storage Temperature |
-40°C to +60°C (-40°F to +140°F) |
||||
|
Protection Grade |
IP67 |
||||
|
Construction |
|||||
|
Casing |
Metal |
||||
|
Dimensions |
166.2 mm x Φ70 mm (6.54″ x Φ2.76″) |
